National Instruments PXI-8232 PXI GPIB Instrument Control Module with Gigabit Ethernet Port and Compact Single-Slot Design for OEM Applications

National Instruments PXI-8232 PXI GPIB Instrument Control Module with Gigabit Ethernet Port and Compact Single-Slot Design for OEM Applications
National Instruments PXI-8232 PXI GPIB Instrument Control Module with Gigabit Ethernet Port and Compact Single-Slot Design for OEM Applications National Instruments PXI-8232 PXI GPIB Instrument Control Module with Gigabit Ethernet Port and Compact Single-Slot Design for OEM Applications National Instruments PXI-8232 PXI GPIB Instrument Control Module with Gigabit Ethernet Port and Compact Single-Slot Design for OEM Applications National Instruments PXI-8232 PXI GPIB Instrument Control Module with Gigabit Ethernet Port and Compact Single-Slot Design for OEM Applications

Büyük resim :  National Instruments PXI-8232 PXI GPIB Instrument Control Module with Gigabit Ethernet Port and Compact Single-Slot Design for OEM Applications

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: National Instruments
Model numarası: PXI-8232
Ödeme & teslimat koşulları:
Min sipariş miktarı: Bir
Fiyat: $10,000/sets >=1 sets
Ambalaj bilgileri: Standart ambalaj
Teslim süresi: Minimum sipariş miktarı için teslimat süresi ≤ 30 gün
Ödeme koşulları: T/t ‌l/c
Yetenek temini: 100 adet/gün
İletişim Şimdi konuşalım.

National Instruments PXI-8232 PXI GPIB Instrument Control Module with Gigabit Ethernet Port and Compact Single-Slot Design for OEM Applications

Açıklama
Garanti: 3 ay Özelleştirilmiş Destek: Oem
Menşe yeri: Amerikan brand name: National Instruments
Model numarası: PXI-8232
Vurgulamak:

Gigabit Ethernet Port PXI GPIB Instrument Control Module

,

Compact Single-Slot Design PXI-8232 Module

,

American Origin IEEE 488 Controller

Customized National Instruments PXI-8232 PXI GPIB Instrument Control Module for OEM Applications
The National Instruments PXI-8232 is a versatile PXI GPIB instrument control module combining IEEE 488 and Gigabit Ethernet capabilities in a compact single-slot form factor. This module enables seamless integration of both PXI and non-PXI systems.
Key Features
  • Combination Gigabit Ethernet port and powerful GPIB controller in single module
  • Intel 82540EM Gigabit Ethernet controller with transfer rates up to 1,000 Mbit/s
  • Compatible with 10BASE T and 100BASE TX fast Ethernet networks
  • Integrated Ethernet port functions as EtherCAT master when using NI-Industrial Communications for EtherCAT
  • Includes NI 488.2 driver software license for reliable third-party instrument synchronization
  • Standard RJ-45 Ethernet and 24-pin IEEE 488 connectors included
  • HS488 support enables transfer speeds up to 7.7 MB/s
  • Automatic cable polarity detection
  • Single-slot PXI module saves valuable chassis space
Technical Specifications
Parameter Specification
Part Numbers 781753-01 (Windows/LV RT), 778658-01 (Windows/LV RT 2009 and earlier), 778659-01 (Windows NT/ME/96), 189140D-02L
Supported Standards IEEE 488.1, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power Consumption Typical: 917 mA, Maximum: 1500 mA
Physical Dimensions 3.9 x 6.3 inches
Operating Temperature 0°C to 55°C
Storage Temperature -40°C to 70°C
Humidity Range 10% to 90% RH (operating), 5% to 95% RH (storage)
Vibration Resistance 0.31 grms (operating), 2.46 grms (non-operating), 5 Hz to 500 Hz
Safety Standards IEC 60068-2-27, IEC 60068-2-64
Driver Development Kit No
Supported OS Real-time OS, Windows
Ethernet Port Yes
Product Images

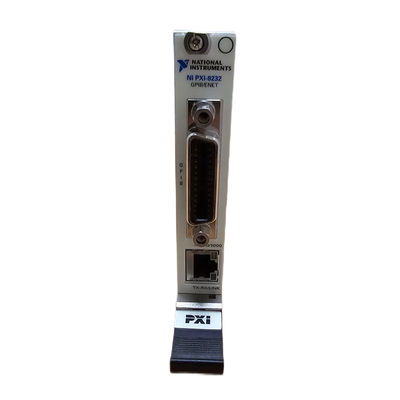

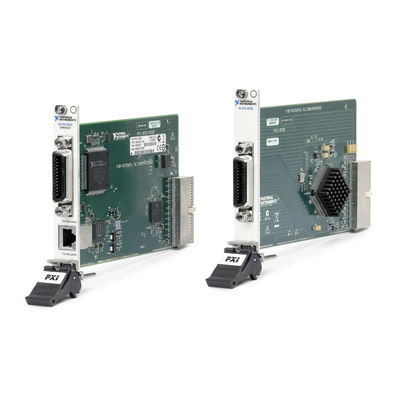

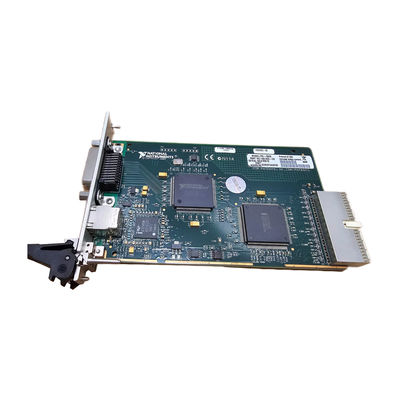

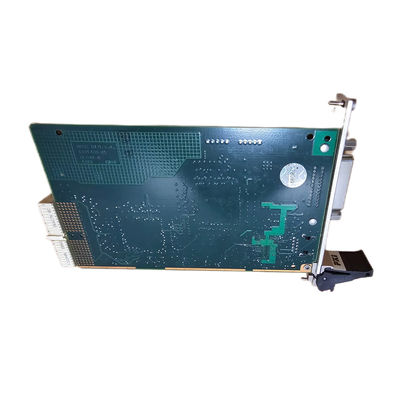

National Instruments PXI-8232 PXI GPIB Instrument Control Module with Gigabit Ethernet Port and Compact Single-Slot Design for OEM Applications 0 National Instruments PXI-8232 PXI GPIB Instrument Control Module with Gigabit Ethernet Port and Compact Single-Slot Design for OEM Applications 1 National Instruments PXI-8232 PXI GPIB Instrument Control Module with Gigabit Ethernet Port and Compact Single-Slot Design for OEM Applications 2 National Instruments PXI-8232 PXI GPIB Instrument Control Module with Gigabit Ethernet Port and Compact Single-Slot Design for OEM Applications 3
