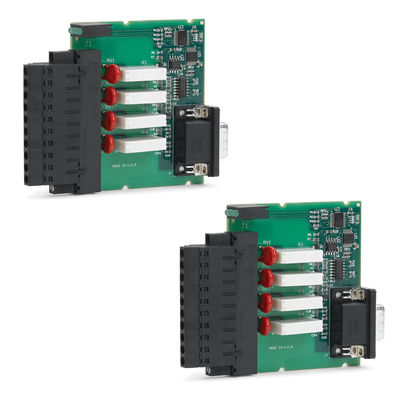

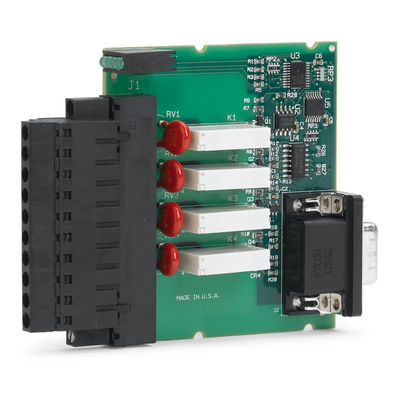

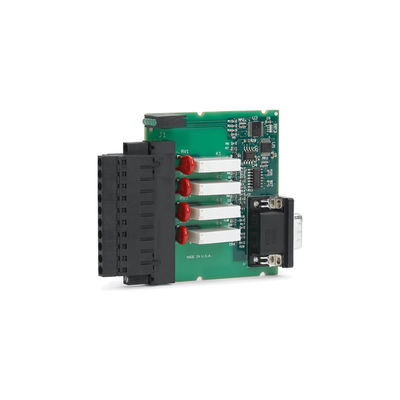

National Instruments SbRIO-9482 C Series Relay Output Module with 4 SPST Relay Channels 30 VDC 2.5A Switching Current and 250 VAC Switching Voltage

National Instruments SbRIO-9482 C Series Relay Output Module with 4 SPST Relay Channels 30 VDC 2.5A Switching Current and 250 VAC Switching Voltage
National Instruments SbRIO-9482 C Series Relay Output Module with 4 SPST Relay Channels 30 VDC 2.5A Switching Current and 250 VAC Switching Voltage National Instruments SbRIO-9482 C Series Relay Output Module with 4 SPST Relay Channels 30 VDC 2.5A Switching Current and 250 VAC Switching Voltage National Instruments SbRIO-9482 C Series Relay Output Module with 4 SPST Relay Channels 30 VDC 2.5A Switching Current and 250 VAC Switching Voltage

Großes Bild :  National Instruments SbRIO-9482 C Series Relay Output Module with 4 SPST Relay Channels 30 VDC 2.5A Switching Current and 250 VAC Switching Voltage

Produktdetails:
Herkunftsort: CHINA
Markenname: National Instruments
Modellnummer: SBRIO-9482
Zahlung und Versand AGB:
Min Bestellmenge: Eins
Preis: $10,100/sets >=1 sets
Verpackung Informationen: Standardverpackung
Lieferzeit: Lieferzeit für Mindestbestellmenge ≤ 30 Tage
Zahlungsbedingungen: T/t ‌l/c
Versorgungsmaterial-Fähigkeit: 100 Einheiten/Tag
Kontakt Plaudern Sie Jetzt

National Instruments SbRIO-9482 C Series Relay Output Module with 4 SPST Relay Channels 30 VDC 2.5A Switching Current and 250 VAC Switching Voltage

Beschreibung
Garantie: 3 Monate individuelle Unterstützung: OEM
Herkunftsort: amerikanisch brand name: National Instruments
Modellnummer: SBRIO-9482
Hervorheben:

4 SPST Relay Channels Relay Output Module

,

30 VDC 2.5A Switching Current C Series Module

,

250 VAC Switching Voltage NI SbRIO-9482

Customized National Instruments SbRIO-9482 C Series Relay Output Module for Your Business Needs
The National Instruments sbRIO-9482 C Series Relay Output Module (Part Number: 783000-01) is a precision industrial solution featuring 4 channels with SPST relays. Designed for critical manufacturing and process applications, this module ensures safety by defaulting to OFF state for all channels upon power-up.
Key Features
  • 4 digital output channels with SPST electromagnetic relays
  • Screw terminal front connection for secure wiring
  • Default power-up state sets all channels to OFF for safety
  • Designed for precision industrial applications
  • Compatible with CompactRIO hardware platform
Performance Specifications
  • Operates at 0.2Ω resistance with maximum 2.5A switching current at 30 VDC (per channel)
  • 1.5A switching current at 30 VDC when all channels are active
  • Switching rate capability of 1 operation per second
  • Relay response: 10ms release time, 15ms operate time
  • Mechanical lifespan: 20,000,000 operations
  • Electrical lifespan: 100,000 operations
  • Power consumption: 580 mW (active mode), 10 mW (sleep mode)
Technical Specifications
Specification Value
Maximum AC Switching Voltage 250 V
Front Connection Type Screw Terminal
Relay Type Electromagnetic Mechanical
Number of Digital Output Channels 4
Conformal Coating None
Maximum DC Switching Voltage 60 V
Sealing None
Supported Hardware Platform CompactRIO
National Instruments SbRIO-9482 C Series Relay Output Module with 4 SPST Relay Channels 30 VDC 2.5A Switching Current and 250 VAC Switching Voltage 0
