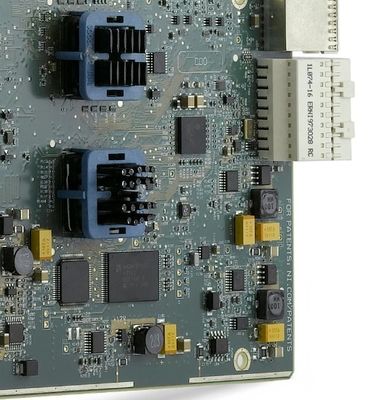

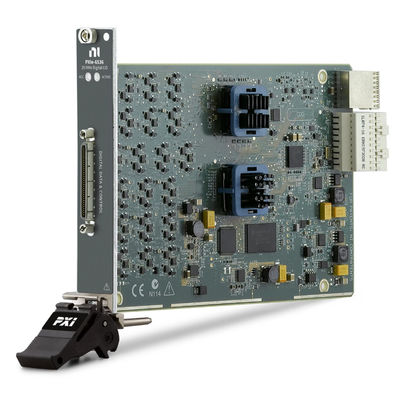

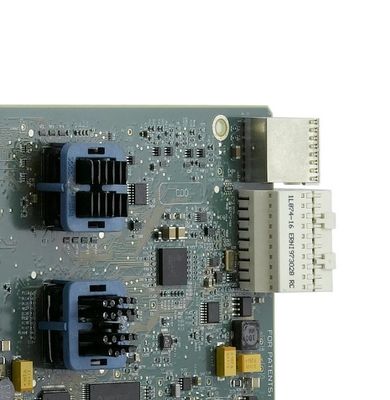

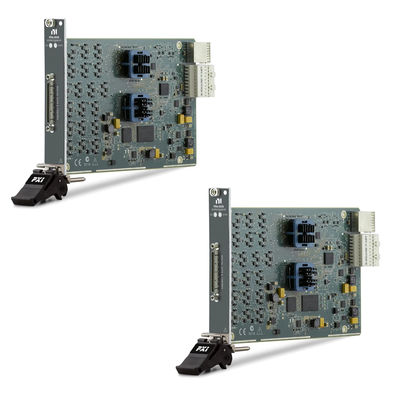

National Instruments PXIe-6536 PXI Digital I/O Module with 25 MHz Clock Rate 100 MB/s Data Rate and PXI Express Bus Connector

National Instruments PXIe-6536 PXI Digital I/O Module with 25 MHz Clock Rate 100 MB/s Data Rate and PXI Express Bus Connector
National Instruments PXIe-6536 PXI Digital I/O Module with 25 MHz Clock Rate 100 MB/s Data Rate and PXI Express Bus Connector National Instruments PXIe-6536 PXI Digital I/O Module with 25 MHz Clock Rate 100 MB/s Data Rate and PXI Express Bus Connector National Instruments PXIe-6536 PXI Digital I/O Module with 25 MHz Clock Rate 100 MB/s Data Rate and PXI Express Bus Connector National Instruments PXIe-6536 PXI Digital I/O Module with 25 MHz Clock Rate 100 MB/s Data Rate and PXI Express Bus Connector

Gambar besar :  National Instruments PXIe-6536 PXI Digital I/O Module with 25 MHz Clock Rate 100 MB/s Data Rate and PXI Express Bus Connector

Detail produk:
Tempat asal: CINA
Nama merek: National Instruments
Nomor model: PXIE-6536
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: Satu
Harga: $10,000/sets >=1 sets
Kemasan rincian: Kemasan Standar
Waktu pengiriman: Waktu pengiriman untuk jumlah pesanan minimum ≤ 30 hari
Syarat-syarat pembayaran: T/t ‌l/c
Menyediakan kemampuan: 100 unit/hari
Kontak bicara sekarang

National Instruments PXIe-6536 PXI Digital I/O Module with 25 MHz Clock Rate 100 MB/s Data Rate and PXI Express Bus Connector

Deskripsi
Jaminan: 3 Bulan Dukungan yang disesuaikan: OEM
Tempat Asal: Amerika brand name: National Instruments
Nomor Model: PXIE-6536
Menyoroti:

25 MHz Clock Rate PXI Digital I/O Module

,

100 MB/s Data Rate PXIe-6536 Module

,

PXI Express Bus Connector Digital I/O Device

Customized Support for OEM Applications National Instruments PXIe-6536 PXI Digital I/O Module
Product Overview
The National Instruments PXIe-6536 PXI Digital I/O Module is a high-performance solution featuring 32 channels with 25 MHz clock rate and 100 MB/s transfer speed. This module (Part Number: 779988-01) enables synchronization with other NI PXIe-6536 modules through PXI trigger bus or RTSI bus, making it ideal for applications requiring extensive digital I/O lines.
Key Features
  • 32 bidirectional digital channels with flexible voltage support
  • High-speed data streaming at up to 200 MB/s
  • Integrated NI RAID array and controller for demanding applications
  • Compatible with SCC (Signal Conditioning Carrier) framework
  • PXI Express bus connector for high-performance applications
  • Supports 2.5V, 3.3V, and 5V TTL logic levels
Applications
The PXIe-6536 is designed for high-speed digital applications including LCD testing, wireless protocol development, ADC/DAC interface, and digital pattern capture. Its superior signal quality outperforms traditional digital I/O boards.
Technical Specifications
Specification Value
Bus Connector PXI Express
Current Drive (Single-ended) 32 mA
Digital I/O Logic Levels 2.5 V, 3.3 V, 5 V TTL
Bidirectional Channels 32
Digital Input Voltage Range -1 V to 6 V
Output Voltage Range 0 V to 5 V
Maximum Clock Rate 25 MHz
Signal Type Single-ended
SCC Compatibility
This digital I/O module can be used with SCC (Signal Conditioning Carrier), a front-end signal conditioning framework for data acquisition systems. The SCC framework supports up to 20 single- or dual-channel SCC modules for conditioning thermocouples and various sensors.
