CMW270 Wireless Connectivity Tester 70MHz-6GHz Wireless Network Analyzer

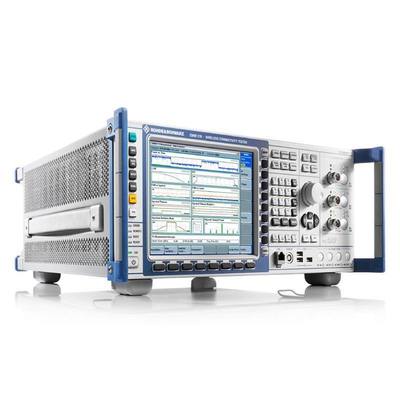

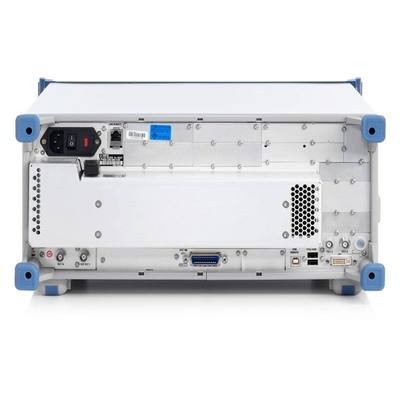

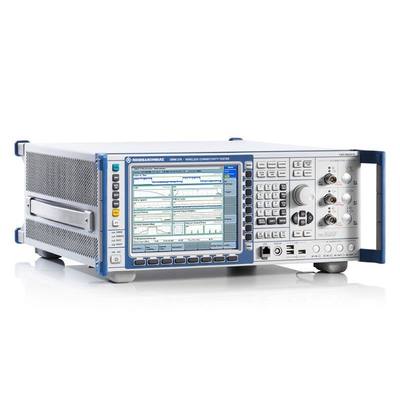

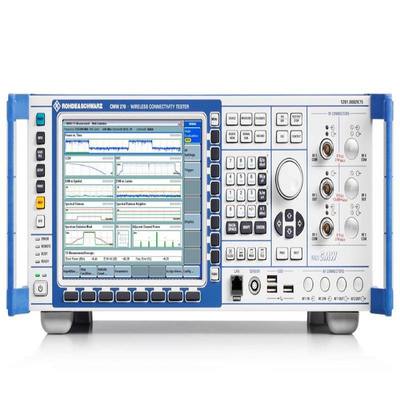

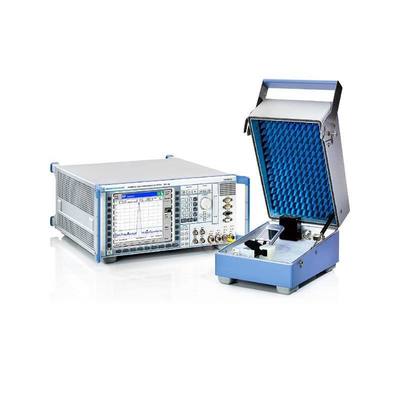

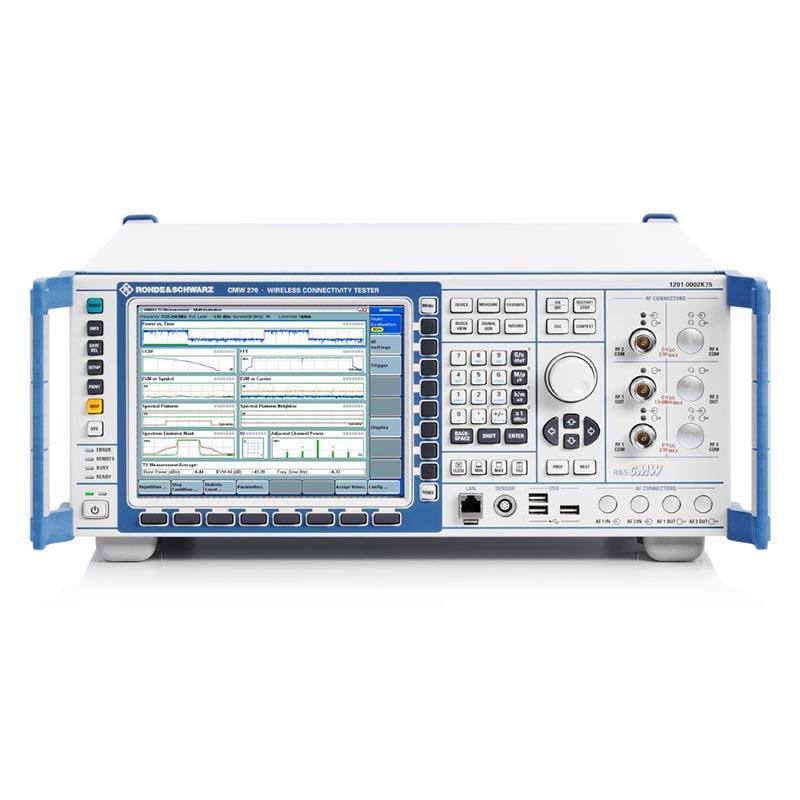

Large Image : CMW270 Wireless Connectivity Tester 70MHz-6GHz Wireless Network Analyzer

Product Details:

Place of Origin:	China
Brand Name:	Rohde & Schwarz
Model Number:	CMW270

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$5,000
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

CMW270 Wireless Connectivity Tester 70MHz-6GHz Wireless Network Analyzer

Description

Product Name:	Wireless Connectivity Tester	Model:	CMW270
Type:	Tester	Product Status:	Old
Frequency Range (R&S®CMW270):	70 MHz To 6 GHz	IF Bandwidth:	70 MHz
Highlight:	CMW270 Wireless Connectivity Tester , CMW270 Wireless Network Analyzer , 70MHz Wireless Connectivity Tester

R&S CMW270 Wireless Connectivity Tester Professional Solutions Supporting Non-cellular Technologies

Product Attributes

Attribute	Value
Product name	Wireless Connectivity Tester
Model	CMW270
Type	Tester
Product status	Old

Technical Specifications

Parameter	Specification
Frequency
Frequency range (R&S®CMW270)	70 MHz to 6 GHz
Max. frequency drift (R&S®CMW270 base unit)	±1 × 10^-6
With R&S®CMW-B690A option (OCXO extension)	±5 × 10^-8
With R&S®CMW-B690B option (highly stable OCXO extension)	±5 × 10^-9
RF Generator
RF output level range (continuous wave (CW) RF1 OUT, WiMAX™ band 1)	-130 dBm to +8 dBm
Output level uncertainty (in temperature range +20 °C to +35 °C no overranging output level >-120 dBm)	<0.6 dB (12-month calibration interval) <0.8 dB (24-month calibration interval)
IF bandwidth	70 MHz
RF Analyzer
RF input level range (continuous power (CW) RF1 COM, RF2 COM)	-84 dBm to +34 dBm
Level uncertainty (in temperature range +20 °C to +35 °C)	<0.5 dB (calibration interval 1 year) <0.7 dB (calibration interval 2 years)
