National Instruments FlexRIO Signal Generator Module AT-1212 1.25 GS/S Update Rate 2 AO Channels

Large Image : National Instruments FlexRIO Signal Generator Module AT-1212 1.25 GS/S Update Rate 2 AO Channels

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	AT-1212

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments FlexRIO Signal Generator Module AT-1212 1.25 GS/S Update Rate 2 AO Channels

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	AT-1212
Highlight:	AT-1212 FlexRIO Signal Generator Module , National Instruments AT-1212 , National Instruments FlexRIO Signal Generator Module

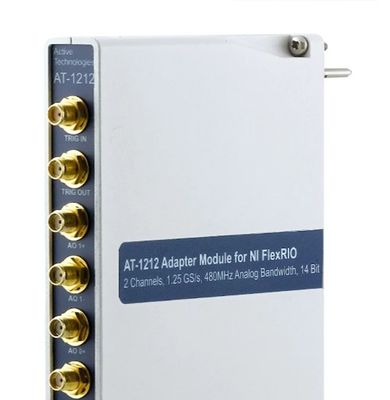

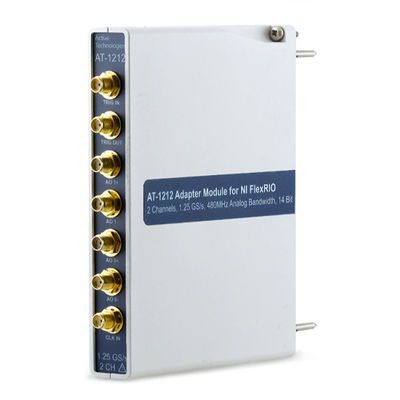

National Instruments AT-1212 FlexRIO Signal Generator Adapter Module

Customized OEM Support for Results and Performance

The National Instruments AT-1212 (Part Number: 782248-02) is a signal generator adapter module designed for FlexRIO systems. This DC-coupled, single-ended input module features a maximum update rate of 1.25 GS/s and is specifically engineered for FlexRIO applications.

Key Features

2 analog output (AO) channels for signal generation
14-bit analog output resolution with 480 MHz bandwidth
Programmable output range from -2V to +2V
Maximum update rate of 1.25 GS/s
Integrated clock generator with 25 MHz TCXO source
Designed for use with compatible FlexRIO FPGA modules (Kintex-7, Virtex-5)
Capable of generating complex waveforms

Technical Specifications

Parameter	Specification
Analog Output Channels	2
Output Voltage Range	-2 V to +2 V
Output Resolution	14-bit
Maximum Update Rate	1.25 GS/s
Analog Bandwidth	480 MHz
Compatible FPGA	Kintex-7, Virtex-5

Design Architecture

The AT-1212 module features a CLIP DESIGN based on 2 digital-to-analog converters (DACs) that control the analog output channels. The module includes 2 LVDS input ports, each consisting of 14 differential LVDS signals operating at half the DAC clock speed. The integrated clock generator provides necessary timing signals sourced from a 25 MHz TCXO. A microcontroller manages DAC parameters, controls multiplexer output, and ensures proper power-up sequencing.

Application Flexibility
The AT-1212's configurable parameters make it ideal for customized applications requiring complex signal generation. Its DC-coupled, single-ended input design provides reliable performance in demanding test environments.

Integration Benefits
Designed specifically for FlexRIO systems, the AT-1212 seamlessly integrates with compatible FPGA modules, offering high-speed signal generation capabilities for advanced test and measurement applications.
