National Instruments LV-222-555-442 PXI Avionics Multiprotocol Interface Module with 16 ARINC 429 Channels and 3 Months Warranty

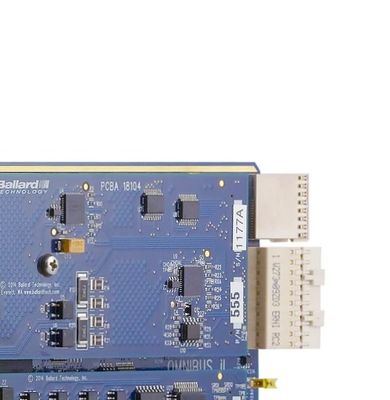

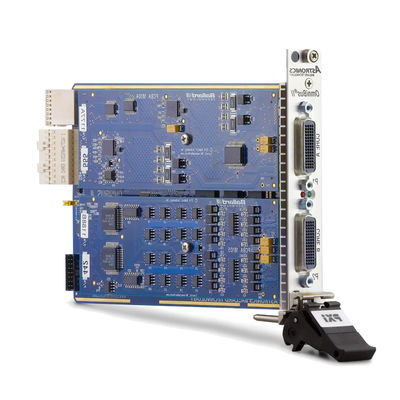

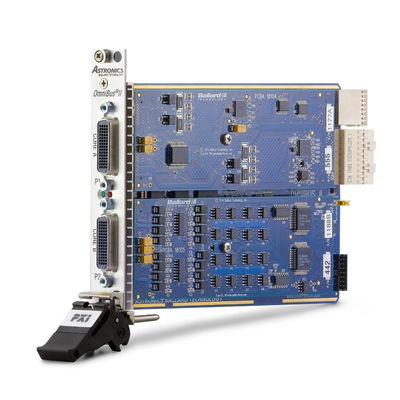

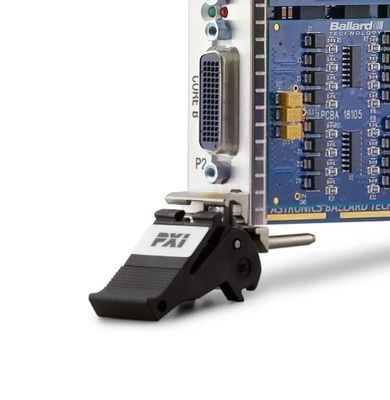

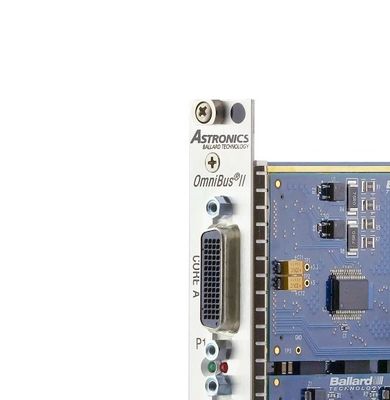

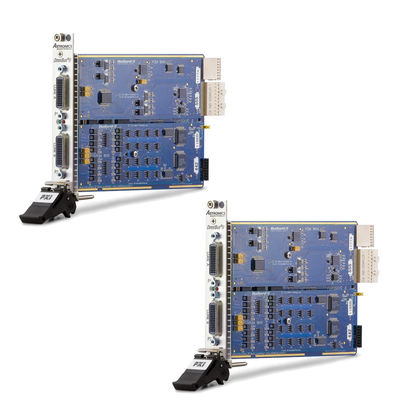

Large Image : National Instruments LV-222-555-442 PXI Avionics Multiprotocol Interface Module with 16 ARINC 429 Channels and 3 Months Warranty

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	LV-222-555-442

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments LV-222-555-442 PXI Avionics Multiprotocol Interface Module with 16 ARINC 429 Channels and 3 Months Warranty

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	LV-222-555-442	Frequency Range:	20hz ~ 20khz Is Divided Into 3 Frequency Bands,9kHz ~ 6GHz,250kHz~67GHz,15MHz 30MHz 400MHz 50MHz 60MHz,25MHz
Oem:	Available,YES,MOQ>100pcs,OEM	Weight:	6.4 Kg,3Kg,<28kg
Dimensions:	364(W)112(H)420(D)mm,215(W)mm109(H)mm44.5(D)mm,19417968 MM	Product Name:	High Voltage Gps Signal Generator,DDS MFG-2125 Function Generator,Arbitrary Signal Generator
Warranty:	2 Years,1 Year	Frequency Resolution:	0.00000001Hz,0.001Hz
Output Signal:	0-24mA/0-12V/,4-20mA	Power Supply:	AC 220* ( 1 10 % ) V 50* ( 1 5 % ) Hz,3.7V Battery
Ssb Phase Noise:	<-110dBc/Hz@1GHz,20KHz Carrier Offset(typical),0.001Hz	Frequency Accuracy:	±20ppm
Package:	Yes,Retail Package	Dimension:	804240mm,235mm110mm295mm
Display:	3.5-inch 480x320TFT LCD Screen,4 Inch TFT-LCD 480*320	Working Temp.:	0℃ ~+40℃
Square:	1μHz~30MHz	The Type Of Waveform:	Arbitrary Wave (including DC)
Display Size:	2.9 Inches & Under
Highlight:	National Instruments LV-222-555-442 , LV-222-555-442 PXI Module , LV-222-555-442 PXI Avionics Multiprotocol Interface Module

Customized OEM Support for National Instruments LV-222-555-442 PXI Avionics Multiprotocol Interface Module

Astronics Ballard Technology / National Instruments LV-222-555-442 PXI Avionics Multiprotocol Interface Module (Part Number: 784806-01) is a versatile interface module with unique multi-protocol support. This module provides configuration to control two widely used avionics data buses in your PXI system and is included in the Astronics OmniBus2 product portfolio.

Modular Design for Flexible Integration

The LV-222-555-442 PXI Avionics Multiprotocol Interface Module features a fully modular infrastructure, making it ideal for users with dynamic requirements or future expansion needs. You can replace either of the two existing interface modules with different modules as needed, while the base card or carrier module remains unchanged.

Key Specifications

16 ARINC 429 channels
2 MIL-STD-1553 channels (multifunctional)
Integrated binary system timer
IRIG circuit configurable as master or slave
16 bidirectional discrete I/O (8 per core)

Advanced Functionality

The LV-222-555-442's channels can simultaneously function as Bus Controller (BC), Remote Terminal (RT) (up to 32), and Monitor (MON) channels, supporting all MIL-STD-1553 message types.

IRIG Timing Capabilities

When operating as a slave, the IRIG timer locks to an externally generated IRIG signal, providing precise synchronization for avionics applications.

Key Features

2-channel (multifunctional) MIL-STD-1553 support
16-channel ARINC 429 interface
Modular design for future expansion
Precision timing with IRIG synchronization
Versatile discrete I/O capabilities
