National Instruments FlexRIO Adapter Module NI-5771 2 Channel 900MHz Bandwidth 3GS/S

Large Image : National Instruments FlexRIO Adapter Module NI-5771 2 Channel 900MHz Bandwidth 3GS/S

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	NI-5771

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments FlexRIO Adapter Module NI-5771 2 Channel 900MHz Bandwidth 3GS/S

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	NI-5771	Frequency Range:	20hz ~ 20khz Is Divided Into 3 Frequency Bands,9kHz ~ 6GHz,250kHz~67GHz,15MHz 30MHz 400MHz 50MHz 60MHz,25MHz
Oem:	Available,YES,MOQ>100pcs,OEM	Weight:	6.4 Kg,3Kg,<28kg
Dimensions:	364(W)112(H)420(D)mm,215(W)mm109(H)mm44.5(D)mm,19417968 MM	Product Name:	High Voltage Gps Signal Generator,DDS MFG-2125 Function Generator,Arbitrary Signal Generator
Warranty:	2 Years,1 Year	Frequency Resolution:	0.00000001Hz,0.001Hz
Output Signal:	0-24mA/0-12V/,4-20mA	Power Supply:	AC 220* ( 1 10 % ) V 50* ( 1 5 % ) Hz,3.7V Battery
Ce:	Yes,Test And Measurement	Ssb Phase Noise:	<-110dBc/Hz@1GHz,20KHz Carrier Offset(typical),0.001Hz
Frequency Accuracy:	±20ppm	Package:	Yes,Retail Package
Dimension:	804240mm,235mm110mm295mm	Display:	3.5-inch 480x320TFT LCD Screen,4 Inch TFT-LCD 480*320
Working Temp.:	0℃ ~+40℃	Square:	1μHz~30MHz
The Type Of Waveform:	Arbitrary Wave (including DC)	Display Size:	2.9 Inches & Under
Highlight:	National Instruments NI-5771 , NI-5771 FlexRIO Adapter Module , 2 Channel FlexRIO Adapter Module

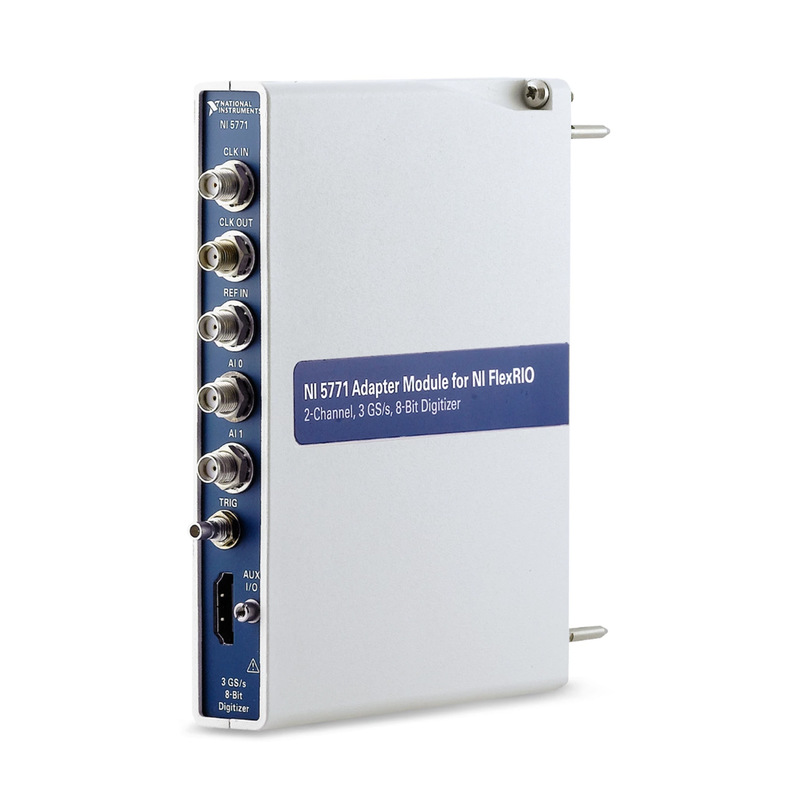

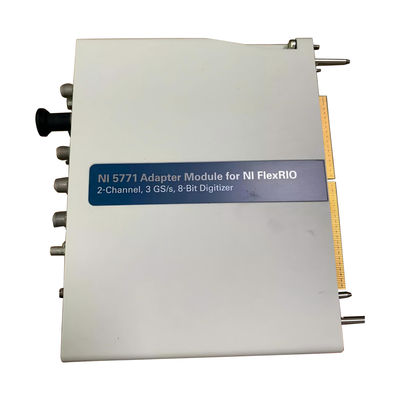

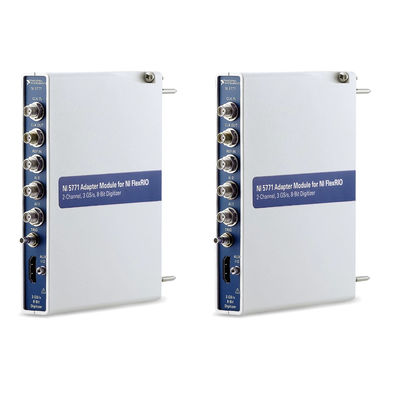

National Instruments 5771 FlexRIO Digitizer Adapter Module

Customized for OEM FlexRIO Applications

The National Instruments NI-5771 (Part Number: 781419-02) is a high-performance 2-Channel digitizer adapter module designed specifically for FlexRIO based systems. This professional-grade module delivers exceptional signal acquisition capabilities with 900 MHz bandwidth and 8-bit resolution.

Key Features

2-Channel configuration with 900 MHz bandwidth
8-bit resolution for precise signal acquisition
Flexible sampling rates: 3.0 GS/s (single channel) or 1.5 GS/s (dual channel)
Analog input voltage range: -0.675 V to 0.675 V
Compatible with Virtex-5 and Kintex-7 FPGAs
DC input coupling supported
Includes comprehensive LabVIEW FPGA example projects

Technical Specifications

Parameter	Specification
Part Number	781419-02
Input Channels	2 (SMA connectors)
Bandwidth	900 MHz
Resolution	8-bit
Sampling Rate	3.0 GS/s (1 channel) or 1.5 GS/s (2 channels)
Input Voltage Range	-0.675 V to 0.675 V
FPGA Compatibility	Virtex-5, Kintex-7
Clock	1.5 GHz VCXO onboard

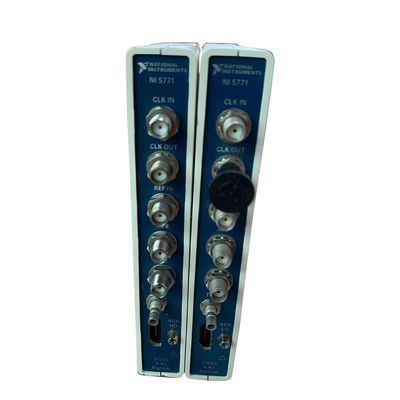

Connectors	2 SMA (AI), CLK IN/OUT, HDMI AUX I/O, SMB TRIG
Dimensions	12.9 * 2.0 * 12.1 cm
Weight	413 g

Additional Information

The NI-5771 features 12 bi-directional channels (4 PFI and 8 DIO) supporting 3.3V LVCMOS interface standard. The AUX I/O connector uses an HDMI form factor but is not an HDMI interface. Users can connect to front panel connectors using standard 50Ω coaxial shielded cables.
