Customized National Instruments NI-5783 FlexRIO Adapter Module with 100 MS/s Analog Input 400 MS/s Analog Output and 4 Analog Input Channels

Large Image : Customized National Instruments NI-5783 FlexRIO Adapter Module with 100 MS/s Analog Input 400 MS/s Analog Output and 4 Analog Input Channels

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	NI-5783

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

Customized National Instruments NI-5783 FlexRIO Adapter Module with 100 MS/s Analog Input 400 MS/s Analog Output and 4 Analog Input Channels

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	NI-5783
Highlight:	National Instruments NI-5783 , 400MS/s Analog Output NI-5783 Module , NI-5783 FlexRIO Adapter Module

Customized National Instruments 5783 Transceiver Adapter Module for FlexRIO Applications

The National Instruments NI-5783 FlexRIO Transceiver Adapter Module is designed for FlexRIO systems. This model has two variants: a Butterworth filter variant (784364-01) for time-domain applications and an elliptic filter variant (784364-02) for frequency-domain applications. Both versions feature DC-coupled inputs and similar specifications.

Key Features

Compatible with Kintex-7 based PXI FPGA modules and FlexRIO standalone controllers
100 MS/s analog input sampling rate
400 MS/s analog output update rate
4 simultaneously sampled single-ended analog input channels via HDBNC connectors
4 simultaneously updated single-ended outputs via HDBNC AO connectors
High-performance 16-bit quad-channel digital-to-analog converter (DAC)
Single connector for CLK IN and REF IN signals with AC input coupling support
Ideal for electronic warfare, software-defined radio, machine control, and medical imaging applications

Technical Specifications

IF Transceiver Max Bandwidth: 175 MHz

Input Coupling: DC

Analog Input Sampling Rate: 100 MS/s

Max Analog Output Update Rate: 400 MS/s

Analog Input Channels: 4

Analog Output Channels: 4

Compatible FPGA: Kintex-7

Additional Details

The NI-5783 module can receive TRIG signals through one single-ended channel. The TRIG connector supports DC coupling with 10 kΩ rated input and 50 Ω rated output impedance. This transceiver adapter module consumes 4.6 watts of power under typical operating conditions.

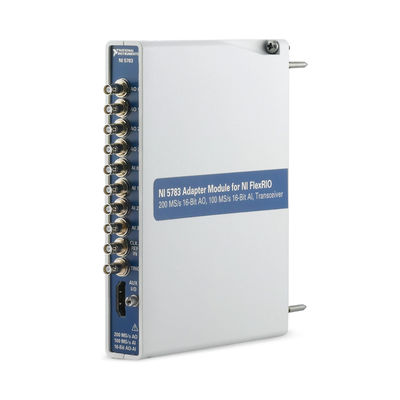

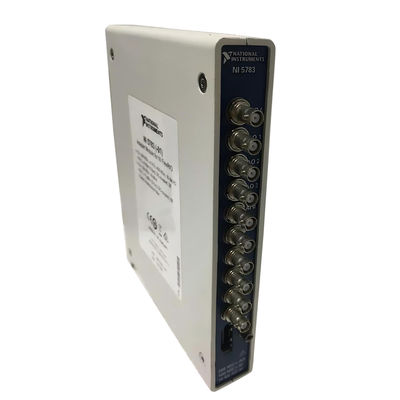

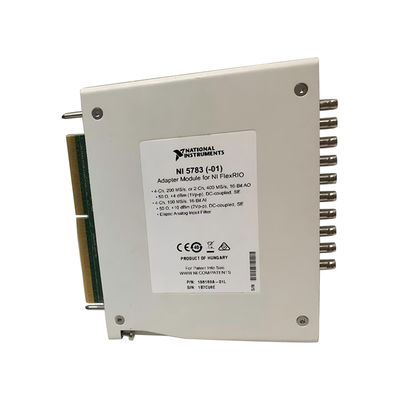

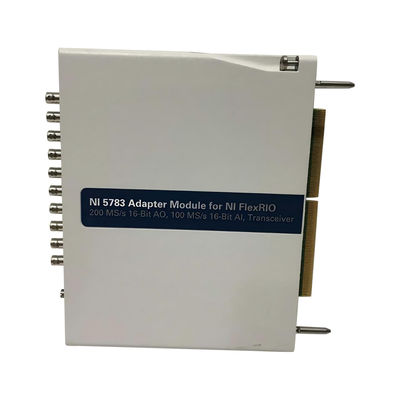

Product Images
