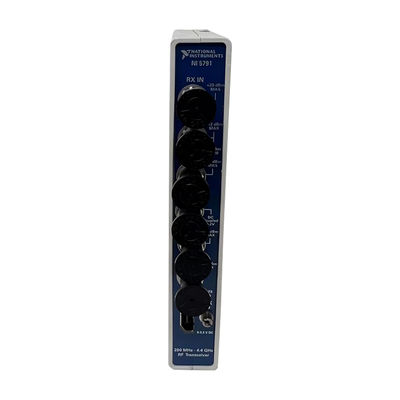

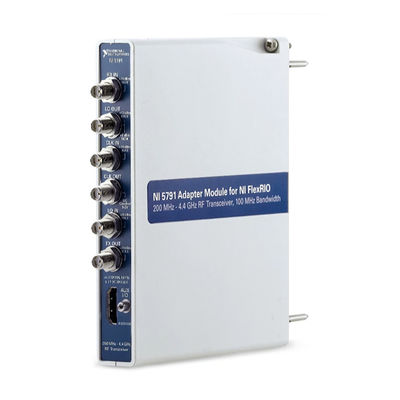

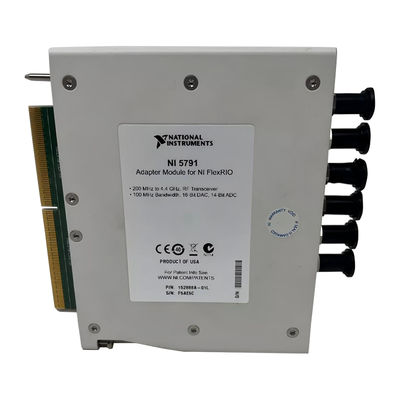

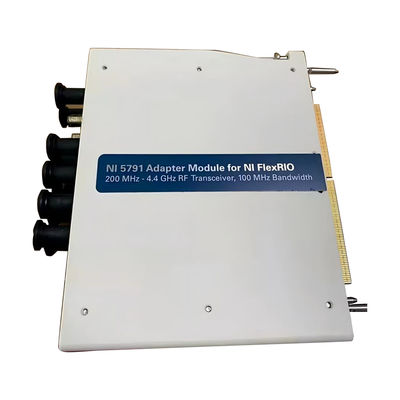

Customized National Instruments NI-5791 RF Adapter Module with 130 MS/s 2-Channel ADC and 14-bit Precision for FlexRIO

The National Instruments NI-5791 RF Adapter Module utilizes advanced CLIP technology and is specifically designed for use with compatible NI FlexRIO™ FPGA modules. This module is only compatible with National Instruments PXIe-796xR FPGA modules.

• 130 MS/s, 2-channel ADC with 14-bit precision and DAC
• Dedicated LO input/output connector for local oscillator sharing in multi-channel applications
• Includes clock options, enabled timing chip, programmable attenuators, and optional receive/transmit filters
• Front panel connectors: RX IN, AUX I/O, CLK IN, LO OUT, LO IN, CLK OUT, and TX OUT
• Compatible with any 50 Ω SMA cable for front panel connections
• RF signal upconversion and downconversion range: 0.2 GHz to 4.4 GHz
• Requires SHH19-H19-AUX cable (Part Number: 152629-01 or 152629-02) for AUX I/O connector access
• Includes Component-Level IP (CLIP) for HDL IP integration

• Provides access to I and Q data for 1 receive channel and 1 transmit channel
• Includes user command interface for configuring programmable attenuators, baseband clock, receive amplifier, LO filter, and more
