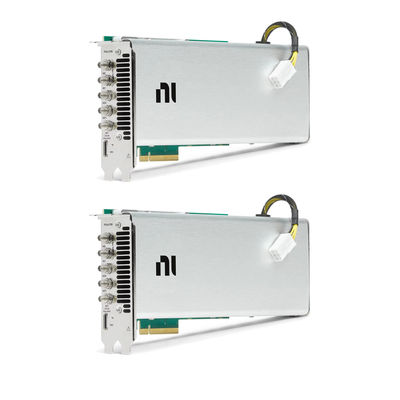

National Instruments PCIe-5785 FlexRIO Transceiver Device with 6.4 GS/s Sampling Rate 12-bit Analog Input and 6 GHz Direct RF Signal Acquisition

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PCIe-5785
Highlight:	National Instruments PCIe-5785 , 12 bit Analog Input National Instruments PCIe-5785 , 6GHz Direct RF Signal Acquisition Signal Generator

Customized OEM Support for National Instruments PCIe-5785 FlexRIO Transceiver Device

The National Instruments PCIe-5785 FlexRIO IF Transceiver Device is a high-performance solution for demanding RF signal processing applications. This versatile device offers exceptional signal acquisition and generation capabilities with direct RF sampling up to 6 GHz.

Key Specifications

Channels: 2-channel configuration
Resolution: 12-bit analog input
Sampling Rate: Up to 6.4 GS/s maximum
RF Capability: Direct RF signal acquisition up to 6 GHz
Operation Modes: Dual-channel at 3.2 GS/s or single-channel at 6.4 GS/s

Model Variations

The device is available in multiple configurations based on FPGA type and filter options:

FPGA Type	Part Numbers	Features
Kintex UltraScale KU035	785587-01, 785587-02	785587-02 includes reconstruction filter
KU040	785588-01, 785588-02	785588-02 includes reconstruction filter
KU060	785589-01, 785589-02	785589-02 includes reconstruction filter

Advanced Features

High-performance ADC and DAC components
Supports baseband and IF signal generation/acquisition
Real-time processing capabilities
Multiple I/O and digital I/O line options
Digital I/O for external hardware connectivity

Typical Applications

RF modulation and demodulation
Real-time spectrum analysis
Passive ESM (Electronic Support Measures)
Active ECM (Electronic Counter Measures)
Communications systems
Multi-channel wideband data acquisition
Non-traditional waveform generation and acquisition

The PCIe-5785 is particularly suited for applications requiring simultaneous generation and high-speed acquisition on a single device, offering exceptional synchronization capabilities for complex RF systems.
