National Instruments PCIe-6536B Digital I/O Device with 38 Channels 32 Data Channels and 6 PFI Channels for High-Speed Applications

Large Image : National Instruments PCIe-6536B Digital I/O Device with 38 Channels 32 Data Channels and 6 PFI Channels for High-Speed Applications

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PCIe-6536B

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PCIe-6536B Digital I/O Device with 38 Channels 32 Data Channels and 6 PFI Channels for High-Speed Applications

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PCIe-6536B
Highlight:	38 Channels Digital I/O Device , 32 Data Channels PCIe-6536B , 6 PFI Channels National Instruments Device

Customized OEM Support National Instruments PCIe-6536B Digital I/O Device

High-Performance Digital I/O Solution

The National Instruments PCIe-6536B (Part No. 782630-01) is a professional-grade Digital I/O Device designed for efficient digital signal transfer with continuous data streaming capability. This PCI Express bus-powered device delivers exceptional signal integrity with built-in noise, jitter, and glitch immunity.

Key Features

38 total channels (32 data channels + 6 PFI channels)
All channels independently programmable
Supports 2.5V and 3.3V generation voltage levels
50Ω output impedance and 50kΩ input impedance
32mA current drive per I/O channel
Includes NI-DAQmx driver and LabVIEW Express software
Compatible with NI Digital Waveform Editor for waveform creation/editing
Supports handshaking for bidirectional communication
25MHz maximum clock rate

Technical Specifications

Bus Connector	PCI Express
Bidirectional Digital Channels	32
Digital Input Voltage Range	0V to 5V
Output Voltage Range	0V to 5V
Current Drive (Single-ended I/O)	32mA

Applications

Ideal for high-speed digital applications including LCD testing, digital pattern capture, wireless protocol testing, and complex synchronized systems. Excellent for fast-streaming applications requiring precise timing and synchronization.

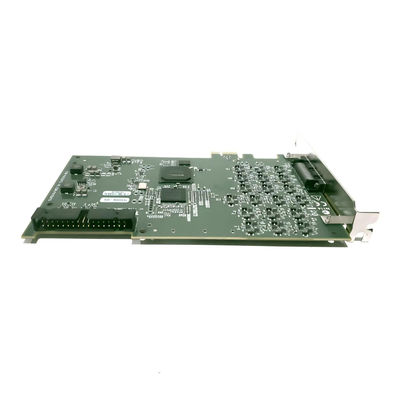

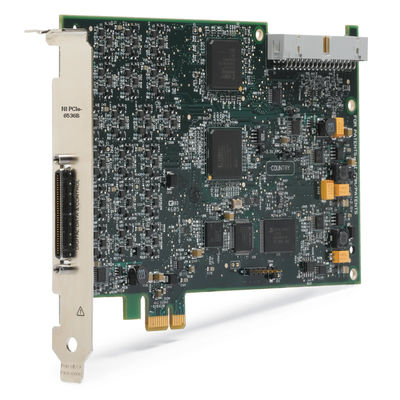

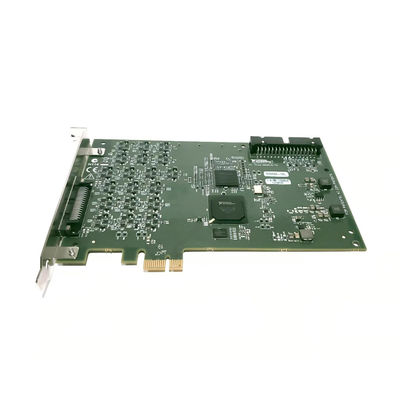

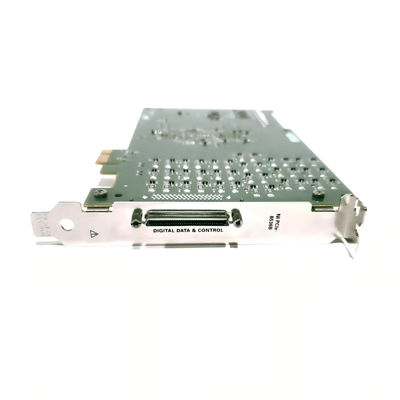

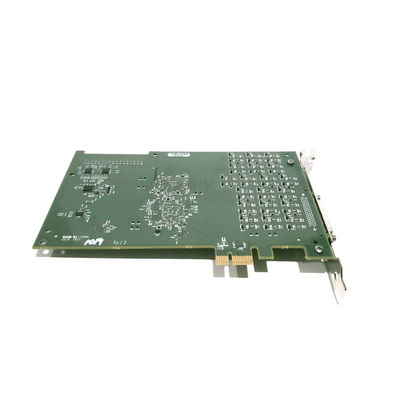

Product Images
