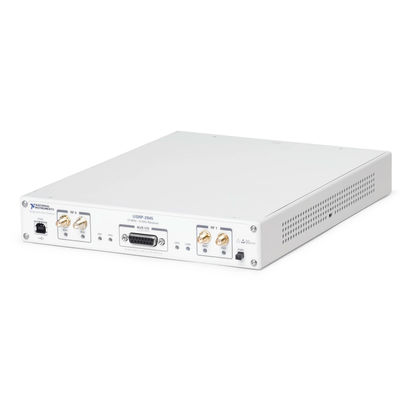

National Instruments NI-USRP-2945 Software Defined Radio Device with 10 MHz to 6 GHz RF Frequency Range 80 MHz Bandwidth and Kintex-7 410T FPGA

Large Image : National Instruments NI-USRP-2945 Software Defined Radio Device with 10 MHz to 6 GHz RF Frequency Range 80 MHz Bandwidth and Kintex-7 410T FPGA

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	NI-USRP-2945

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments NI-USRP-2945 Software Defined Radio Device with 10 MHz to 6 GHz RF Frequency Range 80 MHz Bandwidth and Kintex-7 410T FPGA

Description

Warranty:	1 Month	Customized Support:	OBM, ODM, OEM
Place Of Origin:	United States	Brand Name:	National Instruments
Model Number:	NI-USRP-2945	Power:	See Instruction Manual For Details
Material:	See Instruction Manual For Details	Size:	See Instruction Manual For Details
Highlight:	6GHz Software Defined Radio Device , National Instruments NI-USRP-2945 , NI-USRP-2945 Software Defined Radio Device

National Instruments NI-USRP-2945 Software Defined Radio Device

10 MHz to 6 GHz RF Frequency Range with OBM Support

The National Instruments USRP-2945 (Part Number: 785263-01) is a high-performance Software Defined Radio Device featuring 1,024 MB of onboard DRAM and 4 input channels. With its 10 MHz-6 GHz frequency range and 80 MHz bandwidth per channel, this device is ideal for prototyping and developing complex wireless systems.

Key Features

Equipped with powerful Kintex-7 410T FPGA for advanced signal processing
2 RF channels with 80 MHz instantaneous bandwidth
Multiple connectivity options: 1 JTAG connector, 1 PCIe port, and 2 Ethernet ports
Data streaming via Ethernet or PCI Express
Comprehensive timing and synchronization connectors
Software-defined implementation of radio components (amplifiers, filters, modulators, etc.)

Technical Specifications

Characteristic	Specification
Bus Connector	MXIe, Ethernet
RF Frequency Range	10 MHz to 6 GHz
GPSDO	No
Number of Output Channels	0
RF Transceiver Instantaneous Bandwidth	80 MHz
Number of Input Channels	4
FPGA	Kintex-7 410T

Performance Details

The USRP-2945 features a 4-channel receiver with 2.5 ppm frequency accuracy and +10 dBm maximum input power. Its 14-bit resolution analog-to-digital converter (ADC) delivers 88 dB spurious-free dynamic range (SFDR). The device has a maximum power consumption of 44 watts and requires a 9-16 VDC, Class 2 or LPS power supply.

Operating Conditions: Designed for controlled environments with an operating temperature range of 23°C ±5°C. Not suitable for harsh operating conditions.
