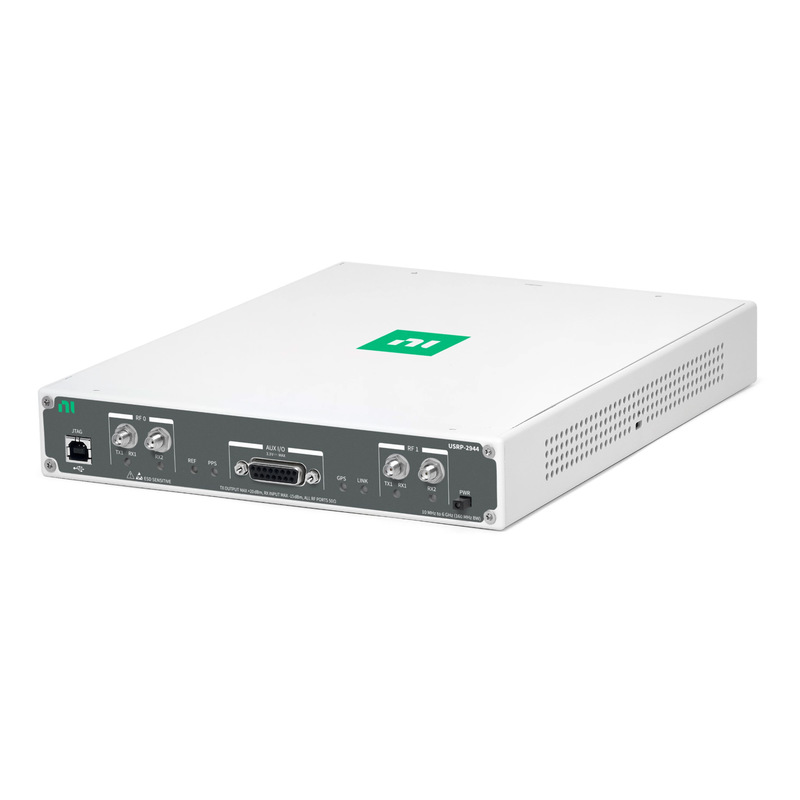

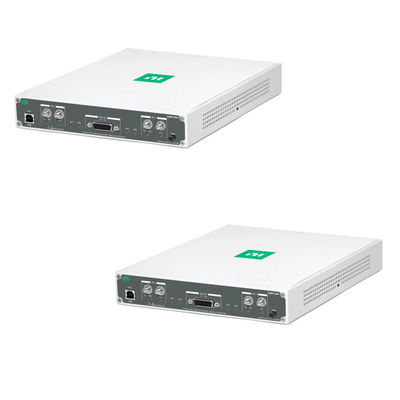

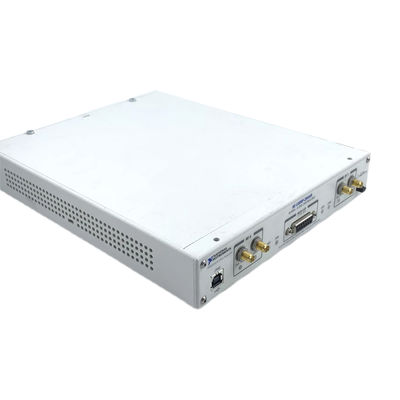

USRP-2944 Software Defined Radio Device National Instruments 10MHz-6GHz RF Frequency

Large Image : USRP-2944 Software Defined Radio Device National Instruments 10MHz-6GHz RF Frequency

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	NI-USRP-2944

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

USRP-2944 Software Defined Radio Device National Instruments 10MHz-6GHz RF Frequency

Description

Warranty:	1 Month	Customized Support:	OEM, ODM, OBM
Place Of Origin:	United States	Brand Name:	National Instruments
Model Number:	NI-USRP-2944	Power:	See Instruction Manual For Details
Material:	See Instruction Manual For Details	Size:	See Instruction Manual For Details
Highlight:	USRP-2944 Software Defined Radio Device , National Instruments USRP-2944 , 6GHz Software Defined Radio Device

USRP-2944 Software Defined Radio Device by National Instruments

10 MHz to 6 GHz RF Frequency Range

Product Overview

The National Instruments USRP-2944 (Part Number: 783149-01) is a high-performance software defined radio device featuring a Kintex-7 FPGA for optimized RF performance. With a frequency range of 10 MHz to 6 GHz, this device offers 2 input and 2 output channels for versatile wireless communication applications.

Key Features

Frequency Range: 10 MHz to 6 GHz
Channels: 2 input and 2 output channels
Connectivity: MXIe and Ethernet bus communication

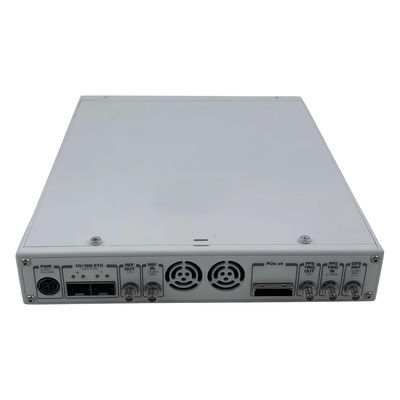

Back Panel: 2 SFP+ inputs for 10 GbE or 1 GbE host connection
FPGA-controlled I/O: Aux I/O port for general purpose use
JTAG Connector: USB port for device recovery and configuration
PCIe x4 Port: Supports x4 bus link via MXI-Express
GPS Support: Capability to install GPS antenna
Power Requirement: 9 to 16 VDC external power supply

RF Connectivity

The USRP-2944 features two RF input ports (RF 0 and RF 1) with SMA female connectors for each port, configurable as single-ended input or output channels. The device includes REF IN and REF OUT ports for reference signals, with REF IN accepting 10 MHz frequency signals at minimum 0 dBm input power.

System Integration

Based on LabVIEW Reconfigurable I/O (RIO) architecture, the USRP RIO provides an integrated hardware and software solution for rapid prototyping of high-performance wireless communication systems, significantly reducing development time.
