National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth

Large Image : National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXI-2564

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXI-2564
Highlight:	16 Channel SPST PXI Relay Module , 5A Switching Current Relay Module , 10 MHz Bandwidth PXI-2564

OEM Supported National Instruments PXI-2564 PXI Relay Module for Customized

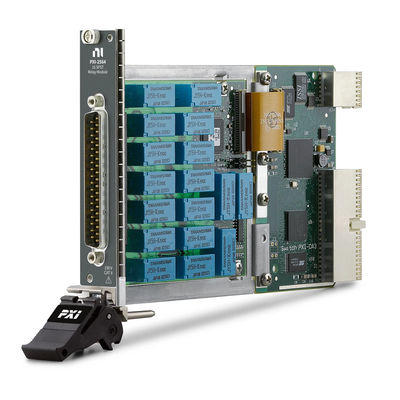

The National Instruments PXI-2564 (Part Number: 778572-64) is a 5A, 16-channel SPST PXI relay module featuring independent SPST relays. All installed relays are non-latching type, known for their low thermal offset and extremely low on-resistance. This module can be easily programmed via software, making it ideal for applications requiring medium to high power signal and load switching, such as automotive or automated test applications.

Key Features

16 independent SPST (Form A) relays with gold-plated contacts
5A maximum switching current per channel
10.4ms maximum operate time
Mechanical relay life: 20 million cycles
Electrical relay life: 100,000 cycles
10 MHz switching bandwidth
45 scans per second operation
PXI trigger support with programmable pulse width (1µs to 62µs)
Compatible with NI-SWITCH driver software and LabVIEW programming

Technical Specifications

Specification	Value
Module Type	3U, Single-slot PXI
Connector	37-pin D-SUB male I/O
Maximum Switching Power	750 VA per channel
Power Consumption	5W at 5V
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
Dimensions	8.5 x 0.8 x 5.1 inches
Weight	9.5 oz

Key Specifications

Scan Rate: 45 cycles/second

Bus Connector: PXI Hybrid

Maximum DC Switching Current: 5 A

Maximum DC Switching Voltage: 150 V

Relay Configuration: SPST (Normally Open)

Switching Bandwidth: 10 MHz

Number of Relays: 16

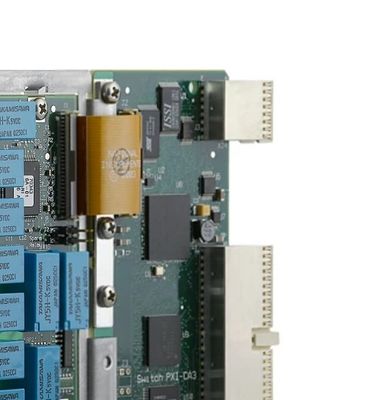

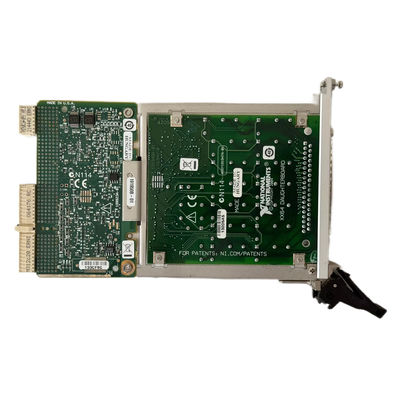

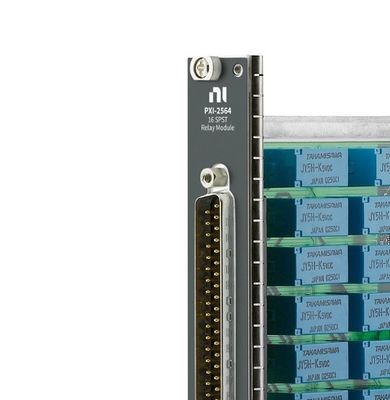

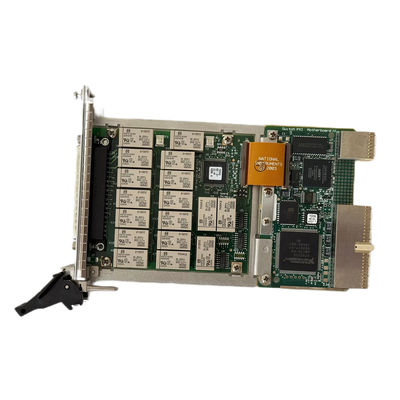

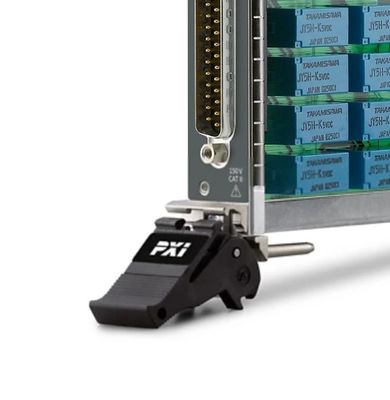

Product Images

Overall Rating

4.7

Based on 50 reviews for this supplier

Rating Snapshot
