National Instruments PXI Multiplexer Switch Module PXI-2584 12 Channels 900kHz Bandwidth

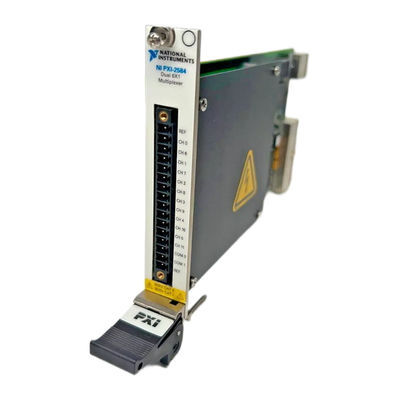

Large Image : National Instruments PXI Multiplexer Switch Module PXI-2584 12 Channels 900kHz Bandwidth

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXI-2584

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXI Multiplexer Switch Module PXI-2584 12 Channels 900kHz Bandwidth

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXI-2584
Highlight:	National Instruments PXI-2584 , 12 Channels PXI Multiplexer Switch Module , PXI-2584 PXI Multiplexer Switch Module

National Instruments PXI-2584 Customizable Multiplexer Switch Module

High-Performance Switching Solution for Industrial Applications

The National Instruments PXI-2584 (Part Number: 778572-84) is a versatile 1-wire 12-channel PXI multiplexer switch module designed for high-voltage applications. Featuring Reed relays with exceptional 0.4ms typical switching time and 300 million cycle mechanical life, this module delivers reliable performance for extended test equipment operation.

Key Features

Multiple configuration options: 1-wire 12×1 multiplexer, 2-wire 6×1 multiplexer, 1-wire dual 6×1 multiplexer, or 2-wire 11×1 interleaved multiplexer
900 kHz switching bandwidth for high-speed applications
300 V CAT II certification for routing general ATE loads or high-voltage, low-current signals
600 V CAT I channel-to-ground isolation for fuel cell and battery stack applications
Withstands surge voltages ≤ 2,500 V
10 W switching power and 0.5 A switching current per channel
Maximum scan rate of 600 channels/second

Technical Specifications

Specification	Value
Relay Type	Reed (Rhodium contact material)
Channel Configuration	12 channels (1-wire) or 6 channels (2-wire)
Maximum DC Switching Current	0.5 A
Maximum DC Switching Voltage	600 V
Trigger Signal	PXI trigger lines <0...7>, minimum pulse width 150 ns
Power Consumption	1.6 W at 5 V
Operating Temperature	-40°C to 131°C
Dimensions	8.5 x 0.8 x 5.1 inches (7.5 oz)

Advanced Functionality

The PXI-2584 supports NI-SWITCH front panel integration for easy relay operation and switch code debugging. Its programmable pulse width generation (1 µs to 62 µs) and multi-module configuration capability make it ideal for complex test systems requiring hundreds of measurement channels.

Environmental Specifications

Storage Temperature: -20°C to 158°C
Operating Random Vibration: 0.31 g (5-500 Hz)
Non-operating Random Vibration: 2.46 g (5-500 Hz)

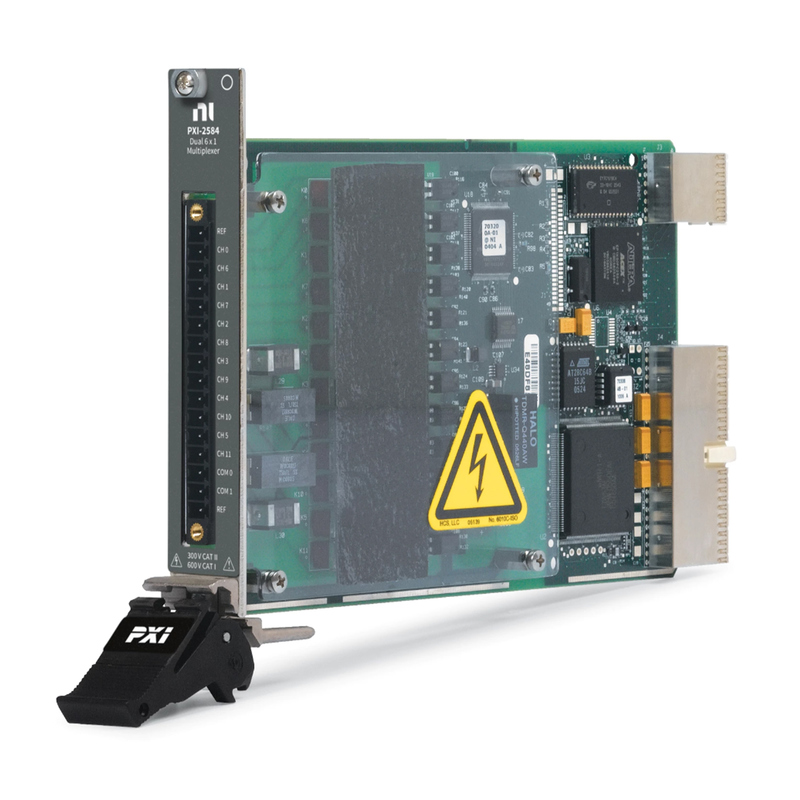

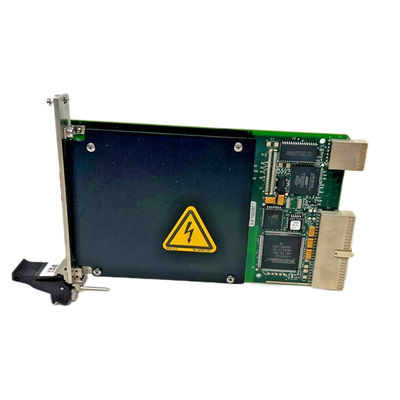

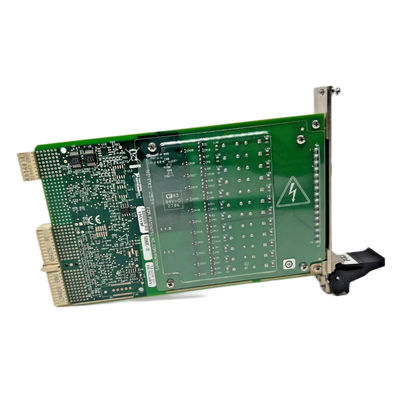

Product Images
