National Instruments PXI-2585 PXI Multiplexer Switch Module with 12 A 1-Wire 10-Channel Configuration

Large Image : National Instruments PXI-2585 PXI Multiplexer Switch Module with 12 A 1-Wire 10-Channel Configuration

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXI-2585

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXI-2585 PXI Multiplexer Switch Module with 12 A 1-Wire 10-Channel Configuration

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXI-2585
Highlight:	12A PXI Multiplexer Switch Module , 1 Wire PXI-2585 , 10 Channel National Instruments Switch Module

Customizable National Instruments PXI-2585 PXI Multiplexer Switch Module

Key Features

12 A, 1-wire, 10-channel multiplexer switch module
Ideal for control applications and automotive/battery/power testing
Configurable as 10x1 multiplexer with high isolation voltage
300 V channel-to-channel and channel-to-ground switching voltage
3 kVA maximum switching power per channel (up to 60 Hz in AC systems)
Compact single-slot 3U PXI module dimensions

Product Overview

The National Instruments PXI-2585 (Part Number: 778572-85) is a high-power multiplexer switch module designed for demanding control applications and testing scenarios. This versatile module features electromagnetic mechanical relays with silver nickel contacts, offering reliable performance in automotive, battery, and power testing environments.

Technical Specifications

Specification	Details
Module Type	12 A, 1-wire, 10-channel multiplexer
Switching Voltage	300 V channel-to-channel and channel-to-ground (Measurement Category II)
Switching Power	3 kVA per channel (up to 60 Hz in AC systems)
Relay Type	Electromagnetic mechanical single-side stable with silver nickel contacts
Actuation Time	Maximum 15.4 ms
Relay Life	1 × 10⁷ mechanical cycles, 1 × 10⁵ electrical cycles (@ 30 V DC, 10 A DC resistive), 3 × 10⁴ electrical cycles (@ 30 V DC, 12 A DC resistive)
Connector	Positronic GMCT series 20-pin I/O connector
Dimensions	21.6 cm × 2.0 cm × 13.0 cm (single-slot 3U PXI module)

Additional Features

Compatible with various National Instruments and third-party accessories (sold separately)
Accepts input trigger signals and generates output trigger signals
Low contact resistance for improved signal integrity

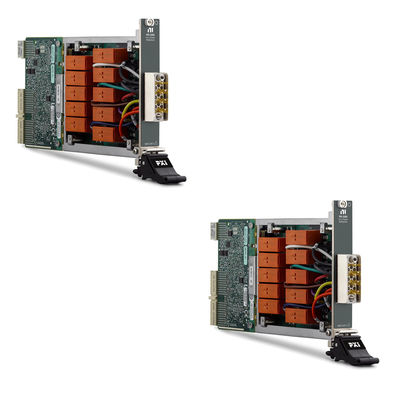

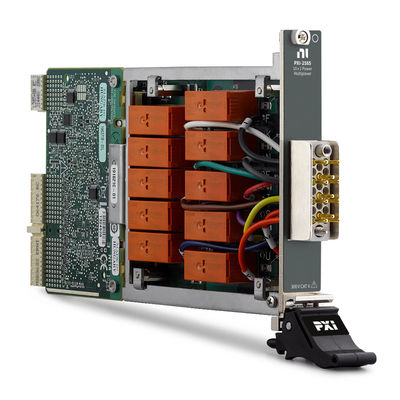

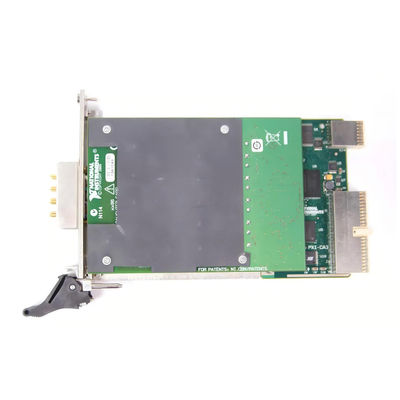

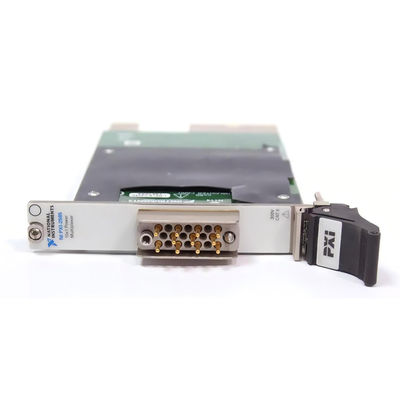

Product Images
