National Instruments PXI-2597 PXI RF Multiplexer Switch Module with 26.5 GHz Bandwidth and 6 Channels 50 Ohm Impedance

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXI-2597
Highlight:	26.5 GHz PXI RF Multiplexer Switch Module , 6 Channels PXI-2597 , 50 Ohm Impedance RF Multiplexer

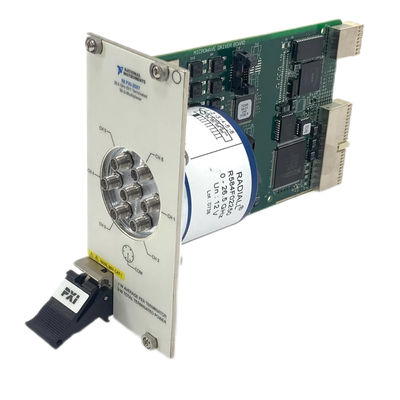

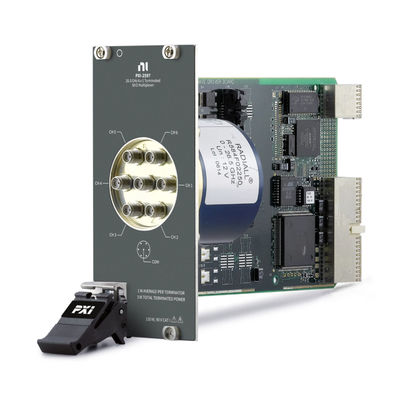

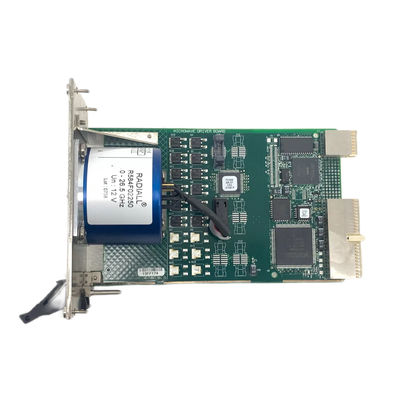

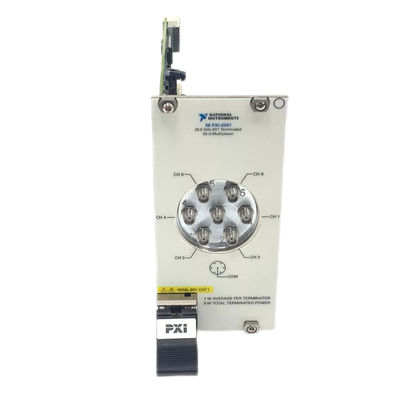

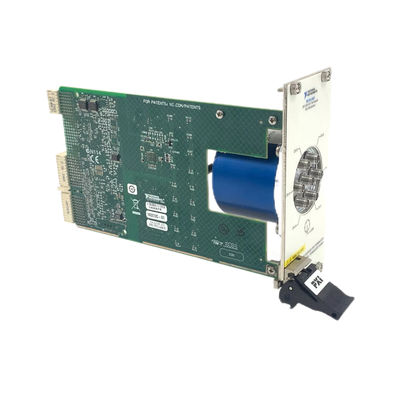

National Instruments PXI RF Multiplexer Switch Module

High-Performance 50Ω Terminated RF Multiplexer

The NI PXI-2597 (Part Number: 778572-97) is a 50Ω terminated RF multiplexer switch module designed for reliable signal transmission in high-power applications while preventing signal degradation.

Key Features

26.5 GHz switch bandwidth for high-frequency applications
Smart switch control with debugging board for visual switch engagement verification
NI Switch Executive software for intuitive programming interface
Compatible with over 100 NI switch configurations across PXI and SCXI platforms
Ideal for building test frameworks, online analyzers, and deformation analyzers

Technical Specifications

Category	Specification
Channels	6
Insertion Loss	0.2 dB
Isolation	80 dB
Connector Type	SMA (7 I/O connectors)
Impedance	50Ω
Frequency	26.5 GHz
Power Handling	51.76 dBm (150W at 50Ω load)
Relay Operation Time	15 ms (Electromagnetic non-latching type)
Recommended Cycling Speed	5 channels per second
Expected Lifespan	2 × 10⁶ cycles
Operating Temperature	0°C to 55°C
Storage Temperature	-40°C to 70°C
Maximum Current	1.73 A RMS
Power Requirements	3.3V @ 2.5W, 5V @ 1W, 12V @ 3W
Dimensions	8.5 × 2.4 × 5.1 inches
Weight	17.3 oz

System Integration Features

The module supports external trigger signals from instruments like the NI PXI-2597 arbitrary waveform generator, enabling automatic advancement to the next channel in the output list. The scanner advance trigger signal indicates when all preset relays are closed and stabilized, typically synchronized with measurement equipment.
