National Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI Module

Large Image : National Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI Module

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXI-5404

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI Module

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXI-5404
Highlight:	PXI-5404 100MHz Signal Generator , National Instruments PXI-5404 , 1.07µHz Resolution 100MHz Signal Generator

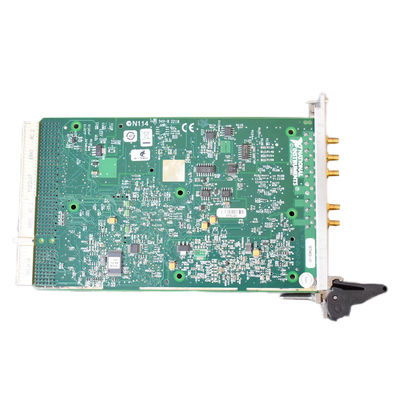

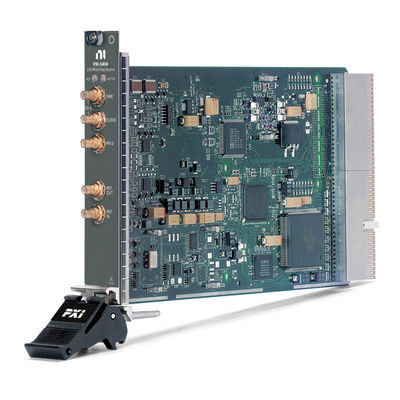

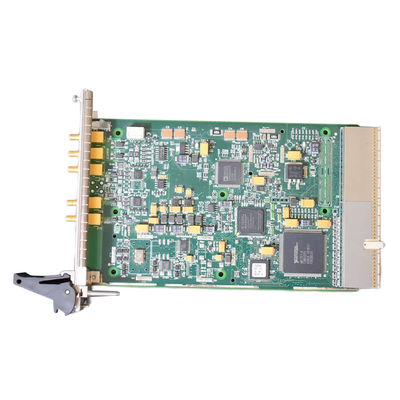

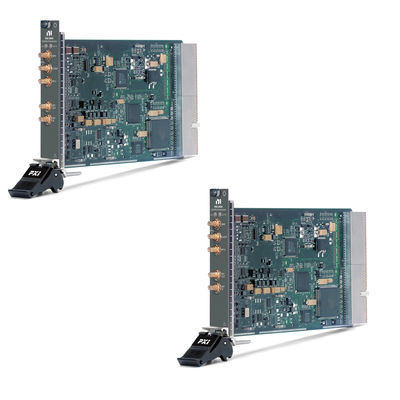

National Instruments PXI-5404 Waveform Generator

Premium Customizable Waveform Generation for OEM Applications

The National Instruments PXI-5404 (Part Number: 778577-02) is a 1-slot PXI module featuring a 100 MHz waveform generator with exceptional precision. Utilizing Direct Digital Synthesis (DDS) and precise phase-locked loop circuitry, it delivers stable, accurate sine waves and clock outputs with programmable amplitude, frequency, phase, and duty cycle.

Key Features

100 MHz sine wave generation with 1.07 µHz resolution
Programmable output levels from 1 to 2 Vpp into 50 Ω loads
Exceptional frequency resolution and passband flatness
Coherent clock applications with synchronized outputs
Programmable duty cycle (25% to 75%) for clock outputs
Voltage levels configurable for 5V, 3.3V or 1.8V to high-impedance loads

Applications

Ideal for stimulus-response instruments, analyzers, and ATE test frameworks. The PXI-5404's precision reduces test time by eliminating anti-aliasing filter requirements and minimizing needed test cycles. Its coherent timing capabilities make it perfect for spectrum analysis applications.

Specification	Value
Maximum Bandwidth	105 MHz
Output Channels	1
Analog Output Voltage Range	-1 V to 1 V
Onboard Memory	8 MB
Resolution	12-bit
Maximum Update Rate	300 MS/s
Bus Connector	PXI Hybrid
