National Instruments PXI-7851 Multifunction Reconfigurable I/O Module with 8 Analog Inputs 8 Analog Outputs and 96 Digital I/O Lines

National Instruments PXI-7851 Multifunction Reconfigurable I/O Module with 8 Analog Inputs 8 Analog Outputs and 96 Digital I/O Lines
National Instruments PXI-7851 Multifunction Reconfigurable I/O Module with 8 Analog Inputs 8 Analog Outputs and 96 Digital I/O Lines National Instruments PXI-7851 Multifunction Reconfigurable I/O Module with 8 Analog Inputs 8 Analog Outputs and 96 Digital I/O Lines National Instruments PXI-7851 Multifunction Reconfigurable I/O Module with 8 Analog Inputs 8 Analog Outputs and 96 Digital I/O Lines National Instruments PXI-7851 Multifunction Reconfigurable I/O Module with 8 Analog Inputs 8 Analog Outputs and 96 Digital I/O Lines

Large Image :  National Instruments PXI-7851 Multifunction Reconfigurable I/O Module with 8 Analog Inputs 8 Analog Outputs and 96 Digital I/O Lines

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXI-7851
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments PXI-7851 Multifunction Reconfigurable I/O Module with 8 Analog Inputs 8 Analog Outputs and 96 Digital I/O Lines

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXI-7851
Highlight:

8 Analog Inputs PXI-7851

,

8 Analog Outputs Multifunction Reconfigurable I/O Module

,

96 Digital I/O Lines Signal Generator

Customized Support National Instruments PXI-7851 Multifunction Reconfigurable I/O Module with OEM Compatibility
The National Instruments PXI-7851 (Part Number: 780339-01) is a versatile PXI multifunction reconfigurable I/O module featuring a customer-programmable FPGA for superior signal processing and direct I/O control with complete timing and frame synchronization adaptability.
Key Features
  • User-reconfigurable FPGA using LabVIEW FPGA Module for custom applications
  • Dedicated analog-to-digital converter (ADC) per channel for autonomous operation
  • Advanced capabilities including factor speed checking and single-channel activation
  • 8 analog inputs (16-bit resolution, 750 kS/s sampling rate)
  • 8 analog outputs (16-bit resolution, 1 MS/s sampling rate)
  • 96 digital I/O lines with 3 DMA channels
  • 3 high-density 68-pin VHDCI I/O connectors
Technical Specifications
Parameter Specification
Maximum Sampling Rate 750 kS/s
Bus Connector PXI Hybrid
Maximum Clock Rate 40 MHz
Bidirectional Digital Channels 96
Digital I/O Logic Level 3.3 V, 5 V
DRAM 0 MB
FPGA Virtex-5 LX30
Analog Input Voltage Range -10 V to 10 V
Point-to-Point Data Streaming Support No
Analog Input Channels 8
Analog Output Channels 8
System Integration
The PXI-7851 integrates with NI PXI test systems, featuring ADCs with up to 14-bit resolution and 200 MS/s sampling rate. The system includes an optional waveform generator for ADC testing, high-speed I/O for capturing ADC output, standard communication protocol generation (SPI, I2C, JTAG), and a source measurement unit (SMU) for DC parameter testing.
Physical Specifications
Weight: 0.33 lbs
Dimensions: 6.3 x 3.9 inches
Operating Temperature: 0°C to 55°C

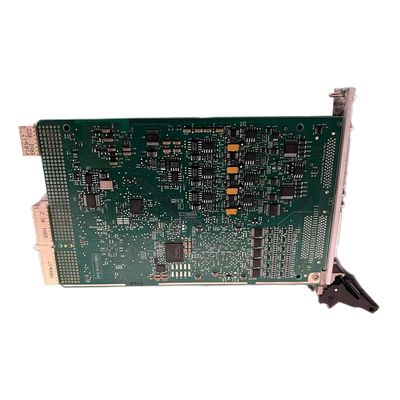

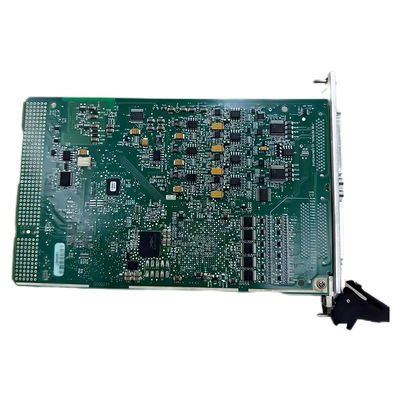

Product Images
National Instruments PXI-7851 Multifunction Reconfigurable I/O Module with 8 Analog Inputs 8 Analog Outputs and 96 Digital I/O Lines 0 National Instruments PXI-7851 Multifunction Reconfigurable I/O Module with 8 Analog Inputs 8 Analog Outputs and 96 Digital I/O Lines 1 National Instruments PXI-7851 Multifunction Reconfigurable I/O Module with 8 Analog Inputs 8 Analog Outputs and 96 Digital I/O Lines 2
