National Instruments PXIe-4144 PXI Source Measure Unit with 4 SMU Channels 6 V Voltage Range and 500 mA Current Range

Large Image : National Instruments PXIe-4144 PXI Source Measure Unit with 4 SMU Channels 6 V Voltage Range and 500 mA Current Range

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-4144

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/stones >=1 stones
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXIe-4144 PXI Source Measure Unit with 4 SMU Channels 6 V Voltage Range and 500 mA Current Range

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-4144
Highlight:	4 SMU Channels PXI Source Measure Unit , 6V Voltage Range PXI SMU , 500mA Current Range PXIe-4144

OEM Supported National Instruments PXIe-4144 PXI Source Measure Unit for Measurements

Product Overview

The National Instruments PXIe-4144 PXI Source Measure Unit (Part Number: 782432-01) is a comprehensive solution for wireless test systems (RFIC), integrating key instruments required for testing RFIC devices including transceivers, IF receivers, RF front-ends, modulators/demodulators, and other RF IC components.

Key Features

Integrated 6.6 GHz Vector Signal Analyzer (VSA) and 6.6 GHz Vector Signal Generator (VSG)
Source Measure Unit (SMU) for basic DC parameter estimation (open/short, leakage tests)
High-speed digital I/O for capturing or generating digital baseband or control communication patterns
Supports common communication protocols (SPI, I2C, JTAG)
Customizable modulation schemes (AM, FM, PM, ASK, FSK, MSK, GMSK, PSK, QPSK, PAM, QAM)
NI LabVIEW programming support for rapid system modification
Single-frequency and multi-frequency measurement techniques

Technical Specifications

Current Sensitivity	150 pA
SMU Channels	4
Voltage Range	-6 V to 6 V
Maximum DC Power Sink	3 W
Maximum DC Power Source	3 W
DC Current Range	-500 mA to 500 mA
Bus Connector	PXI Express

Applications

The PXIe-4144 is ideal for characterizing RFIC devices, measuring parameters such as Error Vector Magnitude (EVM), frame leakage, repetition balance, and more. Its flexible architecture allows for quick adaptation to specific testing requirements in wireless communication systems including ZigBee, WLAN, and WiMAX.

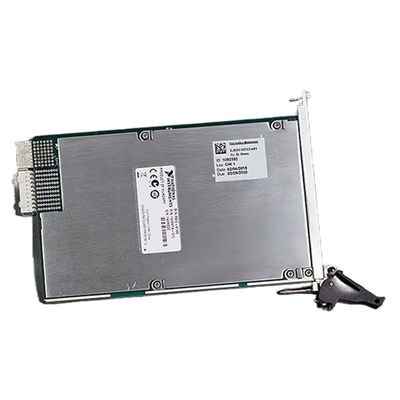

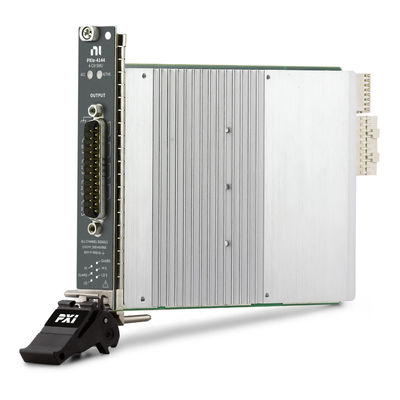

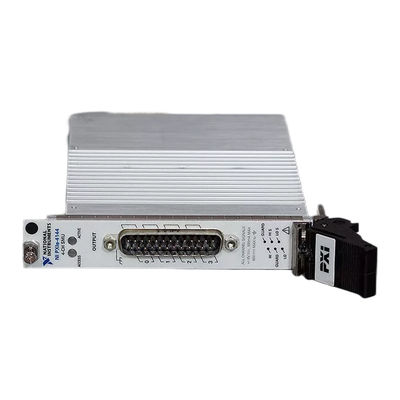

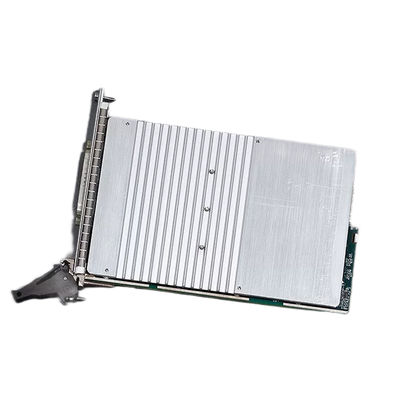

Product Images
