National Instruments PXIe-4162 PXI Source Measure Unit with 12 SMU Channels 100 pA Current Resolution and 100 kS/s Testing Capability

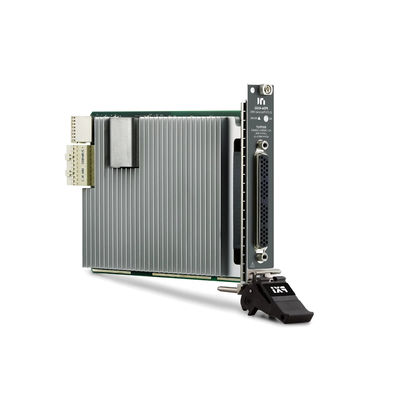

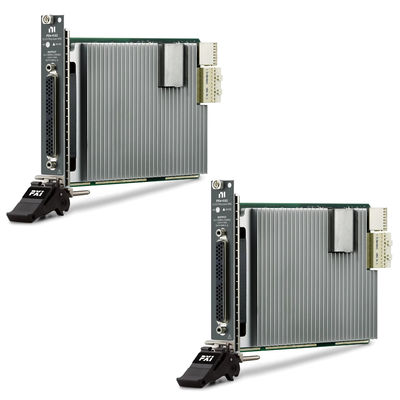

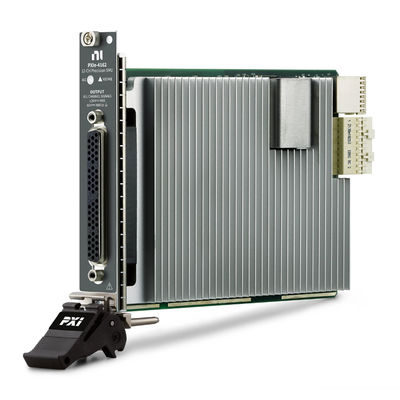

Large Image : National Instruments PXIe-4162 PXI Source Measure Unit with 12 SMU Channels 100 pA Current Resolution and 100 kS/s Testing Capability

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-4162

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/stones >=1 stones
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXIe-4162 PXI Source Measure Unit with 12 SMU Channels 100 pA Current Resolution and 100 kS/s Testing Capability

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-4162
Highlight:	12 SMU Channels PXI Source Measure Unit , 100pA Current Resolution PXIe-4162 , 100kS/s Testing Capability SMU

Customized Support for OEM National Instruments PXIe-4162 PXI Source Measure Unit

The National Instruments PXIe-4162 PXI Source Measure Unit (Part Number: 785680-01) is a high-density source measurement unit featuring 12 SMU channels. This advanced module delivers exceptional precision with 4-quadrant operation, current resolution up to 100 pA, and testing capability at rates up to 100 kS/s.

Key Features

12 SMU channels for comprehensive testing
4-quadrant operation for versatile applications
Ultra-high current resolution (100 pA)
High-speed testing capability (100 kS/s)
SourceAdapt technology for enhanced stability and evaluation precision
Customizable transient response for optimal load integration
Ideal for mixed-signal IC testing in semiconductor production

Technical Specifications

Voltage Range	-24 V to 24 V
Current Range (DC)	-100 mA to 100 mA
Maximum DC Load Power	1.2 W
Maximum DC Source Power	2.4 W
Bus Connector	PXI Express
Dimensions	0.8 x 5.1 x 8.5 inches
Weight	13.9 oz

System Requirements

Requires NI-DCPower driver software and either LabVIEW or LabWindows/CVI application development environment. Configuration can be performed using Measurement & Automation Explorer (MAX) tools.

Reset Functionality

The PXIe-4162 can be reset to a known state, which disables power generation, restores session properties to default values, clears errors (including overtemperature and auxiliary power loss), verifies session properties, and places the session in an uncommitted state. This function performs a hard reset of both device and driver programming, equivalent to using the Reset function in Measurement & Automation Explorer.

Note: Ports can be specified using either fully qualified names (e.g., Dev1/PXI_Trig0) or simplified port names (e.g., PXI_Trig0). Input ports may also be from another device (e.g., Dev2/SourceCompleteEvent).
