National Instruments PXIe-5160 High-Speed Digitizer with 100 MHz Clock Generator 2.5 GS/s Sampling Rate and 500 MHz Bandwidth

Large Image : National Instruments PXIe-5160 High-Speed Digitizer with 100 MHz Clock Generator 2.5 GS/s Sampling Rate and 500 MHz Bandwidth

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-5160

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXIe-5160 High-Speed Digitizer with 100 MHz Clock Generator 2.5 GS/s Sampling Rate and 500 MHz Bandwidth

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-5160
Highlight:	National Instruments PXIe-5160 , 2.5GS/s Sampling Rate High Speed Digitizer , 500MHz Bandwidth High Speed Digitizer

Speed Digitizer PXIe-5160 Customized Support for OEM Integration from National Instruments

Product Overview

The National Instruments PXIe-5160 High-Speed Digitizer is a versatile solution for precision measurement applications, offering advanced triggering options and synchronization capabilities for complex test systems.

Key Features

Three activation sources: Analog, digital, and software-controlled triggering
Supports single or dual-edge threshold, hysteresis, or window activation detection
Compatible with NTSC, PAL, or SECAM broadcast standards via selectable line-by-line video activation
Advanced 100 MHz clock generator for precise timing and synchronization
SMC architecture enables synchronization of multiple digitizers for high-channel-count applications
Flexible clocking options including external clock sources and PXI reference clock

Technical Specifications

Bus Connector	PXI Express
Analog Input Impedance	1 MΩ, 50 Ω
Maximum Bandwidth	500 MHz
Maximum Sampling Rate	2.5 GS/s
Analog Input Voltage Range	-25 V to 25 V
Analog Input Resolution	10-bit
Part Numbers	782621-01, 782621-02, 782621-03, 155377A-22L

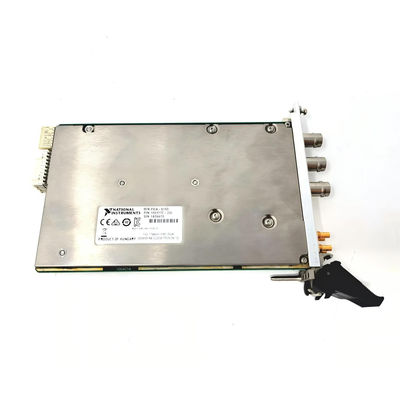

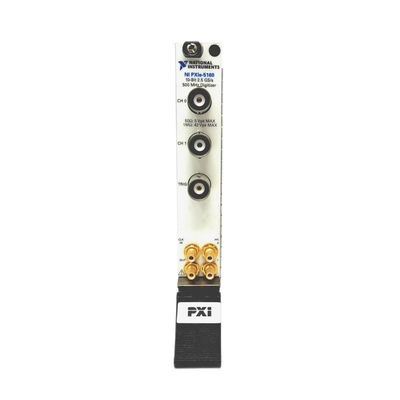

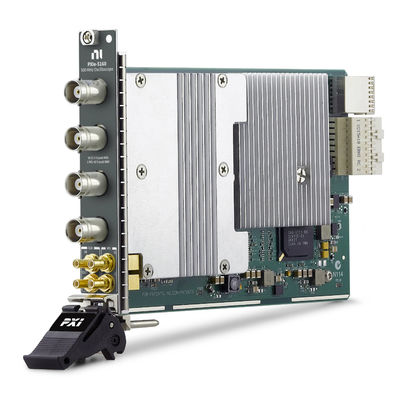

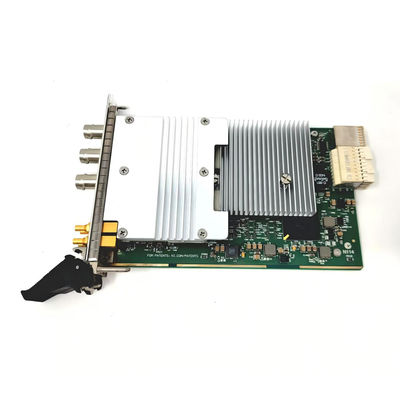

Product Images
