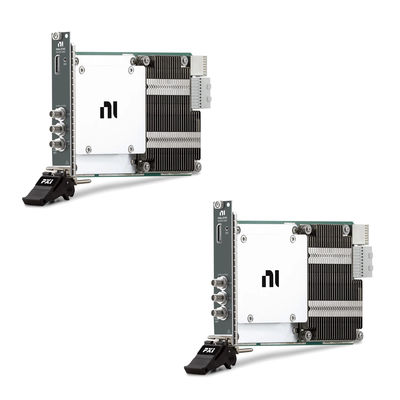

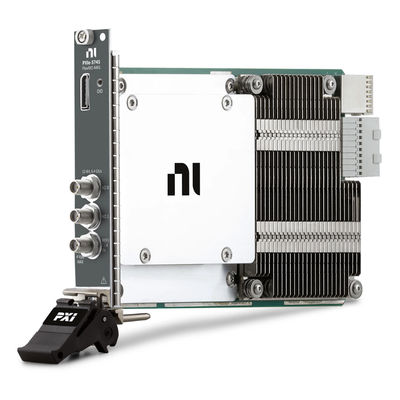

National Instruments PXI FlexRIO Signal Generator PXIe-5745 6.4GS/S Sampling Rate 2 Channels

The National Instruments PXIe-5745 PXI FlexRIO Signal Generator (Part Numbers: 785596-01, 785597-01, 785598-01, 785596-02, 785597-02, 785598-02) is part of the FlexRIO Series by National Instruments. This high-performance signal generator features three types of FPGAs for flexible configuration options.

• Available with three FPGA options: Kintex UltraScale KU035, Kintex UltraScale JU040, and Kintex UltraScale KU060
• Programmable with LabVIEW software for customized applications
• Works with Flex-RIO driver software for predefined waveform initialization
• Direct RF signal generation with 12-bit analog input resolution
• Dual-channel configuration for versatile signal generation
• High sampling rate of up to 6.4 GS/s
• Configurable with 0 or 4 GB DRAM (depending on part number)
• DRAM clock speed of 1064 MHz
• 50 Ω output impedance with AC output coupler compatibility
• Equipped with DAC38RF82 DAC for high-quality signal conversion
• Total power consumption of 58 W

The PXIe-5745 is ideally suited for:

• High-channel signal generation systems
• Electronic warfare applications
• Radar systems
• Signal communication systems
• OEM applications requiring customized signal generation
