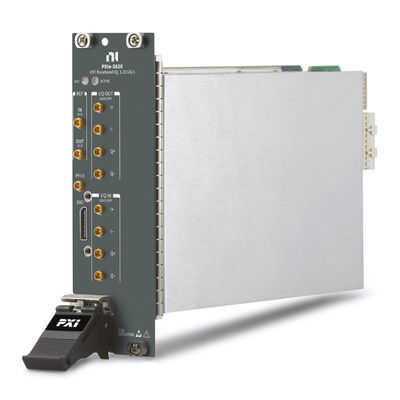

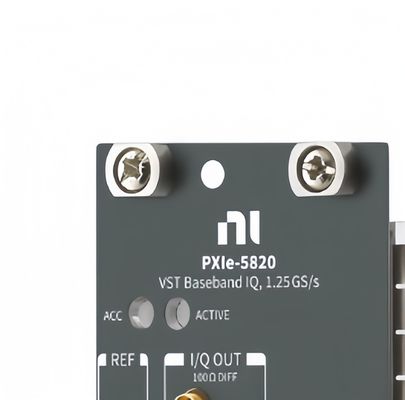

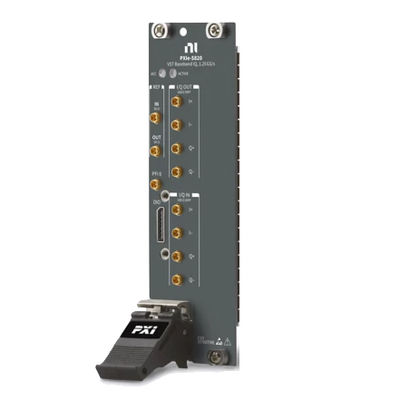

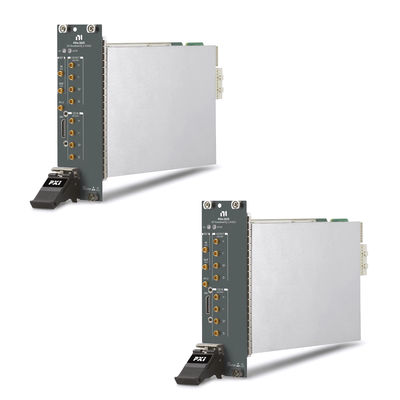

2 Slot Vector Signal Transceiver National Instruments PXIe-5820 Advanced Signal Generator

Large Image : 2 Slot Vector Signal Transceiver National Instruments PXIe-5820 Advanced Signal Generator

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-5820

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

2 Slot Vector Signal Transceiver National Instruments PXIe-5820 Advanced Signal Generator

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-5820
Highlight:	2 Slot Vector Signal Transceiver , PXIe-5820 Vector Signal Transceiver , National Instruments PXIe-5820

Customized Support National Instruments PXIe-5820 PXI Vector Signal Transceiver with OEM Support

Product Overview

The National Instruments PXIe-5820 (Part Number: 783967-01) is a 2-Slot Vector Signal Transceiver that combines exceptional performance with advanced functionality in a single PXI Express module.

Model	National Instruments PXIe-5820 PXI Vector Signal Transceiver
Part Number	783967-01

Key Features

1 GHz frequency bandwidth (I/Q type)
Integrated wideband I/Q digitizer and arbitrary waveform generator
User-programmable high-performance FPGA module
Fast generator tuning time (typical 0.38 milliseconds)
Onboard dynamic RAM with 2 banks (2 GB per second each)
Differential input with two channels

Technical Specifications

RF Generator Frequency Range: 0 MHz to 500 MHz

RF Generator Bandwidth: 1 GHz

RF Analyzer Frequency Range: 0 Hz to 500 MHz

RF Analyzer Bandwidth: 1 GHz

Input Coupling: DC and per terminal

Input Type: Differential

Input Channels: 2

Input Impedance: 100 ± 10 Ohms (typical)

Dimensions: 1.6 x 5.1 x 8.5 inches

Weight: 1.8 lb

Performance Specifications

Theoretical Maximum Data Rate: 12 GB per second per bank

Onboard Static RAM: 2 MB

Maximum Data Reading Rate: 31 MB per second

Maximum Data Writing Rate: 29 MB per second
