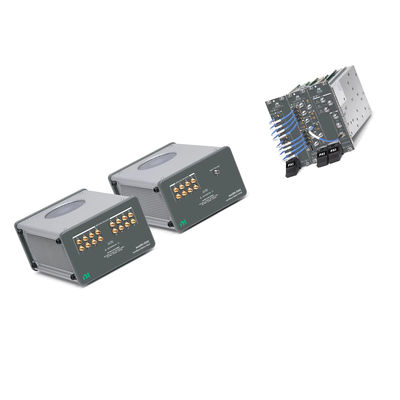

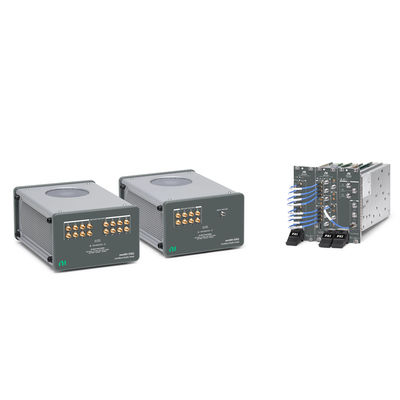

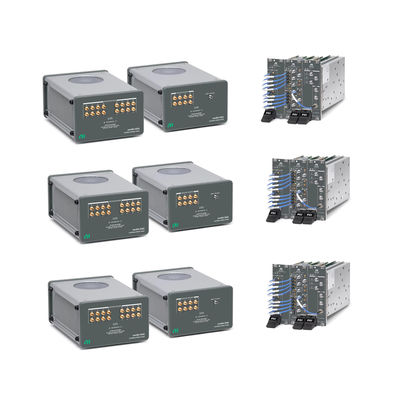

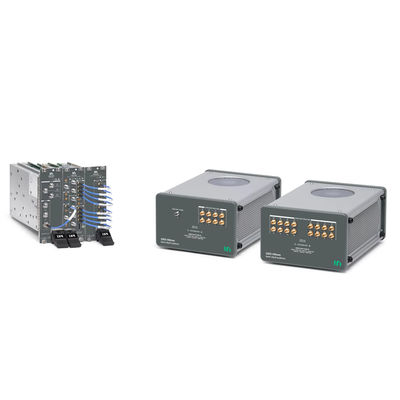

OEM Supported National Instruments PXIe-5831 PXI Vector Signal Transceiver with 1 GHz Bandwidth and Customized Support

Large Image : OEM Supported National Instruments PXIe-5831 PXI Vector Signal Transceiver with 1 GHz Bandwidth and Customized Support

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-5831

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

OEM Supported National Instruments PXIe-5831 PXI Vector Signal Transceiver with 1 GHz Bandwidth and Customized Support

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-5831
Highlight:	1GHz Bandwidth Vector Signal Transceiver , OEM PXI Vector Signal Transceiver , Customized Signal Generator

OEM Supported National Instruments PXIe-5831 PXI Vector Signal Transceiver with Customized Support

Product Overview

The National Instruments PXIe-5831 PXI Vector Signal Transceiver is a high-performance, FPGA-based instrument with 1 GHz bandwidth, designed for PXI systems. This versatile transceiver supports production testing and verification up to millimeter-wave frequencies, making it ideal for both laboratory and field applications.

Key Features

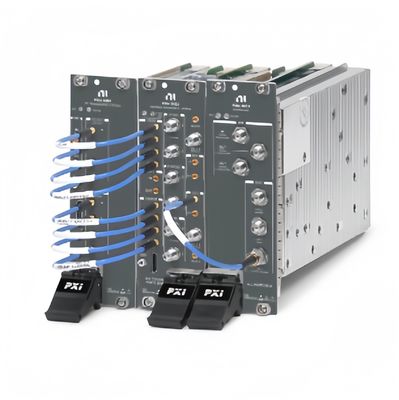

Combines PXIe-5653 RF analog signal generator, PXIe-5820 vector signal transceiver, and PXIe-3622 vector signal up/down converter
Supports testing of 5G New Radio and various wireless/cellular standards including Wi-Fi 6
Two configurable setups: millimeter-wave frequencies and intermediate frequencies
Operates in frequency range of 5 to 21 GHz
Fast measurement speeds ideal for production environments

System Configuration

The PXIe-5831 represents a complete instrument suite rather than a single device. System requirements include:

For intermediate frequencies: Includes vector signal transceiver and vector signal up/down converter

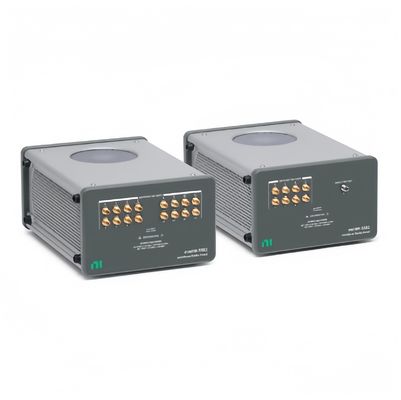

For millimeter-wave frequencies: Requires vector signal transceiver, analog signal generator, one or two millimeter-wave RF heads, and vector signal up/down converter
Requires PXI Express chassis and PXI Express embedded controller

Recommended Configuration: National Instruments suggests using PXIe-1092 or PXIe-1095 chassis for optimal performance. Modules can be deployed in PXI Express hybrid slots, system timing slots, or peripheral slots.

Technical Specifications

Part Numbers	786853-01 and 786856-01
Frequency Range	5 to 21 GHz
Bandwidth	1 GHz
Components	PXIe-5653, PXIe-5820, PXIe-3622
Applications	5G NR, Wi-Fi 6, wireless and cellular standards testing
