National Instruments PXIe-5832 PXI Vector Signal Transceiver with 5 GHz to 44 GHz Frequency Range and 1 GHz Instantaneous Bandwidth

Large Image : National Instruments PXIe-5832 PXI Vector Signal Transceiver with 5 GHz to 44 GHz Frequency Range and 1 GHz Instantaneous Bandwidth

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-5832

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXIe-5832 PXI Vector Signal Transceiver with 5 GHz to 44 GHz Frequency Range and 1 GHz Instantaneous Bandwidth

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-5832
Highlight:	44GHz Frequency Range Vector Signal Transceiver , National Instruments PXIe-5832 , Customizable National Instruments PXIe-5832

Customizable Support National Instruments PXIe-5832 PXI Vector Signal Transceiver

The National Instruments PXIe-5832 (Part Numbers: 787725-01, 787726-01, 787727-01, 787728-01, 787729-01, 787730-01, 787731-01) is a vector signal transceiver designed to provide FPGA-based processing for various applications. This RF communications instrument combines the functionality of a vector signal analyzer and vector signal generator, operating in frequency ranges from 5 GHz to 21 GHz and 22.5 GHz to 44 GHz. The PXIe-5832 enables half-duplex stimulus and response measurements.

Key Features:

FPGA-based processing capability

Combines vector signal analyzer and generator functionality

Operates in 5 GHz to 44 GHz frequency range

1 GHz instantaneous bandwidth

Multiple multi-port configurations available

Integrated millimeter-wave switching technology

Configuration Options:

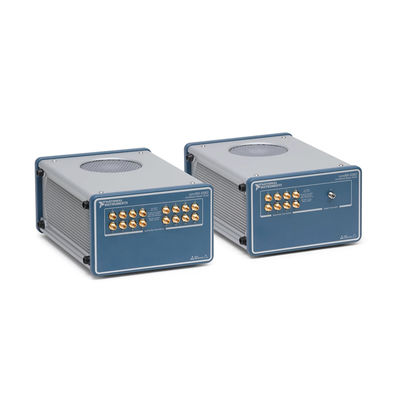

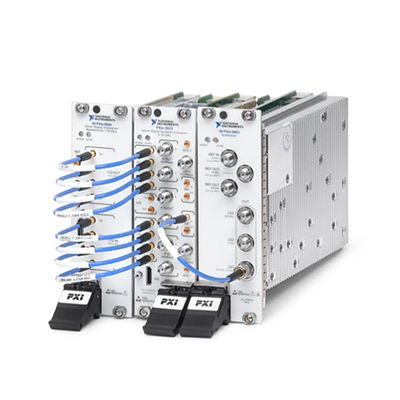

The PXIe-5832 is available in two versions: Intermediate Frequency (IF) only or both IF and millimeter-wave (mmWave) functionality. The IF-only configuration combines the NI PXIe-5820 and NI PXIe-3623 modules. For IF and mmWave setups, these modules are used with PXIe-5653 and one or two mmRH-5582 millimeter-wave RF heads for optimal performance.

Technical Specifications:

Specification	Value
RF Generator Frequency Range	5 GHz to 44 GHz
RF Generator Instantaneous Bandwidth	1 GHz
RF Analyzer Frequency Range	5 GHz to 44 GHz
RF Analyzer Instantaneous Bandwidth	1 GHz
I/O Type	RF Millimeter Wave

Recommended System Configuration:

For optimal performance and accuracy, it is recommended to use the PXIe-5832 with PXIe-1095 or PXIe-1092 chassis. Three instrument driver software options are available for programming the PXIe-5832: RFmx, NI-RFSA, and NI-RFSG.

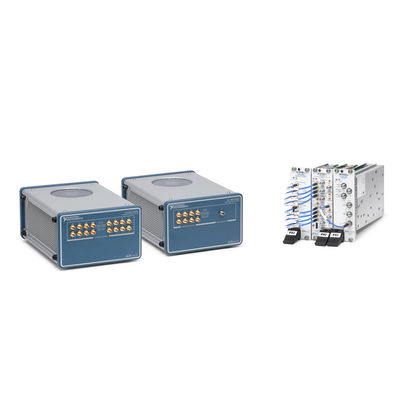

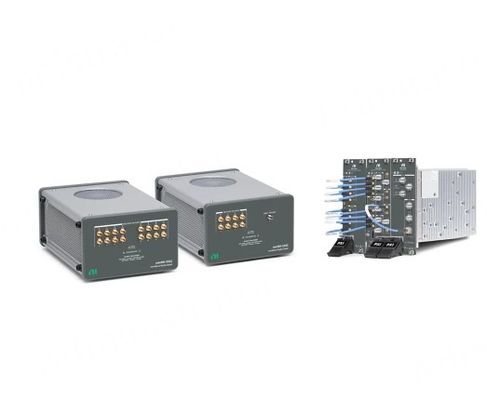

Product Images:
