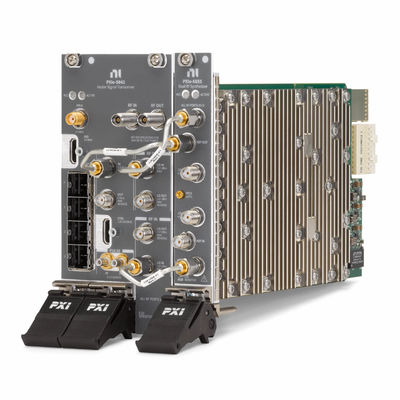

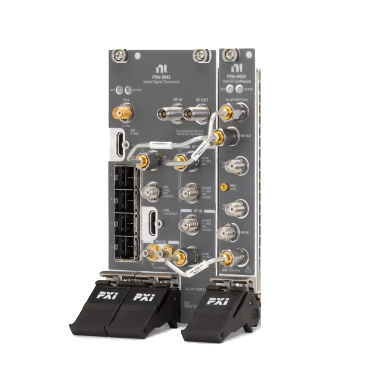

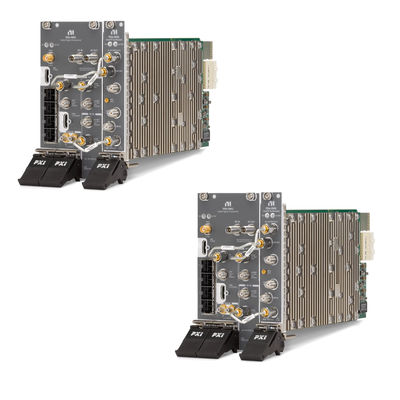

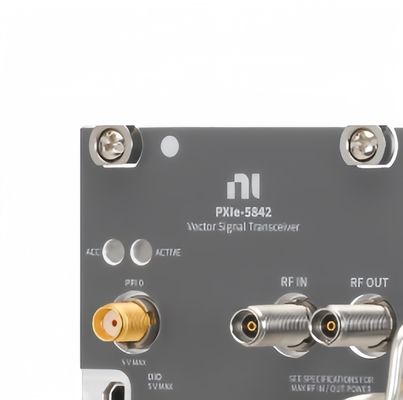

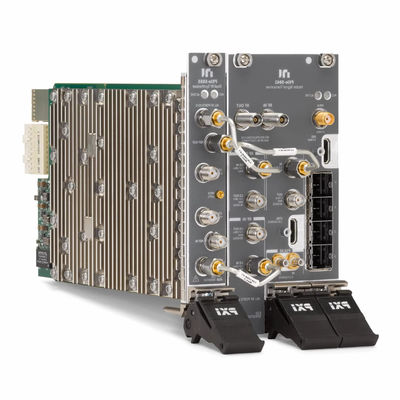

PXIe-5842 Ni Vector Signal Transceiver 54GHz 23GHz 12GHz For OEM Applications

Large Image : PXIe-5842 Ni Vector Signal Transceiver 54GHz 23GHz 12GHz For OEM Applications

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-5842

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

PXIe-5842 Ni Vector Signal Transceiver 54GHz 23GHz 12GHz For OEM Applications

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-5842
Highlight:	PXIe-5842 Ni Vector Signal Transceiver , 54GHz Ni Vector Signal Transceiver , National Instruments PXIe-5842

Customized Support National Instruments PXIe-5842 PXI Vector Signal Transceiver for OEM Applications

The National Instruments PXIe-5842 is a powerful vector signal transceiver that combines signal generation and analysis in one four-slot PXI Express instrument. Designed for seamless integration into existing test systems, it supports up to four PXIe-5842 VSTs in a single 18-slot PXI chassis.

Key Features

Combined vector signal generation and analysis in a single instrument
Supports multiple PXIe-5842 VSTs in one chassis (up to four in 18-slot)
Interconnected operation with PXIe-5655 module
Ideal for semiconductor, aerospace, and defense applications
Fast measurement speed with compact form factor
FPGA-based real-time signal processing and control
Superior EVM performance for Wi-Fi 7 and 5G NR testing
Multiple frequency variants available (8 GHz to 54 GHz)

Technical Specifications

Model	National Instruments PXIe-5842 PXI Vector Signal Transceiver
Part Numbers	788566-02 (54 GHz), 788565-01 (23 GHz), 788565-02 (12 GHz), 788565-03 (8 GHz)
Form Factor	Four-slot PXI Express
Programming Support	LabVIEW, LabWindows/CVI, C/C++, C# (.NET), InstrumentStudio
Driver Support	RFmx, NI-RFSG, NI-RFSA

System Integration

The PXIe-5842 features high-quality drivers with robust APIs for instrument control and measurement. Its modular design and scalability make it ideal for streamlining signal testing processes in both production and R&D environments.

Important: For optimal performance, ensure proper driver installation and follow specific module installation sequence. Verify your PXI Express chassis meets power and cooling requirements.
