Customizable National Instruments PXIe-6378 PXI Multifunction I/O Module with 3.571 MS/s Sampling Rate, 16-bit Resolution, and 4 Analog Output Channels

Large Image : Customizable National Instruments PXIe-6378 PXI Multifunction I/O Module with 3.571 MS/s Sampling Rate, 16-bit Resolution, and 4 Analog Output Channels

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-6378

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

Customizable National Instruments PXIe-6378 PXI Multifunction I/O Module with 3.571 MS/s Sampling Rate, 16-bit Resolution, and 4 Analog Output Channels

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-6378
Highlight:	National Instruments PXIe-6378 , 16 bit Resolution Data Acquisition Device , 4 Analog Output Channels PXIe-6378

Customizable National Instruments PXIe-6378 PXI Multifunction I/O Module for OEM Applications

The National Instruments PXIe-6378 (Part Number: 781476-01) is a versatile data acquisition device designed for industrial applications, featuring precise timing capabilities with independent analog and digital timing engines, re-triggerable measurement tasks, and advanced NI-STC3 timing and synchronization technology.

Key Features

High-Speed Analog Input: 16 differential channels with 16-bit resolution at 3.571 MS/s sampling rate
Precision Timing: 100 MHz timebase with 10 ns timing resolution and ±50 ppm sampling rate accuracy
Analog Output: 4 channels at 3.3 MS/s update rate with 16-bit resolution
Digital I/O: 48 bidirectional channels with individual direction control
Counters/Timers: Four 32-bit counters for precise measurement and control
Advanced Triggering: Supports analog edge, window, and multiple trigger modes
Data Transfer: Built-in FIFO buffers with PIO and DMA (scatter-gather) support
Protection: ±36 V overvoltage protection on analog inputs

Applications

Ideal for high-energy physics, IF digitization, transient recording, telecommunications manufacturing test (ISDN, ADSL, POTS), ultrasonic and sonar testing, and various industrial measurement applications.

Technical Specifications

Specification	Value
Analog Input Resolution	16-bit
Max Sampling Rate	3.57 MS/s per channel
Analog Output Channels	4
Max Update Rate	3.3 MS/s per channel
Digital I/O Channels	48 bidirectional
Counters/Timers	4 (32-bit)
Analog Input FIFO Buffer	12268 samples
Analog Input Absolute Accuracy	2688 μV
Bus Connector	PXI Express

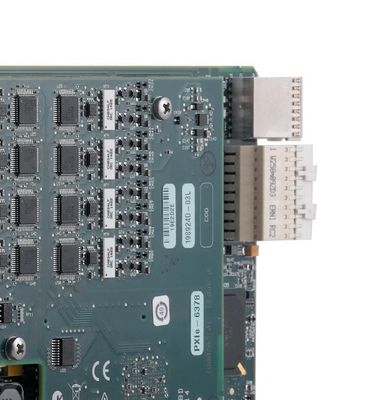

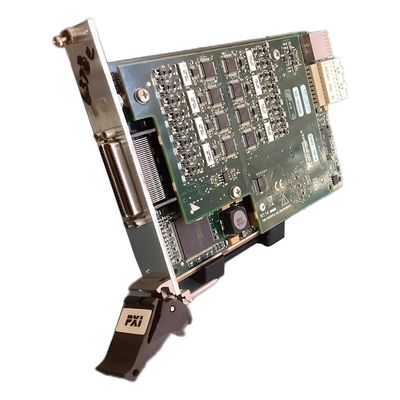

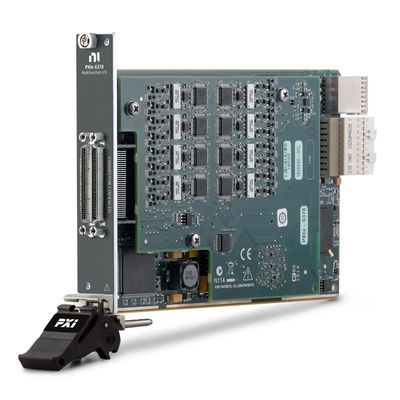

Product Images

Additional Information

The PXIe-6378 includes NI-DAQmx drivers and configuration utilities for easy setup and measurement. The device supports simultaneous sampling and offers flexible input ranges (-10 V to +10 V) with ±36 V overvoltage protection.
