National Instruments SbRIO-9265 C Series Current Output Module with 4-channel 0-20 mA Range and 100 kS/s per Channel for CompactRIO

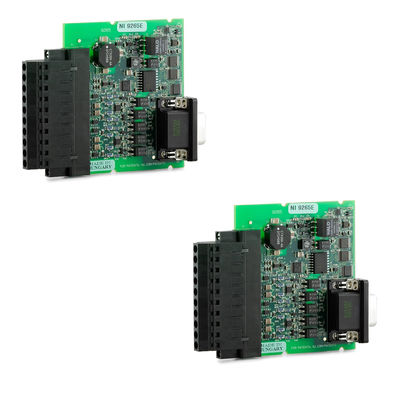

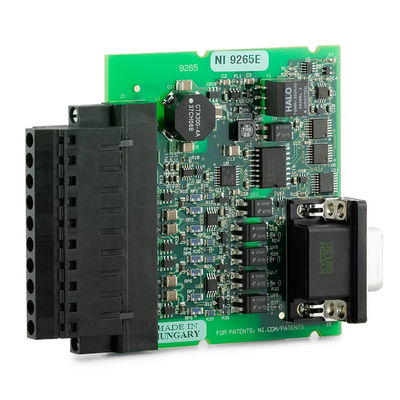

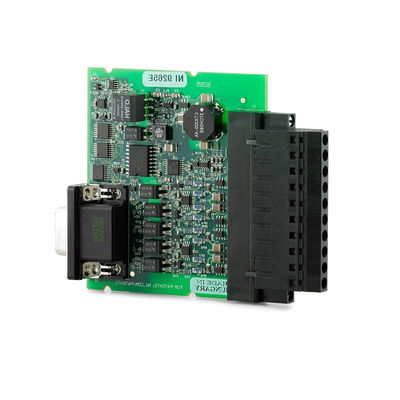

Large Image : National Instruments SbRIO-9265 C Series Current Output Module with 4-channel 0-20 mA Range and 100 kS/s per Channel for CompactRIO

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	sbRIO-9265

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,100/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments SbRIO-9265 C Series Current Output Module with 4-channel 0-20 mA Range and 100 kS/s per Channel for CompactRIO

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	SbRIO-9265
Highlight:	4 channel Current Output Module , 20mA range C Series Module , 100kS/s per channel SbRIO-9265 Module

Customized National Instruments SbRIO-9265 C Series Current Output Module

Industrial-Grade Current Output Solution

The National Instruments sbRIO-9265 C Series Current Output Module (Part Number: 780921-01) is a high-performance, 4-channel current output module designed for industrial automation and control applications. This module features integrated open-loop detection for enhanced system safety and reliability.

Key Features

4 independent current output channels (0-20 mA range)
Dedicated digital-to-analog converter (DAC) per channel
Integrated open-loop detection for system safety
10-position removable screw terminal connector
Built-in overvoltage (±40V) and short-circuit protection
Supports up to 100 kS/s per channel update rate
Compatible with CompactRIO hardware platforms

Technical Specifications

Specification	Detail
Analog Output Channels	4
Output Current Range	0 mA to 20 mA
Maximum Update Rate	100 kS/s per channel
Maximum Current Output	21.0 mA
Maximum Load	600 ohm
Connection Type	Screw terminal
Conformal Coating	None
Sealed	None

Operation Details

The sbRIO-9265 requires an external power supply with dedicated terminals for power connections. Each output channel features a common terminal and can drive separate loads. The module ensures 0.0 mA current output during startup and shutdown sequences for safe operation.

Industrial Applications

Ideal for controlling industrial actuators and high-frequency applications where precise current output is required. The module's robust design and safety features make it suitable for demanding industrial environments.
