National Instruments TS-15120 TestScale Digital I/O Module with 16-bit ADC and DAC and 3 Months Warranty

Large Image : National Instruments TS-15120 TestScale Digital I/O Module with 16-bit ADC and DAC and 3 Months Warranty

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	TS-15120

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments TS-15120 TestScale Digital I/O Module with 16-bit ADC and DAC and 3 Months Warranty

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	TS-15120
Highlight:	National Instruments TS-15120 , TS-15120 TestScale Module , TS-15120 Signal Generator Module

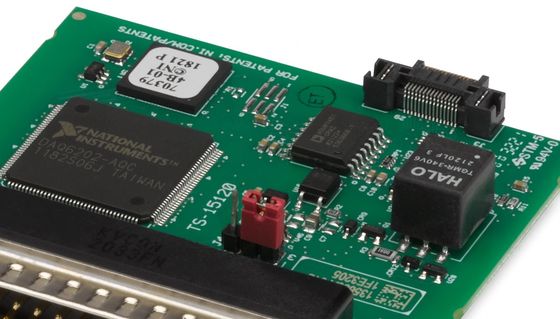

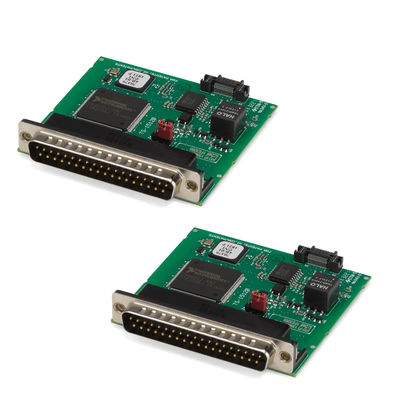

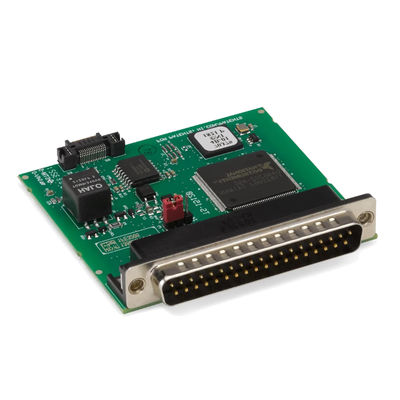

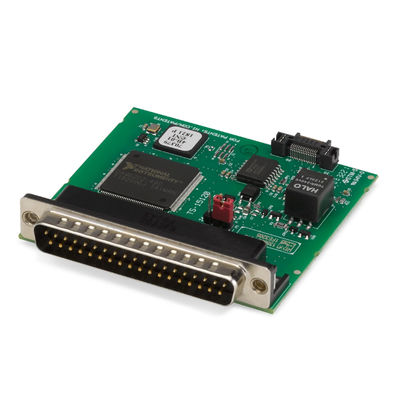

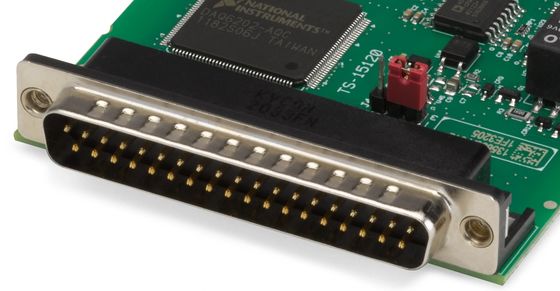

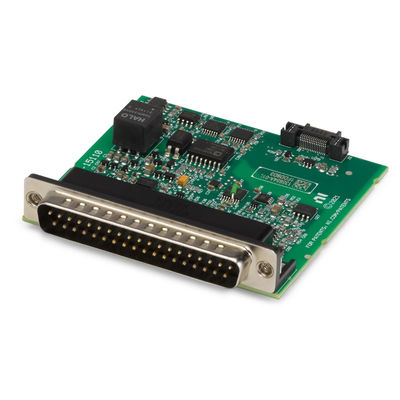

OEM Supported National Instruments TS-15120 TestScale Digital Input/Output Module

The National Instruments TS-15120 TestScale Digital Input/Output Module (Part No. 788271-01) is designed for complex measurement and control applications. This high-performance module features multiple analog and digital channels, delivering precise data acquisition and signal output capabilities for industrial and research environments.

Key Features

4 differential or 8 single-ended analog input channels
4 analog output channels with high-resolution 16-bit ADC and DAC
Sampling rate up to 100 kS/s per channel
8 digital I/O channels for versatile applications
Input ranges: ±10V, ±5V, ±1V, ±0.2V
Output ranges: ±10V, ±5V, ±2.5V
Input impedance > 10 GΩ with 250 Vrms isolation voltage
Low power consumption (max 6W)
Operating temperature: 0°C to 55°C

Technical Specifications

Feature	Description
Channels	32-channel, 5V/3.3V digital I/O module
Compatibility	Supports common Linux distributions and NI software (TestStand, LabVIEW, SystemLink)
Drivers	Includes NI-DAQmx with sample code for Python, C/C++, .NET, LabVIEW
Applications	TTL I/O, LED/button testing, short-circuit tests, event counting, PWM

Industrial Applications

The TS-15120 excels in demanding environments including aerospace, defense systems, and advanced research projects. Its robust design and precise measurement capabilities make it ideal for critical testing applications.

Integration & Expansion

The modular design of the TS-15120 allows for easy system integration and expansion. With support for multiple programming languages and NI software ecosystems, it provides a flexible solution for diverse testing requirements.
