National Instruments TS-15130 TestScale Digital Output Module with 32 Channels and 60 VDC for OEM Customization

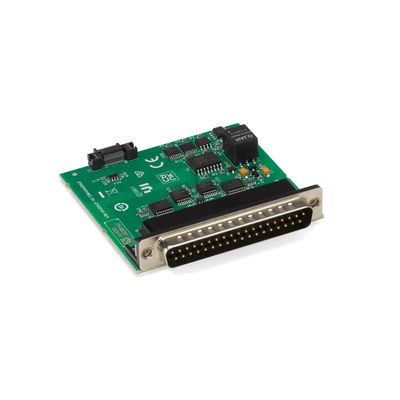

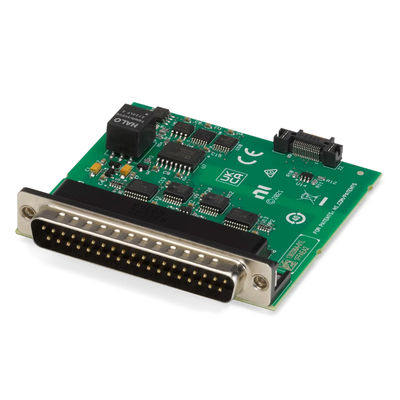

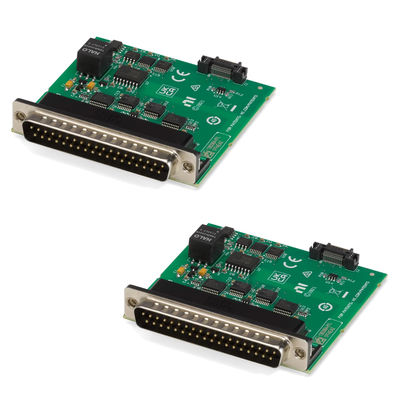

Large Image : National Instruments TS-15130 TestScale Digital Output Module with 32 Channels and 60 VDC for OEM Customization

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	TS-15130

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments TS-15130 TestScale Digital Output Module with 32 Channels and 60 VDC for OEM Customization

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	TS-15130
Highlight:	TS-15130 TestScale Digital Output Module , 32 Channels Digital Output Module , 60 VDC TestScale Digital Output Module

Customized National Instruments TS-15130 TestScale Digital Output Module for OEM and B2B Needs

国家仪器 TS-15130 测试标尺数字输出模块 (Part Number: 788272-01) is a modular and scalable solution for measurement and control applications. Designed for complex environments including aerospace, defense, and advanced research, this TestScale system integrates digital I/O, signal conditioning, and data collection into a single platform.

Key Features

32-channel, 60 VDC TestScale digital output module
4 analog output channels and 8 differential/single-ended analog input channels
High-speed sampling at up to 100 kS/s per channel
16-bit ADC and DAC for precise signal creation and data gathering
Multiple input/output ranges (±10V, ±5V, ±1V, ±0.2V, ±2.5V)
8 digital I/O channels for comprehensive connectivity
Operational temperature range: 0 to 55°C
Storage temperature range: -40 to 85°C
250 Vrms isolation voltage and >10 GΩ input impedance
Maximum power consumption: 6W

Applications

The TS-15130 provides digital output voltage signal generation for electrical functional testing applications. This module enables programmable voltage output generation for various signal types, making it ideal for demanding industrial and research environments.

Technical Specifications

Parameter	Specification
Channels	32 digital output
Analog Input Channels	8 (differential or single-ended)
Analog Output Channels	4
Resolution	16-bit ADC and DAC
Sampling Rate	Up to 100 kS/s per channel
Voltage Ranges	±10V, ±5V, ±1V, ±0.2V, ±2.5V
Isolation Voltage	250 Vrms
Input Impedance	>10 GΩ
