National Instruments PCI-6512 Digital I/O Device with 64 Digital Output Channels 100-Pin SCSI Connector and Programmable Input Filter

National Instruments PCI-6512 Digital I/O Device with 64 Digital Output Channels 100-Pin SCSI Connector and Programmable Input Filter
National Instruments PCI-6512 Digital I/O Device with 64 Digital Output Channels 100-Pin SCSI Connector and Programmable Input Filter National Instruments PCI-6512 Digital I/O Device with 64 Digital Output Channels 100-Pin SCSI Connector and Programmable Input Filter National Instruments PCI-6512 Digital I/O Device with 64 Digital Output Channels 100-Pin SCSI Connector and Programmable Input Filter National Instruments PCI-6512 Digital I/O Device with 64 Digital Output Channels 100-Pin SCSI Connector and Programmable Input Filter

Imagem Grande :  National Instruments PCI-6512 Digital I/O Device with 64 Digital Output Channels 100-Pin SCSI Connector and Programmable Input Filter

Detalhes do produto:
Lugar de origem: CHINA
Marca: National Instruments
Número do modelo: PCI-6512
Condições de Pagamento e Envio:
Quantidade de ordem mínima: Um
Preço: $1,000/sets >=1 sets
Detalhes da embalagem: Embalagem padrão
Tempo de entrega: Tempo de entrega para quantidade mínima de pedido ≤ 30 dias
Termos de pagamento: T/t ‌l/c
Habilidade da fonte: 100 unidades/dia
Contato Converse agora

National Instruments PCI-6512 Digital I/O Device with 64 Digital Output Channels 100-Pin SCSI Connector and Programmable Input Filter

descrição
Garantia: 3 meses suporte personalizado: OEM
Lugar de origem: americano brand name: National Instruments
Número do modelo: PCI-6512
Destacar:

64 Digital Output Channels Digital I/O Device

,

100-Pin SCSI Connector PCI-6512

,

Programmable Input Filter National Instruments Device

Customized OEM Support for National Instruments PCI-6512 Digital I/O Device
The Ultimate B2B Solution
The National Instruments PCI-6512 Digital I/O Device (Part Number: 778968-01) features programmable input filters that eliminate glitches, noise, and spikes in computer switching and transmission signals. This capability is essential for applications operating in noisy mechanical environments to prevent false readings caused by interference.
Key Features
  • Programmable input filters for noise elimination on each channel
  • NI-DAQmx driver software for full functionality access
  • Advanced programming technology with auto-code generation
  • Multi-threaded overflow technology for enhanced I/O performance
  • 100-pin high-density SCSI connector for flexible interfacing
  • 37-pin D-Sub connector for protected digital I/O connections
Technical Specifications
Bus Connector PCI
Bidirectional Digital Channels 0
Digital Input Channels 0
Digital Output Channels 64
Digital Input Voltage Range -
Output Voltage Range 0 V to 30 V
Maximum Clock Rate -
Current Drive per Single-Ended Digital I/O Channel 75 mA
Connection Options
The device offers multiple connection configurations:
  • 100-pin high-density SCSI connector compatible with 100-pin ribbon or shielded cable interfaces
  • CB-50LP or CB-50 connector blocks (CB-100 package) for unshielded applications
  • SCB-100 connector block with SH100-100-F shielded cable for protected I/O connections
  • 37-pin D-Sub connector with CB-37FH DIN-rail mount connector block for protected digital I/O
Product Images

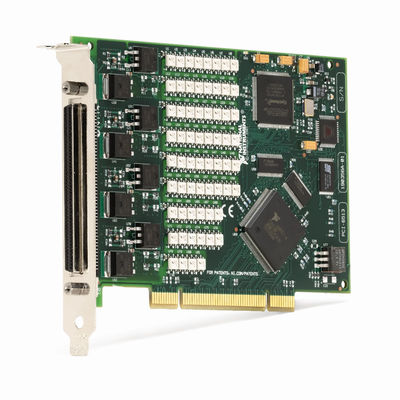

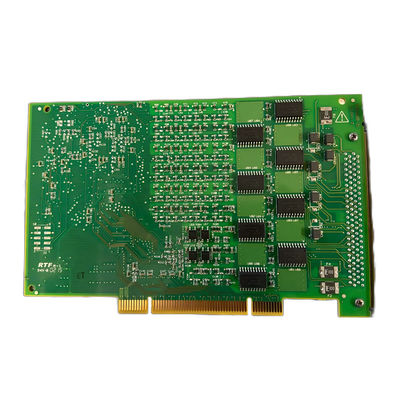

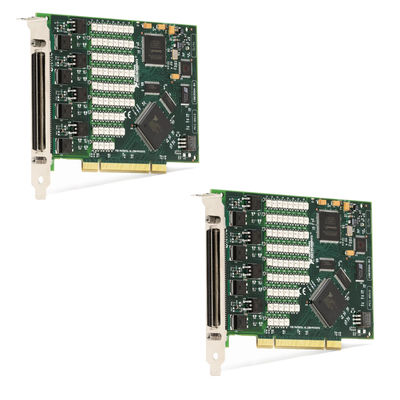

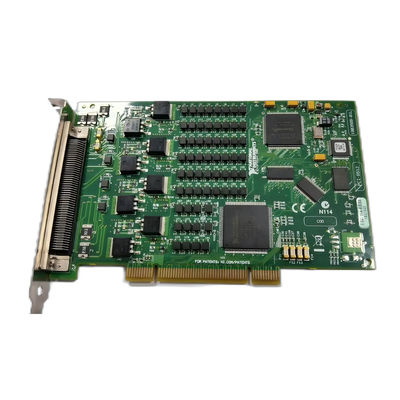

National Instruments PCI-6512 Digital I/O Device with 64 Digital Output Channels 100-Pin SCSI Connector and Programmable Input Filter 0 National Instruments PCI-6512 Digital I/O Device with 64 Digital Output Channels 100-Pin SCSI Connector and Programmable Input Filter 1 National Instruments PCI-6512 Digital I/O Device with 64 Digital Output Channels 100-Pin SCSI Connector and Programmable Input Filter 2
