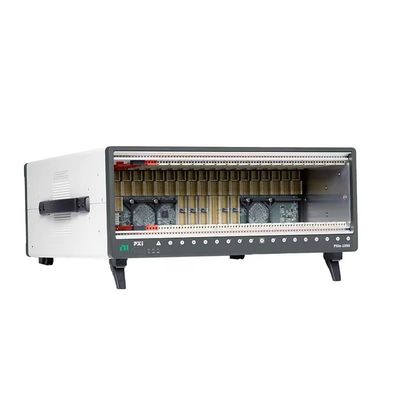

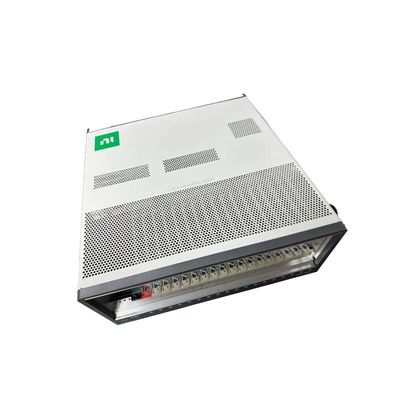

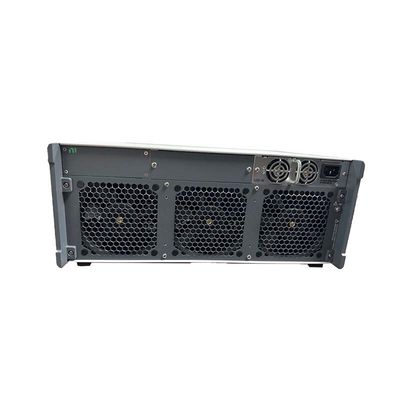

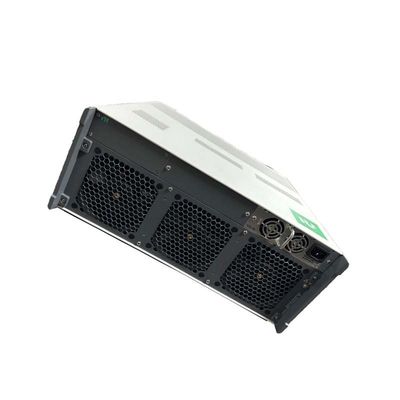

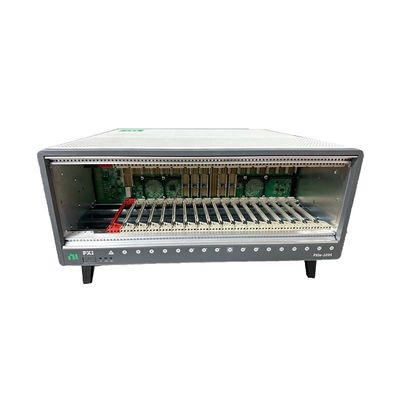

NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling

NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling
NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling

Large Image :  NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-1095
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $14,354/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling

Description
Warranty: 3 Month Customized Support: OEM
Place Of Origin: American Brand Name: NI
Model Number: PXIe-1095 Name: Eighteen-Slot Chassis 785971-01 Two Hot-Swappable Power Supplies
Model: PXIe-1095
Highlight:

PXIe-1095 PXI Express Chassis

,

18 slot PXI Express Chassis

,

National Instruments PXIe-1095

NI PXIe-1095 Eighteen-Slot Chassis with Hot-Swappable Power Supplies
High-Performance PXIe Chassis for Advanced Test & Measurement
The PXIe-1095 chassis delivers superior performance with its high-bandwidth backplane, supporting up to 24 GB/s system bandwidth. Engineered for demanding test applications, it provides 18 slots (5 hybrid slots, 11 PXI Express slots, and 1 system timing slot) with 82W power and cooling capacity per slot.
NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling 0 NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling 1 NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling 2
Key Features
  • 18-slot PXIe chassis with hybrid compatibility
  • Dual hot-swappable power supplies for reduced MTTR
  • Optional timing upgrade with OCXO for enhanced clock accuracy
  • Supports external clock and trigger routing
  • High-bandwidth backplane (24 GB/s system bandwidth)
  • 82W power and cooling capacity per slot
Feature Specification
PXI Chassis Type PXIe
Chassis Power Supply Type AC
Number of Hybrid Slots 5
Number of PXI Express Slots 11
Redundant Hardware Option Yes
Maximum System Bandwidth 24 GB/s
System Timing Slot Yes
Slot Cooling Capacity 82 watts
Total Number of Slots 18
About Shenzhen Jinxi Boyuan Technology Co., Ltd.

We are a professional company specializing in the R&D, sales, and maintenance of Bluetooth RF test systems and solutions for radio frequency, microwave, and electronic testing instruments. With extensive experience in the instrumentation field, we provide high-quality testing solutions for aerospace, military, communications, and industrial applications.

NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling 3 NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling 4 NI PXIe-1095 Eighteen-Slot PXI Express Chassis with 24 GB/s System Bandwidth and 82 W Slot Cooling 5
Frequently Asked Questions
Who are we?

Shenzhen Jinxi Boyuan Technology Co., Ltd. specializes in Bluetooth RF test systems and solutions for radio frequency and electronic testing instruments.

How do we guarantee quality?

All products undergo comprehensive testing before shipment to ensure flawless performance.

What products do we offer?

We carry instruments from Keysight, Ceyear, Tektronix, Rohde & Schwarz, Agilent, Keithley, Anritsu, and Lecroy.

Why choose us?

We offer competitive pricing, overseas warehouse advantages for faster delivery, and excellent after-sales support.

What services do we provide?

We accept FOB, CIF delivery terms and multiple payment methods including T/T, L/C, MoneyGram, and Western Union.
