PCI-6517 Digital Io Module Electronic Test Instruments High Performance Versatile

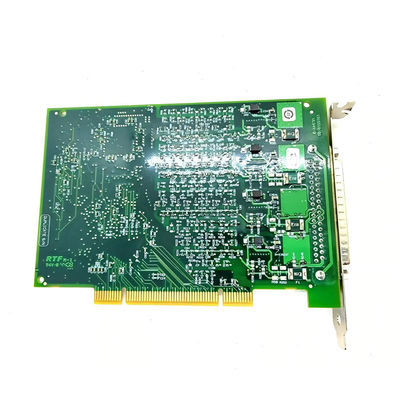

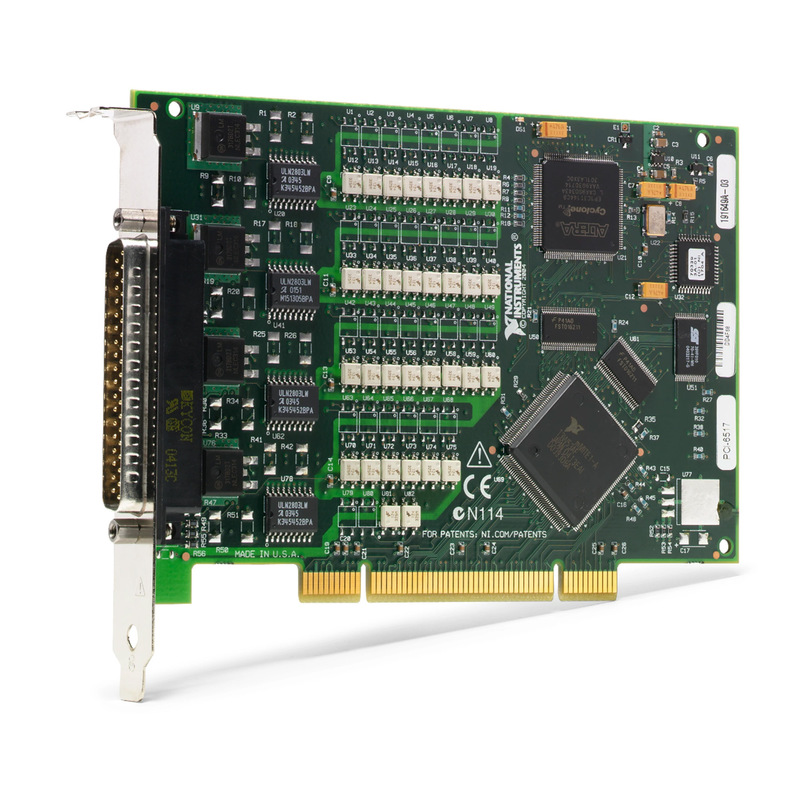

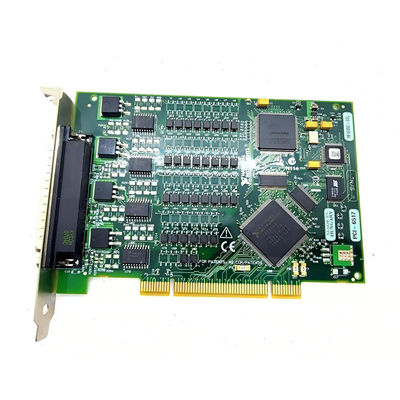

The NI PCI-6517 (Part Number: 779083-01) is a high-performance digital input/output device featuring 32 sinking output lines with bank isolation and ±30 VDC maximum switching voltage. Designed for versatile applications including general data acquisition, automated manufacturing testing, and industrial control systems.

• 32 digital output channels with ±30 VDC switching capability
• Bank isolation for enhanced signal integrity

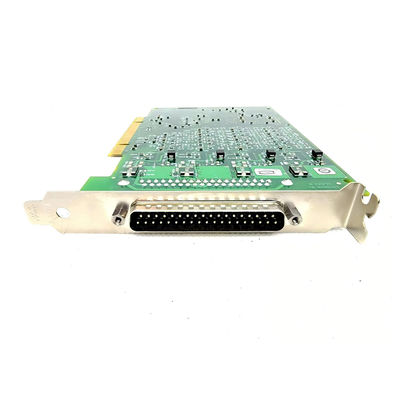

• 37-pin male DSUB I/O connector
• Integrated digital I/O watchdog for system reliability
• Change detection functionality for efficient event monitoring
• Programmable input filters for noise reduction
• Compatible with NI-DAQmx software and LabVIEW development environment

The PCI-6517 features a digital I/O watchdog that monitors for system faults including PCI bus failures, computer crashes, and application errors. When detected, the device automatically enters a safe recovery mode. The change detection capability enables low-processor usage triggering of applications following digital events.

The device is fully compatible with NI-DAQmx driver software, offering features like automatic code generation, DAQ Assistant, and multi-threaded streaming technology. Supports programming through LabVIEW, LabWindows/CVI, and other application development environments.
