National Instruments Digital Oscilloscope Probe CC05120X Customized OEM

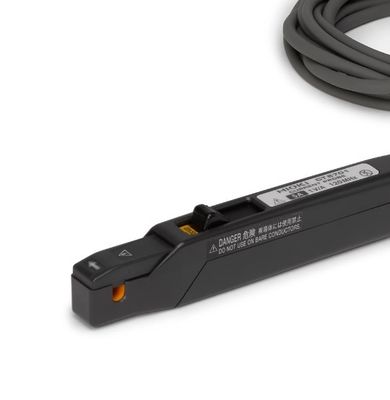

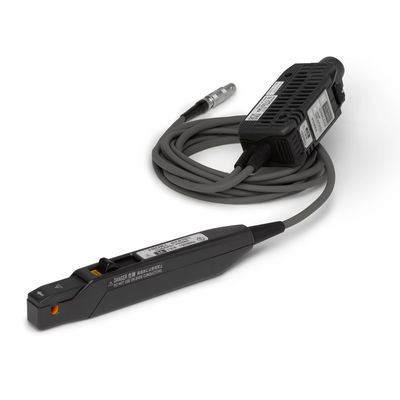

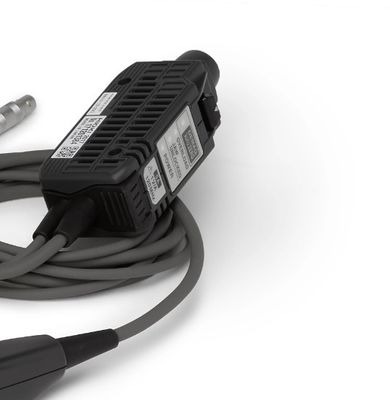

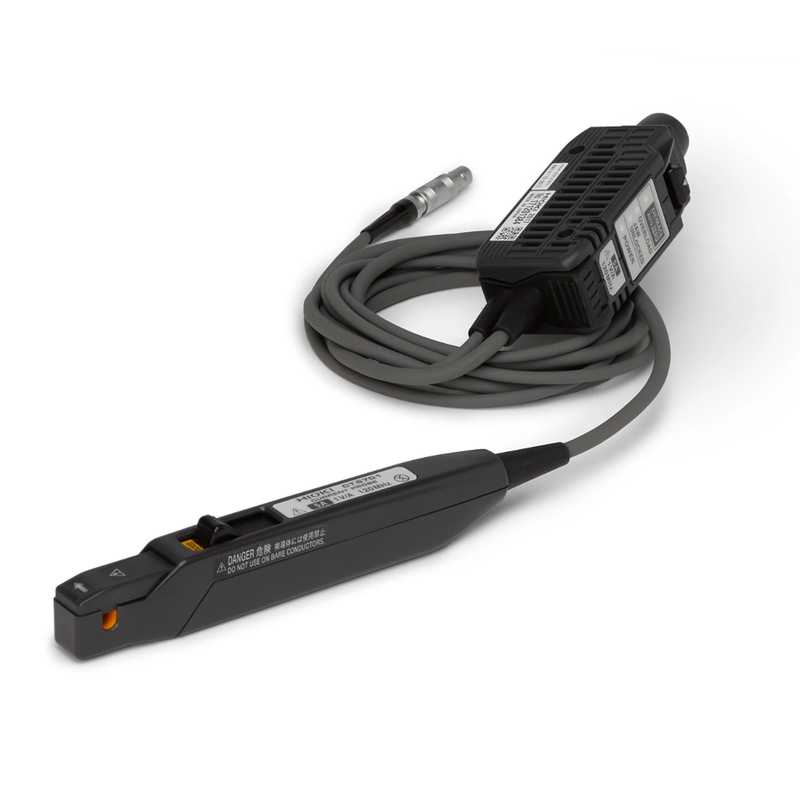

The National Instruments CC05120X (Part Number: 786847-01) is an externally powered oscilloscope probe manufactured by Hioki and distributed by National Instruments. Also known as the Hioki CT6701, this current probe offers precise measurements with a 120 MHz frequency range.

• Current probe type with 120 MHz measurement frequency
• Minimum current measurement capability of 5 Arms with high precision
• Clip-on design for easy attachment to conductors
• Wide frequency bandwidth (DC to 120 MHz)
• BNC connector compatibility with various oscilloscopes and recorders
• Ideal for measuring transient current signals in motor controllers, inverters, and switching power supplies

The CC05120X current probe is particularly effective for:

• Motor controller analysis
• Inverter performance testing
• Switching power supply evaluation
• Transient current signal measurement

This oscilloscope probe is compatible with various National Instruments oscilloscopes and can be used with equipment from other manufacturers that feature BNC connectors.
