Customized National Instruments NI-6584 Digital I/O Adapter Module 16RS-485/RS-422 Channels

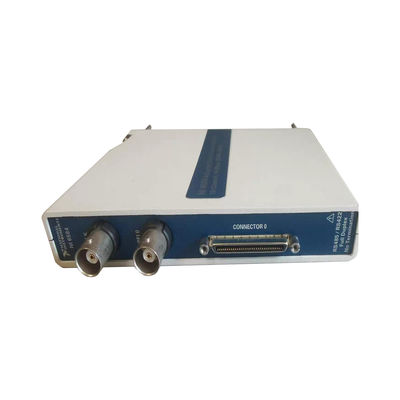

Large Image : Customized National Instruments NI-6584 Digital I/O Adapter Module 16RS-485/RS-422 Channels

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	NI-6584

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

Customized National Instruments NI-6584 Digital I/O Adapter Module 16RS-485/RS-422 Channels

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	NI-6584	Frequency Range:	20hz ~ 20khz Is Divided Into 3 Frequency Bands,9kHz ~ 6GHz,250kHz~67GHz,15MHz 30MHz 400MHz 50MHz 60MHz,25MHz
Oem:	Available,YES,MOQ>100pcs,OEM	Weight:	6.4 Kg,3Kg,<28kg
Dimensions:	364(W)112(H)420(D)mm,215(W)mm109(H)mm44.5(D)mm,19417968 MM	Product Name:	High Voltage Gps Signal Generator,DDS MFG-2125 Function Generator,Arbitrary Signal Generator
Warranty:	2 Years,1 Year	Frequency Resolution:	0.00000001Hz,0.001Hz
Output Signal:	0-24mA/0-12V/,4-20mA	Power Supply:	AC 220* ( 1 10 % ) V 50* ( 1 5 % ) Hz,3.7V Battery
Ce:	Yes,Test And Measurement	Ssb Phase Noise:	<-110dBc/Hz@1GHz,20KHz Carrier Offset(typical),0.001Hz
Frequency Accuracy:	±20ppm	Package:	Yes,Retail Package
Dimension:	804240mm,235mm110mm295mm	Display:	3.5-inch 480x320TFT LCD Screen,4 Inch TFT-LCD 480*320
Working Temp.:	0℃ ~+40℃	Square:	1μHz~30MHz
The Type Of Waveform:	Arbitrary Wave (including DC)	Display Size:	2.9 Inches & Under
Highlight:	National Instruments NI-6584 , Customized NI-6584 Module , National Instruments NI-6584 Module

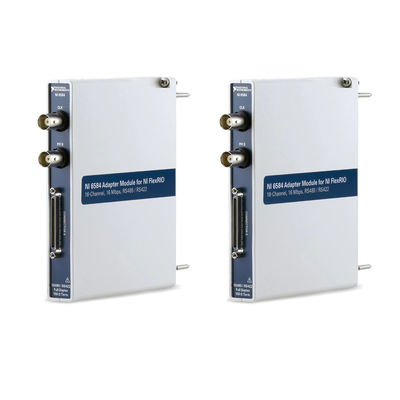

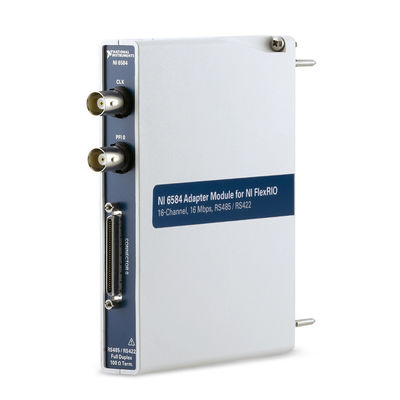

Customized OEM Support National Instruments 6584 Digital I/O Adapter Module for FlexRIO

The NI-6584 (Part numbers: 781290-01, 781290-03, and 781290-02) is a Digital I/O Adapter Module designed for FlexRIO systems. When paired with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO, it creates an advanced instrument for interfacing with 16 RX and TX sets of RS485 or RS422.

Key Features

16 bidirectional RS-485/RS-422 channels
Maximum clock rate of 100 MHz
Supports half or full duplex configurations
100 Ohm terminated or unterminated options
Maximum data rate of 16 Mbits/s
Compatible with Kintex-7 and Virtex-5 FPGAs
PCB mount connectors for reliable signal transmission
LabVIEW Module support for custom measurement and control

Technical Specifications

Specification	Detail
Number of bidirectional digital channels	16
Maximum clock rate	100 MHz
Logic levels and range	RS-422/RS-485
Compatible FPGAs	Kintex-7, Virtex-5
Maximum data rate	16 Mbits/s
Signaling type	Differential

Applications

The NI 6584 Digital I/O Adapter Module is ideal for continuous interfacing and examination of RS485 and RS422 interfaces, as well as other electrically compatible interfaces. It enables custom measurement and control applications including:

Custom triggering routines
Ultra-high-speed control systems
Digital protocol interfacing
Digital signal processing (DSP)
Applications requiring high-speed hardware reliability and tight determinism

System Integration

The module mates with NI FlexRIO FPGA modules for solid and deterministic control of digital communication. It offers a complete configuration solution for PXI systems and includes LabVIEW Module support for graphical development without requiring low-level hardware description languages.
