National Instruments PXI-2533 256-Crosspoint 1-Wire PXI Matrix Switch Module with ±55 VDC for OEM Applications

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXI-2533
Highlight:	National Instruments PXI-2533 , 1 Wire PXI-2533 , PXI-2533 National Instruments Matrix Switch

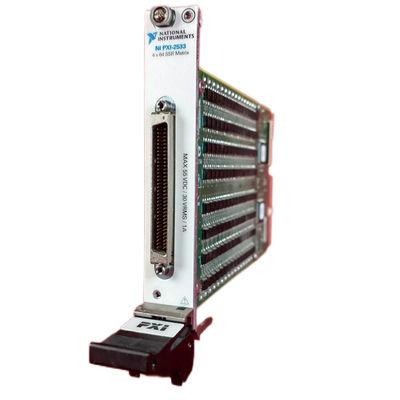

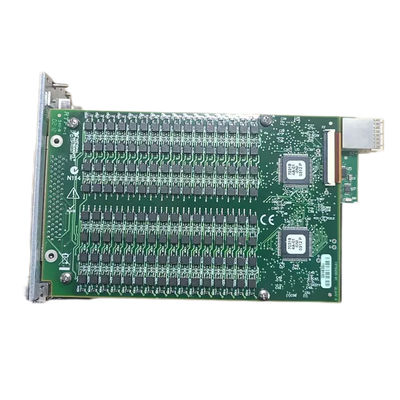

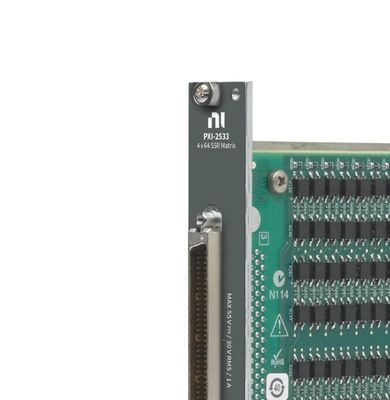

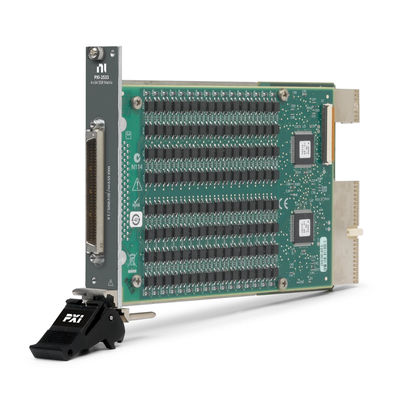

Customized National Instruments PXI-2533 PXI Matrix Switch Module for OEM Applications

The National Instruments PXI-2533 PXI Matrix Switch Module is a high-performance switching solution featuring solid-state relays (SSR) for reliable operation in test and measurement applications.

Product Overview

The National Instruments PXI-2533 (Part Number: 778572-33) is a 1-Wire, 256-Crosspoint PXI matrix switch module known for its exceptional reliability due to solid-state relays with unlimited mechanical life. This module offers ±55 VDC, 30 VACrms maximum switching voltage, 55 W maximum switching power, and 1 A maximum switching current.

Key Features

256 crosspoints with 400 switches/second scanning rate
Solid-state relays with unlimited mechanical life
1.5 MHz typical bandwidth in 50 Ω systems
724 µs typical response time (2.5 ms maximum)
Programmable trigger output with 70 ns minimum pulse width
68-pin SCSI-type male connector for I/O
1-Wire 4 × 64 matrix topology configuration

Technical Specifications

Crosspoints:

256

Scan Rate:

400 switches/second

Max DC Switching Current:

1 A

Max DC Switching Voltage:

55 V

Rows:

Relay Type:

Solid-state

Switching Bandwidth:

1.5 MHz

Columns:

Electrical Characteristics

Parameter	Value
Typical DC Isolation Resistance	>2 GΩ
Row-to-Column Path Resistance	2 µV (typical), 1 Ω (typical)
Power Consumption	8W at 5V, 1W at 3.3V

Physical Specifications

Parameter	Value
Form Factor	3U, single-slot PXI module
Dimensions	21.6 × 2.0 × 13.0 cm
Connector Type	68-pin SCSI-type male

Overall Rating

4.7

Based on 50 reviews for this supplier
