PXI-2797 RF Multiplexer Switch Module Electronic Test Instruments With 40GHz Bandwidth

PXI-2797 RF Multiplexer Switch Module Electronic Test Instruments With 40GHz Bandwidth
PXI-2797 RF Multiplexer Switch Module Electronic Test Instruments With 40GHz Bandwidth PXI-2797 RF Multiplexer Switch Module Electronic Test Instruments With 40GHz Bandwidth PXI-2797 RF Multiplexer Switch Module Electronic Test Instruments With 40GHz Bandwidth PXI-2797 RF Multiplexer Switch Module Electronic Test Instruments With 40GHz Bandwidth

Large Image :  PXI-2797 RF Multiplexer Switch Module Electronic Test Instruments With 40GHz Bandwidth

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXI-2797
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

PXI-2797 RF Multiplexer Switch Module Electronic Test Instruments With 40GHz Bandwidth

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXI-2797
Highlight:

PXI-2797 RF Multiplexer Switch Module

,

PXI-2797 Electronic Test Instruments

,

40GHz Bandwidth RF Multiplexer Switch Module

Customized OEM Support for National Instruments PXI-2797 RF Multiplexer Switch Module
The Ultimate B2B Buyer's Choice

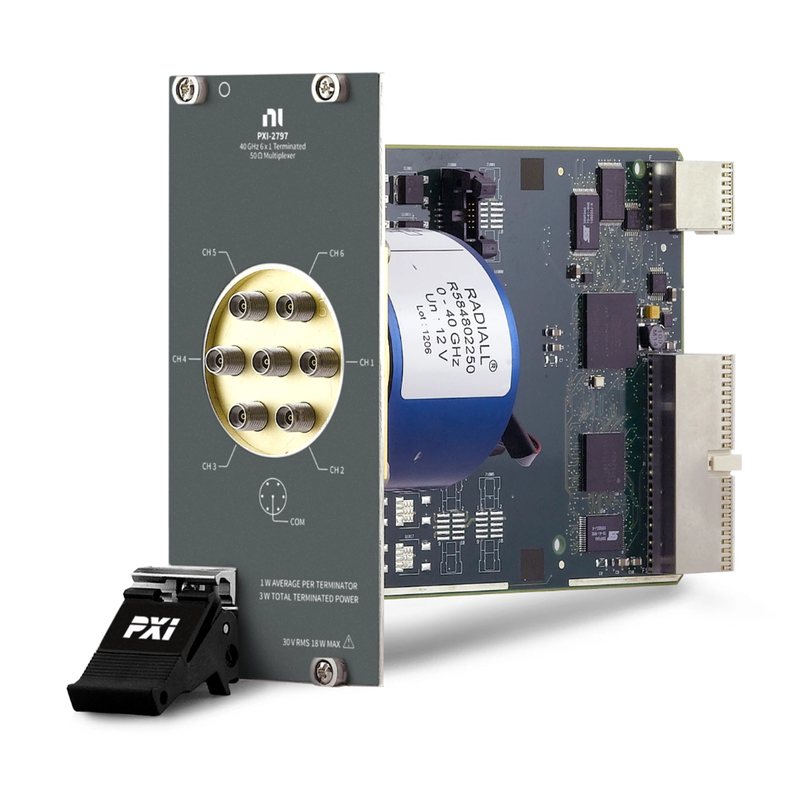

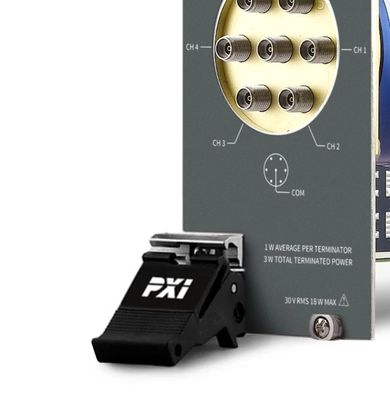

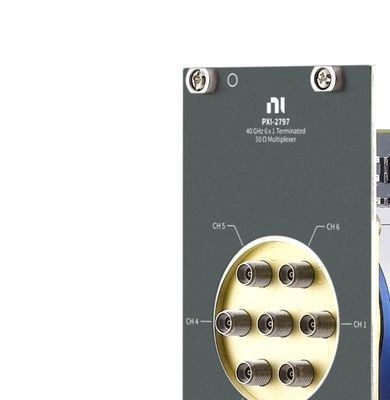

The National Instruments PXI-2797 RF Multiplexer Switch Module (Part Number: 782357-01) is a 6x1 terminal multiplexer switch module designed for routing RF or microwave signals in automated test applications.
Key Features:
  • Insertion loss less than 1 dB with frequency capability up to 40 GHz
  • Minimal signal impact at lower frequencies
  • Ideal for applications requiring high control signal reflection and 50 ohm termination
  • Compatible with RF upconverters like NI PXIe-5673 6.6 GHz RF Signal Generator
  • Works with RF downconverters such as NI PXIe-5663 6.6 GHz RF Signal Analyzer
  • Digital filtering capability to detect trigger pulses narrower than 150 ns

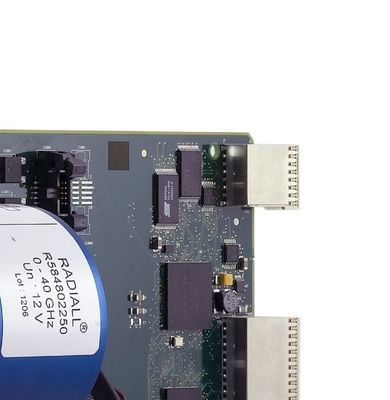

Module Architecture:
The NI PXI-2797 RF Multiplexer Switch Module features a row and column configuration that provides maximum flexibility in switching frameworks by allowing any channel to be associated with different channels. The module utilizes electromagnetic non-latching relays made of copper and gold, with 1 bank and 6 channels.
Advanced Capabilities:
This switch module offers sophisticated features including hardware triggering, relay health monitoring, onboard relay count tracking, and various reconfigurable models that enable users to adapt switching topology according to requirements. These advanced functions provide intelligent solutions for complex applications across industries from consumer electronics to aerospace.
Specification Value
Bus Connector PXI Hybrid
Maximum AC Switching Voltage 30 V
Relay Type Electromechanical
Switching Bandwidth 40 GHz
Characteristic Impedance 50 Ω
Maximum Insertion Loss -0.6 dB
Number of Channels 6
Number of Banks 1
Termination Yes
