Advanced PXIe-1486 Interface Module National Instruments ADAS For Automotive

Advanced PXIe-1486 Interface Module National Instruments ADAS For Automotive
Advanced PXIe-1486 Interface Module National Instruments ADAS For Automotive Advanced PXIe-1486 Interface Module National Instruments ADAS For Automotive Advanced PXIe-1486 Interface Module National Instruments ADAS For Automotive Advanced PXIe-1486 Interface Module National Instruments ADAS For Automotive Advanced PXIe-1486 Interface Module National Instruments ADAS For Automotive

Large Image :  Advanced PXIe-1486 Interface Module National Instruments ADAS For Automotive

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-1486
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

Advanced PXIe-1486 Interface Module National Instruments ADAS For Automotive

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXIe-1486
Highlight:

advanced PXIe-1486 Interface Module

,

PXIe-1486 National Instruments

,

PXIe-1486 Interface Module For Automotive

Customized Support National Instruments PXIe-1486 FlexRIO FPD-Link Interface Module OEM Compatible

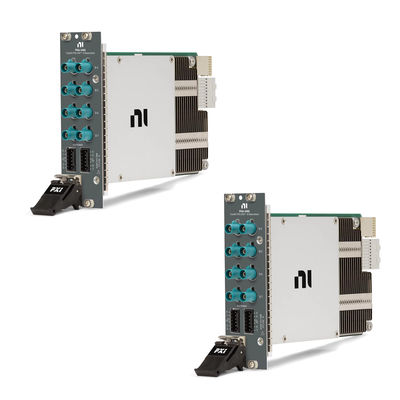

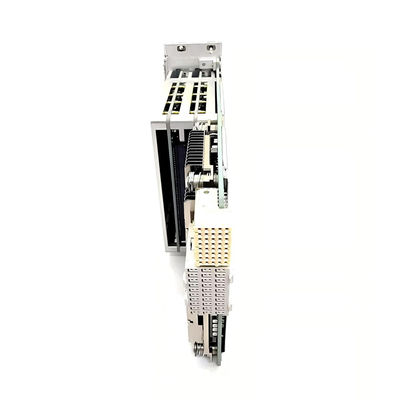

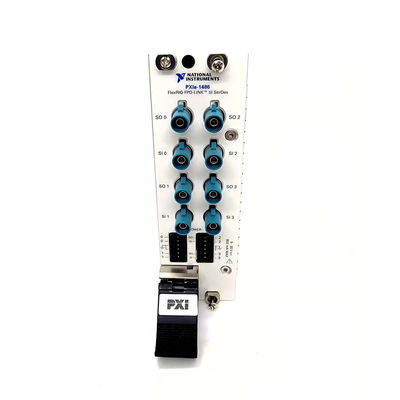

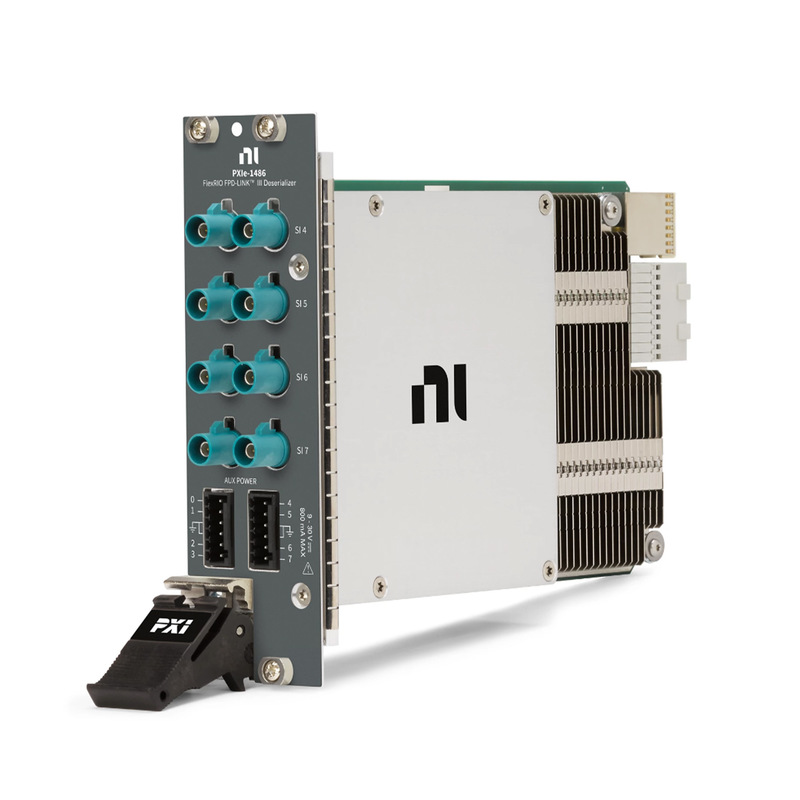

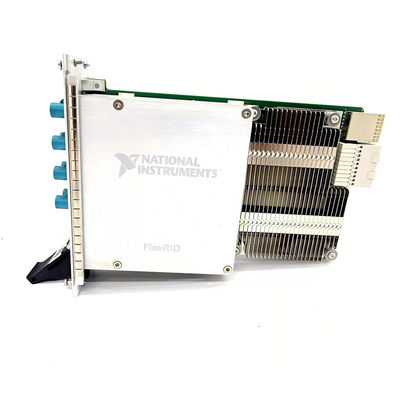

The National Instruments PXIe-1486 FlexRIO FPD-Link™ Interface Module provides a high-performance solution for vision and imaging applications requiring high throughput. This module integrates Texas Instruments' FPD-Link interface with Xilinx FPGA technology, making it ideal for automotive testing, hardware-in-the-loop simulations, and data logging applications.
Part Numbers 788712-01, 787453-01, 787454-01, 787455-01
Interface FPD-Link (Flat Panel Display-Link)
Primary Applications Automotive ADAS testing, autonomous driving sensor validation, hardware-in-the-loop, data logging
Key Features
  • Available in multiple configurations: 8-input deserializer (787453-01), 8-output serializer (787455-01), or 4-input/4-output combination (787454-01)
  • 4-lane CSI-2 interfaces with 800 Mbps per lane
  • Coaxial FAKRA Male Code Z connectors for all channels
  • Maximum data rate of 4.16 Gb/s
  • Reference clock speeds: 23-26 MHz (input) and 25-104 MHz (output)
  • Current requirements: 400 mA/channel (input) and 800 mA/channel (output)
  • Requires chassis with ≥58 W slot cooling capacity
  • Communication via GPIO, CSI-2, and I2C interfaces
Technical Specifications
The PXIe-1486 is particularly suited for automotive applications, providing a high-speed digital interface for testing advanced driver assistance systems (ADAS) and validating video sensors and electronic control units in autonomous driving development.
Advanced PXIe-1486 Interface Module National Instruments ADAS For Automotive 0 Advanced PXIe-1486 Interface Module National Instruments ADAS For Automotive 1 Advanced PXIe-1486 Interface Module National Instruments ADAS For Automotive 2 Advanced PXIe-1486 Interface Module National Instruments ADAS For Automotive 3
