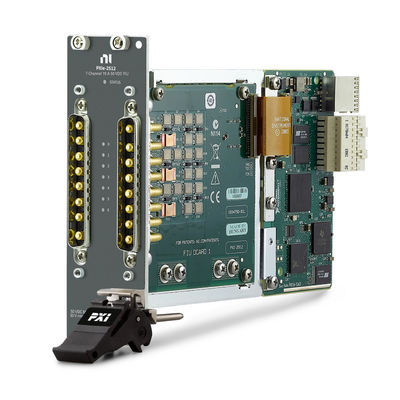

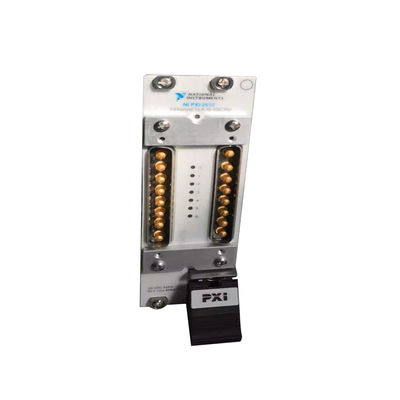

Customized PXIe-2512 PXI Signal Insertion Switch Module With 7 Test Channels 10A Current

The National Instruments PXIe-2512 PXI Signal Insertion Switch Module (Part Number: 780587-12) is a high-performance switching solution designed for advanced test applications. This module features built-in FET relays and offers seven independent test channels for versatile testing configurations.

• Built-in Fault Insertion Unit (FIU) for electronic reliability testing
• Capable of simulating open circuits or interrupted connections
• Supports Hardware-in-the-Loop (HIL) testing applications
• Allows individual channel pin shorting to battery voltage or ground
• Provides both continuous and pulsed current capabilities
• Includes overcurrent and overtemperature detection
• Compatible with LabVIEW Real-Time Module

The NI PXIe-2512 is ideal for testing control systems and engine control units, providing reliable performance for demanding test environments.
