PXIe-2532B PXI Matrix Switch Module National Instruments 2000 Switches/Sec 30MHz Bandwidth

Large Image : PXIe-2532B PXI Matrix Switch Module National Instruments 2000 Switches/Sec 30MHz Bandwidth

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-2532B

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

PXIe-2532B PXI Matrix Switch Module National Instruments 2000 Switches/Sec 30MHz Bandwidth

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-2532B
Highlight:	PXIe-2532B PXI Matrix Switch Module , National Instruments PXIe-2532B , 30MHz Bandwidth PXI Matrix Switch Module

Durable National Instruments PXIe-2532B PXI Matrix Switch Module with Customization Options

The National Instruments PXIe-2532B PXI Matrix Switch Module (Part Numbers: 782383-01, 153875A-01L) is a high-performance 512-crosspoint fast matrix switch module. Designed to fit within a 3U PXI slot, it delivers ultra-high-density switching configurations for automated test systems.

This module supports configurations up to 4x2176 or 8x1088 single-wire matrices in a single chassis, with capability for larger configurations through multi-chassis arrangements. Ideal for high-channel-count automated test setups.

Key Features

512 crosspoints with compact reed relays
Fast switching speed up to 2000 operations per second
Synchronization capability with instruments
Handles signals up to 100 VDC/100 Vp or 0.5 A
Maximum switching voltage between channels: 100V
Maximum switching power per channel: 10W
Over 10 matrix topology combinations available
Compatible with various terminal block accessories

Expansion Capabilities

For configurations larger than standard design, the NI R1616 segment expansion link can interconnect columns of two PXI 2532B modules through TB-264xB terminal blocks. For example, two PXI 2532B modules with two TB-2640B terminal blocks and an R1616 segment can create a 4x256 single-wire matrix.

Technical Specifications

Specification	Value
Crosspoints	512
Scan Rate	2000 operations/sec
Bus Connector	PXI Express
Maximum DC Switching Current	0.5 A
Maximum DC Switching Voltage	100 V
Rows	16, 2, 4, 8
Relay Type	Reed
Switching Bandwidth	30 MHz
Mode (n-wire)	1-wire, 2-wire
Groups	1, 16, 2, 4
Columns	128, 16, 32, 64
Dimensions	7.3 x 0.8 x 5.1 inches
Weight	1 lb

Reliability Information

The module features 40 simultaneous drive limit, with mechanical relay life of 1 × 10⁹ cycles and electrical relay life ranging from 1 × 10⁷ cycles to 5 × 10⁵ cycles. Equipped with 2 Samtec ERM8-EM series I/O connectors.

Applications

Ideal for high-channel-count applications requiring connection of measurement or signal generation instruments to different test points on devices under test (DUTs or UUTs).

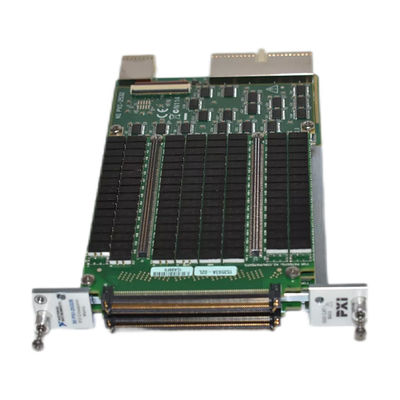

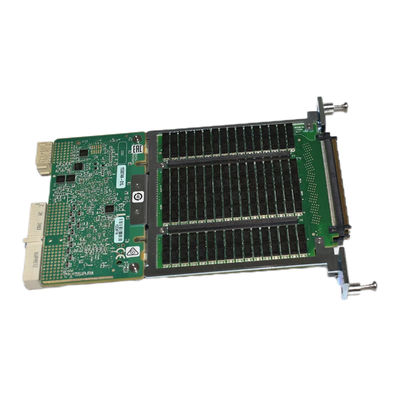

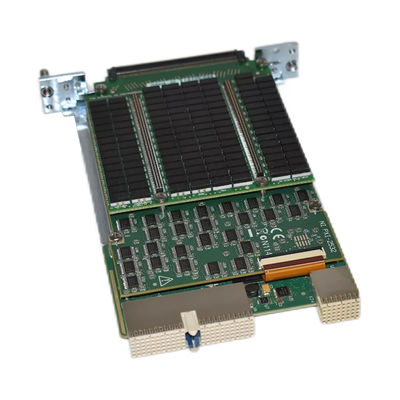

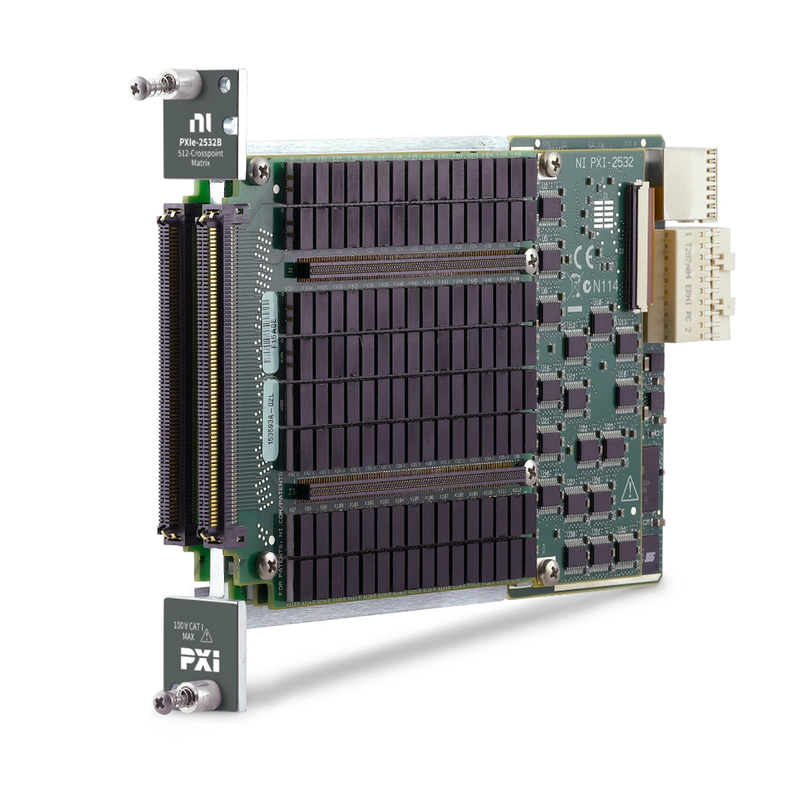

Product Images
