National Instruments PXIe-2593 RF Multiplexer Switch Module 16 Channels 500MHz Bandwidth

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-2593
Highlight:	PXIe-2593 RF Multiplexer Switch Module , National Instruments PXIe-2593 , 16 Channels RF Multiplexer Switch Module

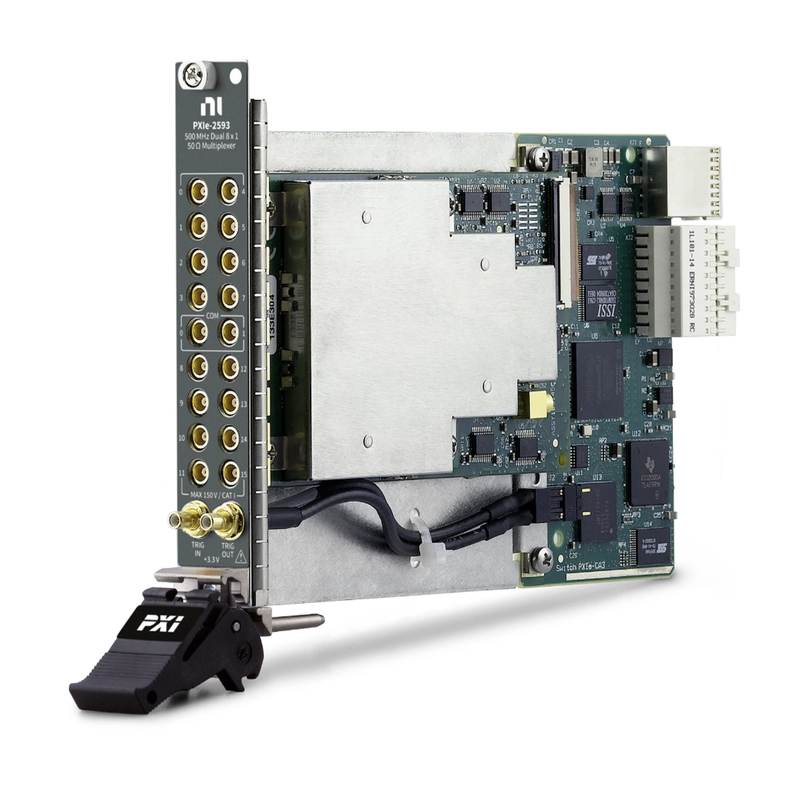

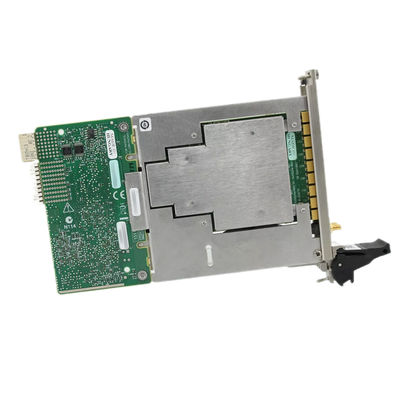

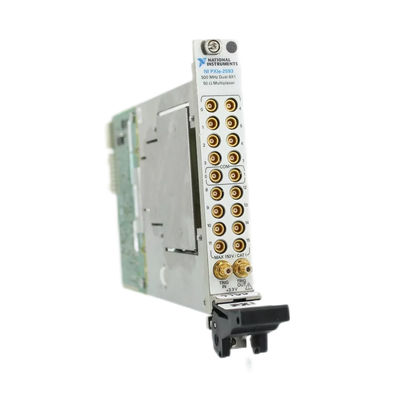

Customized Solutions with National Instruments PXIe-2593 PXI RF Multiplexer Switch Module

Product Overview

The National Instruments PXIe-2593 (Part Number: 780587-93) is a high-density, 50 Ω RF multiplexer switch module offering flexible configuration options. It can be configured as an unterminated multiplexer, externally terminated multiplexer, or as a sparse matrix, handling signals from DC to over 500 MHz.

Key Features

High channel count solution for signal generation applications
Connects to various test points on devices or units under test (DUTs/UUTs)
Simplifies wiring in automated test systems by routing multiple inputs to single output
16 channels with external 50 Ω MCX termination on half of channels
Configurable as four groups of 3×1 multiplexers
Minimum switching load: 10 μA, 10 mV
Maximum RF transmission power: 10 W to 500 MHz (per channel)

Technical Specifications

Bus Connector	PXI Express
Maximum AC Switching Voltage	150 V
Relay Type	Electromechanical
Switching Bandwidth	500 MHz
Characteristic Impedance	50 Ω
Maximum Insertion Loss	-1.9 dB
Number of Channels	16
Number of Groups	1
Termination	None

Integration Capabilities

The PXIe-2593 is designed for seamless integration with high-frequency instruments such as the NI PXI-5404 frequency generator and NI PXI-5112 high-speed digitizer. Its sparse matrix configuration capability allows flexible signal routing between any pair of channels or common ports.
