PXIe-2739 Matrix Switch Module Electronic Test Instruments 16x16 2 Wire Matrix 10MHz Bandwidth

PXIe-2739 Matrix Switch Module Electronic Test Instruments 16x16 2 Wire Matrix 10MHz Bandwidth
PXIe-2739 Matrix Switch Module Electronic Test Instruments 16x16 2 Wire Matrix 10MHz Bandwidth PXIe-2739 Matrix Switch Module Electronic Test Instruments 16x16 2 Wire Matrix 10MHz Bandwidth PXIe-2739 Matrix Switch Module Electronic Test Instruments 16x16 2 Wire Matrix 10MHz Bandwidth

Large Image :  PXIe-2739 Matrix Switch Module Electronic Test Instruments 16x16 2 Wire Matrix 10MHz Bandwidth

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-2739
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

PXIe-2739 Matrix Switch Module Electronic Test Instruments 16x16 2 Wire Matrix 10MHz Bandwidth

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXIe-2739
Highlight:

PXIe-2739 Matrix Switch Module

,

PXIe-2739 Electronic Test Instruments

,

10MHz Bandwidth Matrix Switch Module

Versatile National Instruments PXIe-2739 PXI Matrix Switch Module with Customized Support
The National Instruments PXIe-2739 PXI Matrix Switch Module (Part Number: 782835-39) is a high-density 16x16, 2-wire matrix switch module that uses electromagnetic relays to connect any channel to any other channel, providing maximum flexibility for switching systems.
Key Features
  • 16x16 high-density matrix configuration with 256 crosspoints
  • 2-wire switching capability with 10 MHz bandwidth
  • Electromagnetic relay technology for reliable operation
  • Includes soft front panel and LabVIEW API support
  • NI Switch Health Center option for relay health monitoring
  • Onboard relay count tracking and temperature sensors
  • Functional and resistive relay self-test capabilities
  • Scan rate of 1000 operations per second
Technical Specifications
Specification Value
Crosspoints 256
Bus Connector PXI Express
Maximum DC Switching Current 2 A
Maximum DC Switching Voltage 100 V
Rows 16
Relay Type Electromagnetic
Switching Bandwidth 10 MHz
Mode (n-wire) 2-wire
Groups 1
Columns 16
Environmental Specifications
The PXIe-2739 operates within a temperature range of 0°C to 55°C and relative humidity range of 10% to 90% (non-condensing). It can withstand random vibration of 0.3 grms (5 Hz to 500 Hz) during operation and 2.4 grms (5 Hz to 500 Hz) when not in operation.
Electrical Specifications
The matrix switch module has a maximum switching voltage of 100 V (channel-to-channel) and 100 V, CAT O (channel-to-ground). It is designed to transmit signals with less than 70 V rms, 100 V pk, or 100 V DC, and can withstand pulse voltages up to 500 V.
Applications
Ideal for automated test applications across various industries including consumer electronics, aerospace, and defense.
PXIe-2739 Matrix Switch Module Electronic Test Instruments 16x16 2 Wire Matrix 10MHz Bandwidth 0

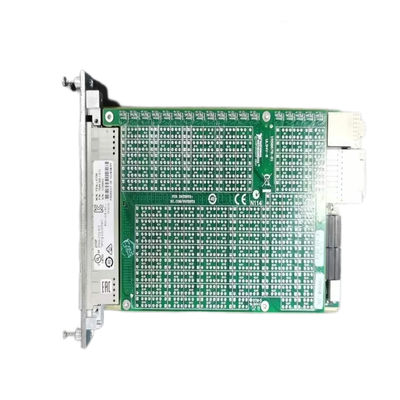

National Instruments PXIe-2739 PXI Matrix Switch Module
PXIe-2739 Matrix Switch Module Electronic Test Instruments 16x16 2 Wire Matrix 10MHz Bandwidth 1

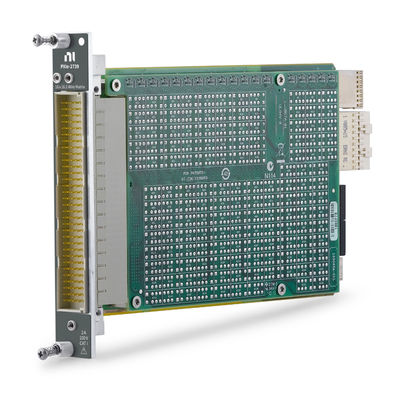

National Instruments PXIe-2739 PXI Matrix Switch Module
