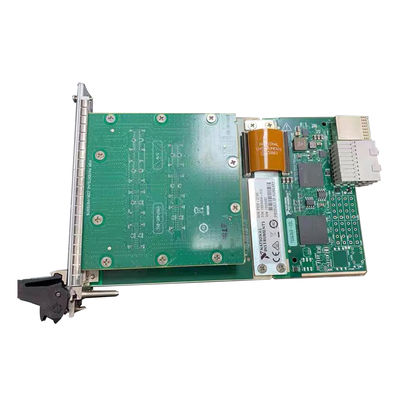

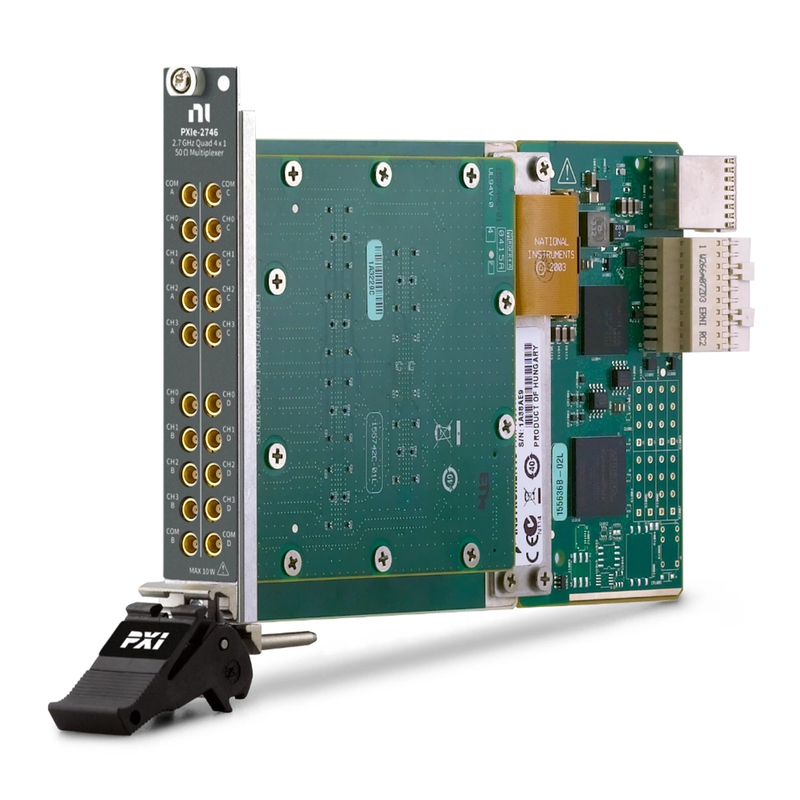

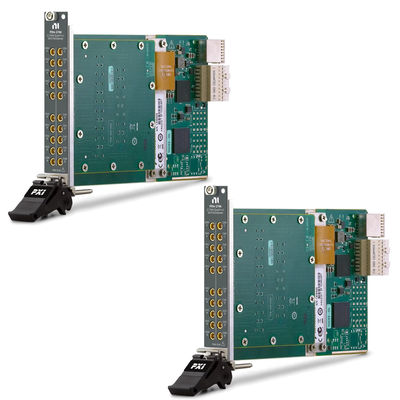

PXIe-2746 Customizable National Instruments 4 Channel 2.7 GHz Bandwidth 4 Bank

PXIe-2746 Customizable National Instruments 4 Channel 2.7 GHz Bandwidth 4 Bank
PXIe-2746 Customizable National Instruments 4 Channel 2.7 GHz Bandwidth 4 Bank PXIe-2746 Customizable National Instruments 4 Channel 2.7 GHz Bandwidth 4 Bank PXIe-2746 Customizable National Instruments 4 Channel 2.7 GHz Bandwidth 4 Bank

Large Image :  PXIe-2746 Customizable National Instruments 4 Channel 2.7 GHz Bandwidth 4 Bank

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-2746
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

PXIe-2746 Customizable National Instruments 4 Channel 2.7 GHz Bandwidth 4 Bank

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXIe-2746
Highlight:

PXIe-2746 Customizable National Instruments

,

PXIe-2746 RF Multiplexer Switch Module

,

4 Channel RF Multiplexer Switch Module

Customizable National Instruments PXIe-2746 PXI RF Multiplexer Switch Module
The National Instruments PXIe-2746 (Part Number: 780587-46) is a 4-bank, 4-channel RF multiplexer switch module designed for high-channel-count measurement applications. This versatile module is ideal for routing signals to various test points on devices or units under test (DUTs/UUTs).
Key Features
  • 4-channel RF multiplexer with 2.7 GHz switching bandwidth
  • Available with electromagnetic or FET relay options
  • Advanced features including hardware triggering
  • Ideal for complex applications in consumer electronics, aerospace, and defense industries
  • On-board relay count tracking capability
  • RF path calibration details can be saved to NI Switch Executive
Technical Specifications
Bus Connector PXI Express
Maximum AC Switching Voltage 30 V
Relay Type Electromagnetic
Switching Bandwidth 2.7 GHz
Characteristic Impedance 50 Ω
Maximum Insertion Loss 2.5 dB
Number of Channels 4
Number of Banks 4
Termination None
Electrical Characteristics
  • All inputs accept DC, AC, or combination signals
  • Maximum switching voltage: 30V
  • Maximum RF power: 10W
  • Maximum switching current per channel: 0.5A
  • Maximum carry current per channel: 0.5A
  • Power consumption: 3.96W at 3.3V, 0.2W at 12V
Environmental Specifications
  • Operating temperature: 0°C to 55°C
  • Relative humidity: 5% to 95% (non-condensing)
  • Random vibration (operating/non-operating): 5 Hz to 500 Hz, 0.3 grms / 2.4 grms
