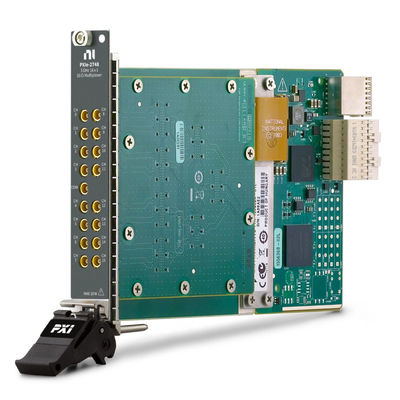

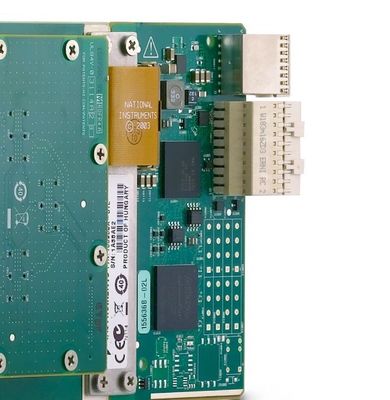

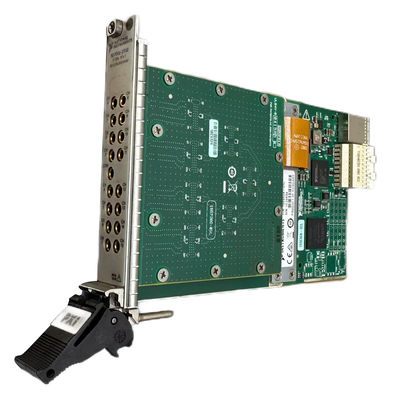

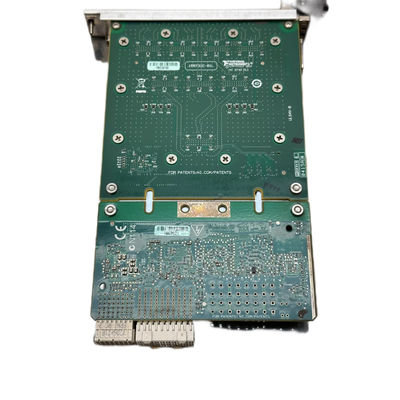

National Instruments PXIe-2748 RF Multiplexer Switch Module with 16x1 Configuration 3 GHz Switching Bandwidth and 50 Ohm Impedance

Large Image : National Instruments PXIe-2748 RF Multiplexer Switch Module with 16x1 Configuration 3 GHz Switching Bandwidth and 50 Ohm Impedance

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-2748

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXIe-2748 RF Multiplexer Switch Module with 16x1 Configuration 3 GHz Switching Bandwidth and 50 Ohm Impedance

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-2748
Highlight:	National Instruments PXIe-2748 , 3GHz Bandwidth PXIe-2748 , PXIe-2748 RF Multiplexer Switch Module

National Instruments PXIe-2748 RF Multiplexer Switch Module Customized for OEM Requirements

The National Instruments PXIe-2748 PXI RF Multiplexer Switch Module (Part Number: 780587-48) is a 16x1 PXI RF multiplexer switch module designed for switching RF signals up to 3 GHz in production test applications. With its high channel count, this module is ideal for test systems requiring switching between multiple RF signals, such as routing multiple devices under test to a single channel of an RF analyzer.

The PXIe-2748 features onboard relay counting for monitoring relay usage and is particularly suited for applications requiring connection of measurement or signal generation instruments to test points on devices under test (DUTs or UUTs).

Key Features

16x1 PXI RF multiplexer configuration
3 GHz switching bandwidth
50 Ω characteristic impedance
Maximum insertion loss of 3 dB
Onboard relay counting functionality
Supports DC, AC RMS, or combination inputs
PXI Express bus connector
Electromagnetic relay type

Technical Specifications

Parameter	Value
Maximum Switching Voltage	30 V
Maximum RF Power	10 W
Maximum Switching Current	0.5 A
Maximum Carry Current per Channel	0.5 A
Power Requirements (3.3V)	3.96 W
Power Requirements (12V)	0.2 W
Operating Temperature Range	-40°C to 70°C
Storage Temperature Range	-40°C to 70°C
Relative Humidity Range	5% to 95% (non-condensing)
Dimensions	8.5" × 0.8" × 5.1"
Weight	11.30 oz

Vibration Specifications

Operational/Non-operational random vibration: 5 Hz to 500 Hz at 0.3 grms
Operational/Non-operational random vibration: 5 Hz to 500 Hz at 2.4 grms
