PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution

PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution
PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution

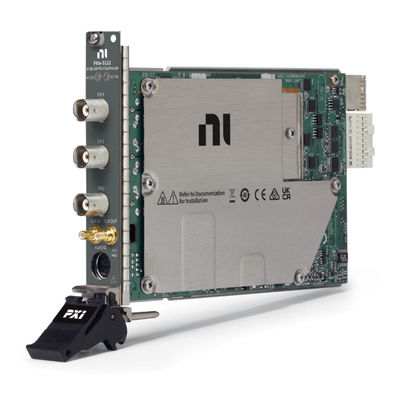

Large Image :  PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-5122
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXIe-5122
Highlight:

PXIe-5122 High Speed Digitizer

,

PXIe-5122 National Instruments

,

100MHz Bandwidth High Speed Digitizer

National Instruments PXIe-5122 High-Speed Digitizer with Customized OEM Assistance
The National Instruments PXIe-5122 High-Speed Digitizer (Part Numbers: 779967-01, 779967-02, and 779967-03) features advanced SMC engineering with flexible memory options ranging from 8 to 512 MB per channel (4 to 256 million 14-bit samples per channel). Designed for demanding applications including RADAR, ultrasound, and event recognition, this digitizer captures over 1 million triggered waveforms without software intervention in multiple-record acquisition mode.
Key Features
  • 100-MHz, 100 Msamples/sec, 14-bit digitizer in PXI format
  • Two simultaneously sampled channels at 14-bit resolution
  • 100 Msamples/sec real-time and 2.0 Gsamples/sec random interleaved sampling
  • 100 MHz bandwidth with 50 ohm or 1 Mohm input impedance (software selectable)
  • Input range from 200mV to 20V with 75 dBc SFDR and 62 dB SINAD
  • Memory options: 8, 32, or 256 MB per channel
  • Advanced triggering options with 100 ps timestamping
  • Includes IVI-compliant NI-SCOPE driver software with 50+ built-in measurement functions
Technical Specifications
Bus Connector PXI Express
Analog Input Impedance 1 MΩ, 50 ohms
Maximum Bandwidth 100 MHz
Maximum Sampling Rate 100 MS/s
Analog Input Voltage Range -10 V to 10 V
Analog Input Resolution 14 bits
Number of Channels 2
Compatible Operating Systems Windows 2000/XP
Applications
Ideal for automotive testing, communications research, scientific measurement, military/avionics systems, and consumer electronics development. The NI PXIe-5122 is particularly suited for applications requiring high-speed data acquisition with precise timing.
Product Images

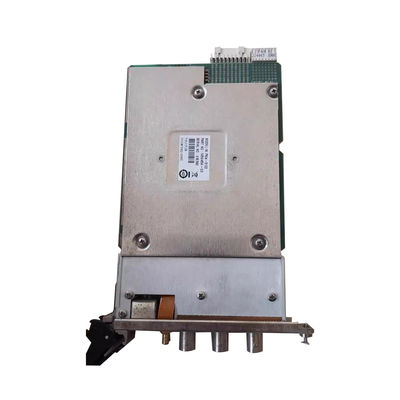

PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution 0

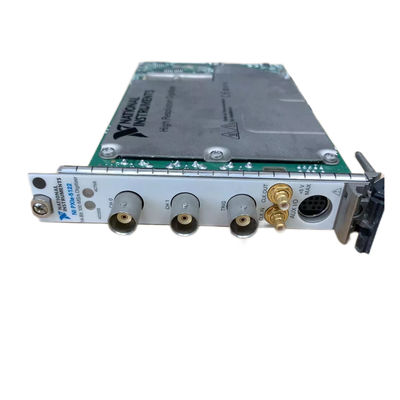

PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution 1

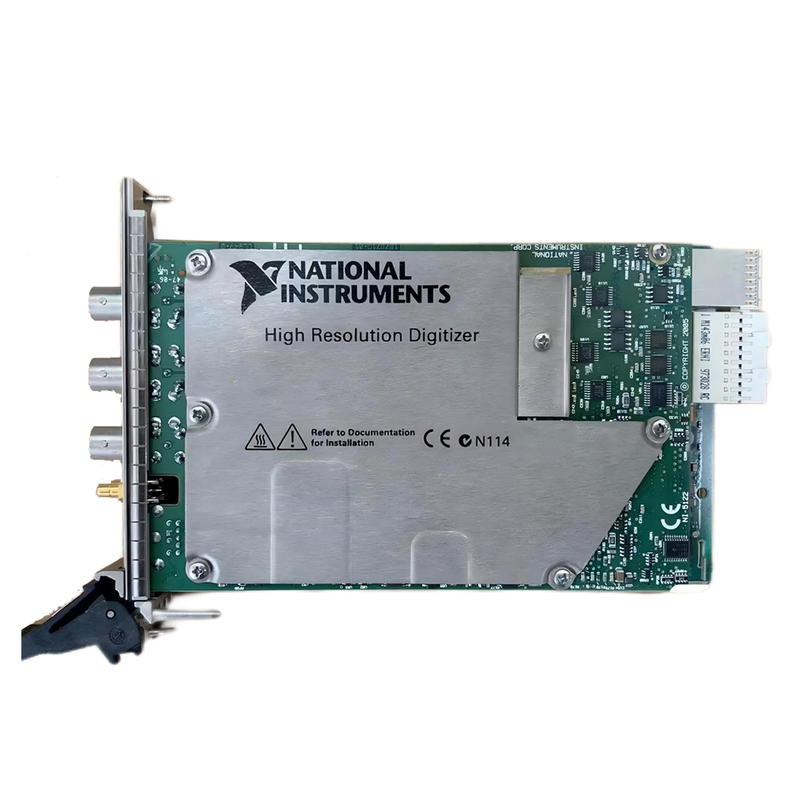

PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution 2
