PXIe-5413 PXI Waveform Generator 20MHz Bandwidth 16 Bit Resolution Pxi Signal Generator

PXIe-5413 PXI Waveform Generator 20MHz Bandwidth 16 Bit Resolution Pxi Signal Generator

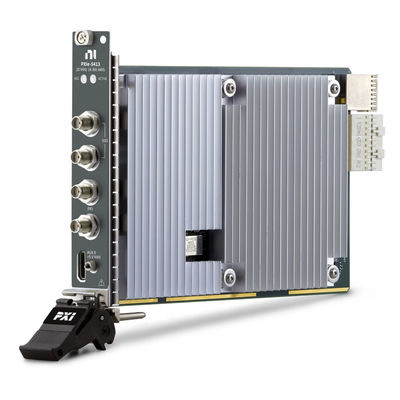

PXIe-5413 PXI Waveform Generator 20MHz Bandwidth 16 Bit Resolution Pxi Signal Generator PXIe-5413 PXI Waveform Generator 20MHz Bandwidth 16 Bit Resolution Pxi Signal Generator

Large Image :  PXIe-5413 PXI Waveform Generator 20MHz Bandwidth 16 Bit Resolution Pxi Signal Generator

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-5413
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

PXIe-5413 PXI Waveform Generator 20MHz Bandwidth 16 Bit Resolution Pxi Signal Generator

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXIe-5413
Highlight:

PXIe-5413 PXI Waveform Generator

,

PXIe-5413 Pxi Signal Generator

,

20MHz Bandwidth PXI Waveform Generator

National Instruments PXIe-5413 PXI Waveform Generator
The National Instruments PXIe-5413 (Part Numbers: 784181-01 and 785114-01) waveform generator enables users to create user-defined arbitrary waveforms. Using fractional resampling methods, the PXIe-5413 can accurately generate waveforms either from data sequences or through continuous streaming between host and peer instruments within a PXI system.
Key Features: PXIe, 20 MHz bandwidth, 1 or 2 channels, 16-bit PXI waveform generator

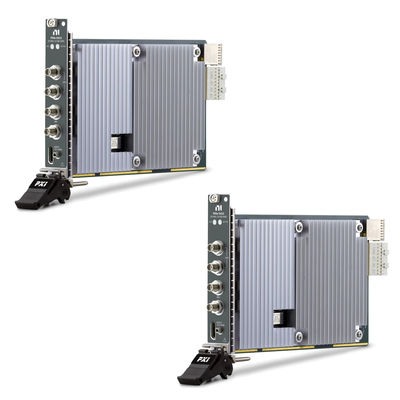

PXIe-5413 PXI Waveform Generator 20MHz Bandwidth 16 Bit Resolution Pxi Signal Generator 0
Performance Specifications
  • Frequency support up to 20 MHz
  • Step response rise time: 14.8 ns
  • Arbitrary waveform size: 2 samples to 64,000,000 samples
  • Sample rates: 5.6 µS/s to 200 MS/s (with digital filter), 3.125 MS/s to 200 MS/s (without digital filter)
  • Frequency step: 2.84 µHz with 8,192 waveform points
Technical Specifications
Parameter Value
Reference clock frequency 100 MHz (±25 ppm)
Sampling clock frequency 800 MHz
PFI I/O frequency range 0 MHz to 25 MHz
Maximum input voltage +5 V
Operating shock 30 g peak, half sine, 11 ms pulse
Operating random vibration 5 Hz to 500 Hz, 0.3 grms
Non-operating random vibration 5 Hz to 500 Hz, 2.4 grms
Functional Capabilities
Feature Specification
Arbitrary waveform support Yes
Maximum bandwidth 20 MHz
Digital upconversion support No
Analog output voltage range -12 V to +12 V
Analog output resolution 16-bit
RF signal generation No
Maximum update rate 800 MS/s
Script support No
Bus connector PXI Express
With its advanced synchronization options, the NI PXIe-5413 is ideal for testing applications in semiconductor devices, consumer electronics, automotive, and aerospace/defense industries.
