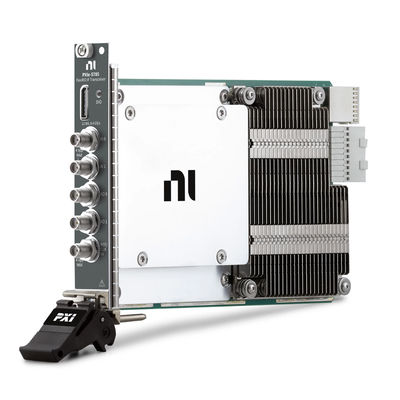

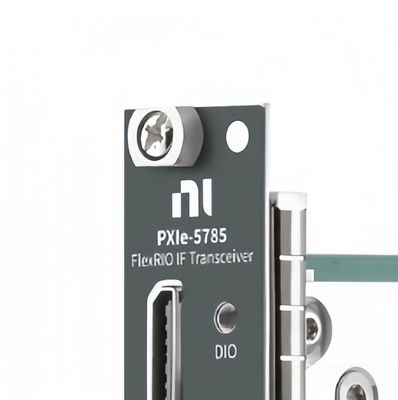

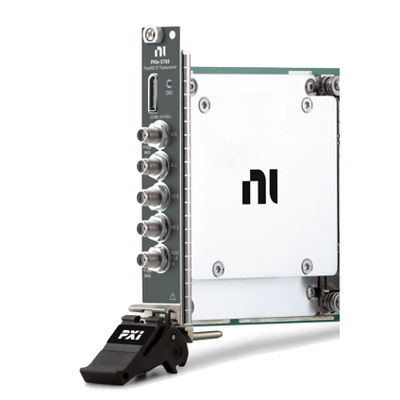

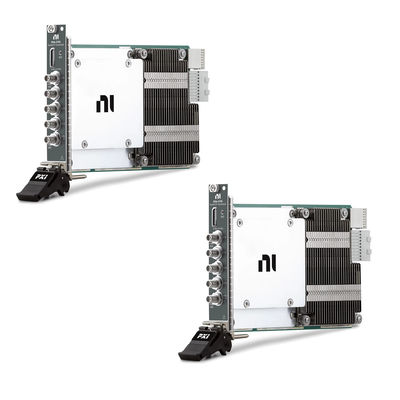

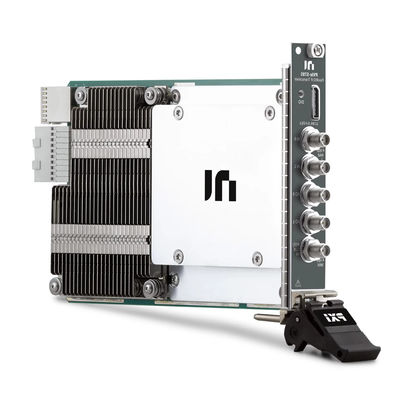

PXIe-5785 PXI FlexRIO Transceiver 6.4GS/S Sampling 12 Bit Resolution High Performance

PXIe-5785 PXI FlexRIO Transceiver 6.4GS/S Sampling 12 Bit Resolution High Performance
PXIe-5785 PXI FlexRIO Transceiver 6.4GS/S Sampling 12 Bit Resolution High Performance PXIe-5785 PXI FlexRIO Transceiver 6.4GS/S Sampling 12 Bit Resolution High Performance PXIe-5785 PXI FlexRIO Transceiver 6.4GS/S Sampling 12 Bit Resolution High Performance PXIe-5785 PXI FlexRIO Transceiver 6.4GS/S Sampling 12 Bit Resolution High Performance PXIe-5785 PXI FlexRIO Transceiver 6.4GS/S Sampling 12 Bit Resolution High Performance

Large Image :  PXIe-5785 PXI FlexRIO Transceiver 6.4GS/S Sampling 12 Bit Resolution High Performance

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-5785
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

PXIe-5785 PXI FlexRIO Transceiver 6.4GS/S Sampling 12 Bit Resolution High Performance

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXIe-5785
Highlight:

PXIe-5785 PXI FlexRIO Transceiver

,

High Performance PXIe-5785 FlexRIO Transceiver

,

High Performance PXI FlexRIO Transceiver

National Instruments PXIe-5785 PXI FlexRIO Transceiver
High-Performance FPGA-Enabled Transceiver for Advanced Radar Applications
Product Name National Instruments PXIe-5785 PXI FlexRIO IF Transceiver
Part Numbers 785584-01, 785584-02, 785585-02, 785585-01, 785586-02, 785586-01
The National Instruments PXIe-5785 FlexRIO FPGA-Enabled Transceiver accelerates development cycles for cutting-edge radar applications in aviation and defense. This high-performance transceiver provides engineers with direct RF conversion capabilities in a flexible form factor, significantly reducing development time.
Key Features
  • High-speed converters sampling up to 6.4 GS/s with 12-bit resolution
  • Enables direct RF sampling to simplify high-channel-count systems
  • Ideal for advanced phased array radar systems with hundreds of antenna elements
  • Eight digital I/O single-ended channels with individual direction control
  • Two single-ended analog input channels
  • Full-scale input range of 1.25 V pk-pk (5.92 dBm) at 10 MHz
  • Multiple FPGA options including Kintex UltraScale KU035, KU040, and KU060 variants
Technical Advantages
The PXIe-5785's advanced capabilities are critical for modern radar systems where increased RF bandwidth translates to better spatial resolution, reduced false detections, and enhanced electronic protection strategies. Its PXI platform integration allows for easier system synchronization compared to custom-built solutions or alternative form factors like VPX.
PXIe-5785 PXI FlexRIO Transceiver 6.4GS/S Sampling 12 Bit Resolution High Performance 0
FPGA Configuration Options
FPGA Type Part Numbers
Kintex UltraScale KU035 785584-01 and 785584-02 (with filter)
Kintex UltraScale KU040 785585-01 and 785585-02 (with filter)
Kintex UltraScale KU060 785586-01 and 785586-02 (with filter)
