PXIe-7890 Multifunction IO Module Electronic Test Instruments OEM Supported For HIL Applications

PXIe-7890 Multifunction IO Module Electronic Test Instruments OEM Supported For HIL Applications
PXIe-7890 Multifunction IO Module Electronic Test Instruments OEM Supported For HIL Applications PXIe-7890 Multifunction IO Module Electronic Test Instruments OEM Supported For HIL Applications PXIe-7890 Multifunction IO Module Electronic Test Instruments OEM Supported For HIL Applications PXIe-7890 Multifunction IO Module Electronic Test Instruments OEM Supported For HIL Applications PXIe-7890 Multifunction IO Module Electronic Test Instruments OEM Supported For HIL Applications

Large Image :  PXIe-7890 Multifunction IO Module Electronic Test Instruments OEM Supported For HIL Applications

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-7890
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

PXIe-7890 Multifunction IO Module Electronic Test Instruments OEM Supported For HIL Applications

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXIe-7890
Highlight:

PXIe-7890 Multifunction IO Module

,

PXIe-7890 Electronic Test Instruments

,

Multifunction IO Module

OEM Supported National Instruments PXIe-7890 PXI Multifunction I/O Module
PXIe-7890 Multifunction IO Module Electronic Test Instruments OEM Supported For HIL Applications 0

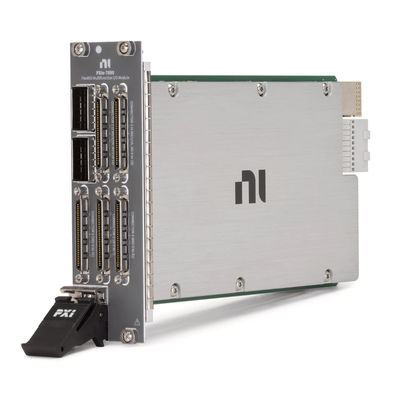

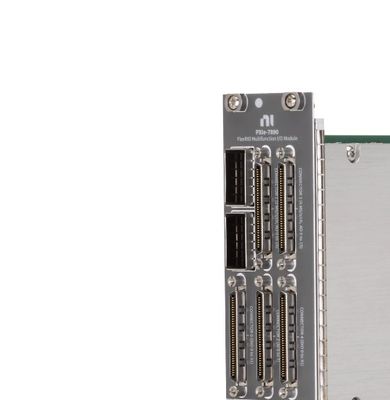

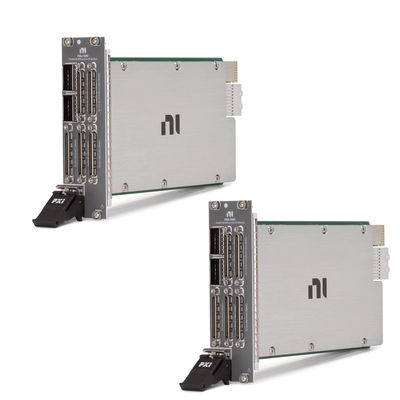

The National Instruments PXIe-7890 (Part Number: 787713-01) is a powerful FlexRIO multifunction I/O module designed for hardware-in-the-loop (HIL) applications. This module offers flexible connectivity with two SFF-8436 compliant QSFP connectors on the front panel for high-speed serial interfaces.
Key Features
  • Five 68-pin VHDCI connectors for digital I/O, analog input, analog output, and low-latency analog output functions
  • Equipped with Kintex Ultrascale FPGA (KU060) for customizable test and measurement applications
  • 64-pin digital I/O supporting multiple functions including transmitter inverted data input, receiver inverted data output, low-power mode, and +3.3V power connection
  • Compatible with NI Measurement & Automation Explorer (MAX) and NI FlexRIO drivers
  • Supports LabVIEW and LabWindows development environments
Applications
The PXIe-7890 combines analog input, digital I/O, and low-latency analog output with FPGA technology to support various traction motor models. It's an essential tool for comprehensive testing and real-world simulation reproduction, enabling validation and verification of electronic control unit functionality.
Installation & Operation

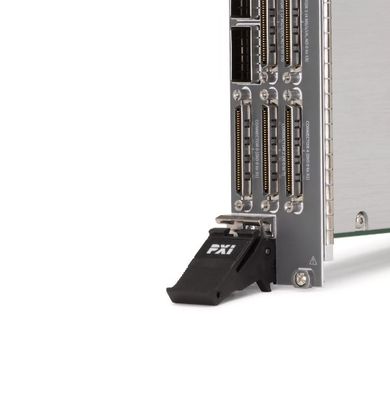

The module easily installs in compatible chassis and is secured with front panel mounting screws. Tightening the top and bottom mounting screws enhances mechanical stability, improving electromagnetic performance and signal quality.
Environmental Specifications
Parameter Operating Conditions Storage Conditions
Temperature 0°C to 55°C -40°C to 71°C
Humidity 10% to 90% (non-condensing) 5% to 95%
FPGA PXI FlexRIO Multifunction I/O Module
The PXIe-7890 handles signal-level inverter hardware-in-the-loop (HIL) applications by combining analog input (AI), low-latency analog output (AO), digital input/output (DIO), Kintex Ultrascale FPGA, and high-speed serial ports to support multiple traction motor models.
