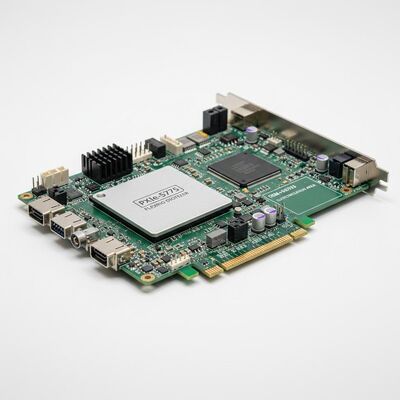

National Instruments PXIe-5775 PXI FlexRIO Digitizer with 6.4 GS/s Sampling Rate 12-bit ADC Resolution and OEM Customization

National Instruments PXIe-5775 PXI FlexRIO Digitizer with 6.4 GS/s Sampling Rate 12-bit ADC Resolution and OEM Customization
National Instruments PXIe-5775 PXI FlexRIO Digitizer with 6.4 GS/s Sampling Rate 12-bit ADC Resolution and OEM Customization National Instruments PXIe-5775 PXI FlexRIO Digitizer with 6.4 GS/s Sampling Rate 12-bit ADC Resolution and OEM Customization National Instruments PXIe-5775 PXI FlexRIO Digitizer with 6.4 GS/s Sampling Rate 12-bit ADC Resolution and OEM Customization National Instruments PXIe-5775 PXI FlexRIO Digitizer with 6.4 GS/s Sampling Rate 12-bit ADC Resolution and OEM Customization National Instruments PXIe-5775 PXI FlexRIO Digitizer with 6.4 GS/s Sampling Rate 12-bit ADC Resolution and OEM Customization

Large Image :  National Instruments PXIe-5775 PXI FlexRIO Digitizer with 6.4 GS/s Sampling Rate 12-bit ADC Resolution and OEM Customization

Product Details:
Place of Origin: Germany
Brand Name: National Instruments
Model Number: PXIe-5775
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $700/ Set
Delivery Time: 15
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Contact Now Chat Now

National Instruments PXIe-5775 PXI FlexRIO Digitizer with 6.4 GS/s Sampling Rate 12-bit ADC Resolution and OEM Customization

Description
Highlight:

PXI FlexRIO digitizer 6.4 GS/s

,

12-bit ADC resolution digitizer

,

OEM customizable PXIe test instrument

National Instruments PXIe-5775 PXI FlexRIO Digitizer with OEM Customization Support

The PXIe-5775 is a high-performance PXI FlexRIO Digitizer from National Instruments (NI), designed for applications requiring exceptional bandwidth and precision. This versatile instrument supports OEM customization to meet specific application requirements.

Product Overview

The NI PXIe-5775 is available in three distinct part numbers, each featuring different FPGA configurations while maintaining identical technical parameters and performance characteristics:

  • 785590-01: KU035 FPGA
  • 785591-01: KU040 FPGA
  • 785592-01: KU060 FPGA

Programming flexibility is provided through FlexRIO driver software or NI LabVIEW design libraries, making the PXIe-5775 ideal for demanding applications such as radar prototyping and Light Detection and Ranging (LIDAR).

Key Specifications
Parameter Specification
Analog Input Channels 2 single-ended voltage inputs with SMA connectors
ADC Resolution 12-bit
Sampling Rate (Single Channel) 6.4 GS/s
Sampling Rate (Dual Channel) 3.2 GS/s per channel
Digital I/O Channels 8 single-ended with individual direction control
Digital I/O Interface 5V Molex™ Nano-Pitch I/O™ connectors (500 Mbps to 16.375 Gbps)
Analog Input Bandwidth 6 GHz
Input Coupling AC
Input Voltage Range 1.25 Vpp
Form Factor PCI Express Gen-3 x8
Power Consumption 58 W
Operating Temperature 0°C to 55°C
Performance Features
  • 6 GHz AC coupled analog bandwidth with 12-bit resolution
  • Flexible operation modes: dual-channel at 3.2 GS/s or single-channel interleaved at 6.4 GS/s
  • High-speed digital I/O interface supporting data rates from 500 Mbps to 16.375 Gbps
  • Comprehensive programming support via FlexRIO drivers and LabVIEW
Product Images

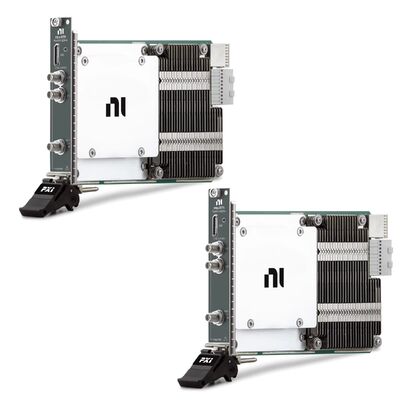

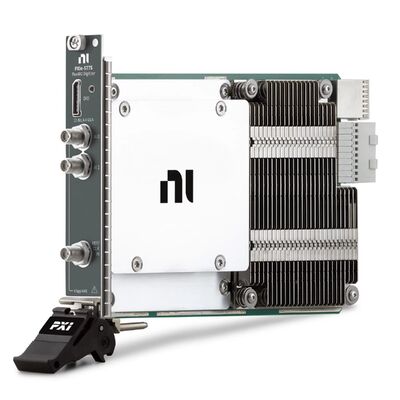

National Instruments PXIe-5775 PXI FlexRIO Digitizer front panel view National Instruments PXIe-5775 PXI FlexRIO Digitizer rear connectors and interfaces
